Axial 1/24 AX24 XC-1 4WS Crawler Brushed RTR

Axial 1/24 AX24 XC-1 4WS Crawler Brushed RTR

Available Inventory
Regular price $349.99 CAD
Regular price Sale price $349.99 CAD
Sale Sold out
Color: Green
Scale

Item NO.  AXI00003T1/T2



Push past boundaries and conquer more trails with the Axial AX24 XC-1 Rock Crawler RTR. Unique 4WS modes, extreme articulation, oversize tires, and more let you crawl over bigger obstacles and pull tougher lines than any other 1/24 scale rig.





Features

  • Three 4-wheel steering (4WS) modes give drivers new terrain conquering ability.
  • Side plate chassis allows greater articulation for improved handling over rough terrain.
  • LED rock lights mounted in the rock sliders keep your path visible in low light.
  • Long travel coilover shocks keep wheels on the ground to maximize traction.
  • 4-Link front and rear suspension reduces axle steer and torque twist.
  • Front and rear lockers with worm gear setup increase ground clearance.
  • Steel front and rear axles, stub axles, and dog bones provide strength.
  • Splined and sleeved drive shafts increase suspension travel.
  • Hinged body system offers easy access to on-board components.
  • Rockster wheels and Rock Lizards tires produce trail-taming traction.
  • No bushings — entire vehicle features sealed bearings.
  • Dynamite 88T motor provides the torque to conquer steep climbs.
  • Fully equipped — you can hit the trails almost immediately!





FOUR-WHEEL STEERING (4WS)

The unique AX24 4-wheel steering system gives all drivers new terrain conquering ability. Three transmitter-activated modes — no rear tire input, mirrored rear tire input, and "crab crawl" — provide the flexibility you need to maneuver over or around anything in your way.




SIDE PLATE CHASSIS

The durable side plate chassis is engineered to allow high clearance and generous articulation. Angled rock sliders also help you maneuver past rocks, roots, ledges, and other large obstacles. Driving the AX24 XC-1, you go where you want to go!




LED LIGHTS

LED rock lights mounted in the rock sliders keep your path visible in low light. You'll be able to see and surmount obstacles you might not otherwise spot. Day or night, the AX24 XC-1 keeps your adventure alive.




COILOVER SHOCK ABSORBERS

Longer, 51mm coilover shocks are new for the AX24 platform. Mounted at a lay back angle in the side plate chassis, they allow increased articulation to keep the wheels on the ground and maximizing traction over uneven surfaces.




4-LINK FRONT AND REAR SUSPENSION

The suspension geometry uses a 4-link design that works together with the AX24 side plate chassis to increase articulation and reduce axle steer and torque twist.




WORM GEARS

The front and rear axle housings each have a worm screw and worm gear setup to get power to the axles and create higher ground clearance.




DURABLE STEEL AXLES

Steel front and rear axles, stub axles and dog bones provide the strength and durability needed to keep running with confidence during tough climbs and over rough trails.

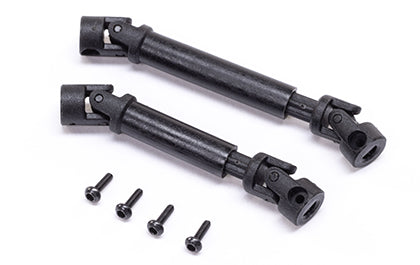

SPLINED DRIVE SHAFTS

The drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.




HINGED BODY SYSTEM

The hinged body system provides fast, easy access to on-board components. Its hook-and-loop hinge design lets you reach the chassis and battery simply by swinging the body up.




ROCKSTER WHEELS & ROCK LIZARDS TIRES

In 2007, the 1/10 scale Axial AX10 platform revolutionized RC crawling. The 1/24 scale AX24 XC-1 pays homage to that groundbreaking rig with a replica body and livery, plus 1.0" Rockster wheels and 2.44" Rock Lizards tires for nostalgic looks and trail-taming traction.




FULL BALL BEARINGS

Although the AX24 is smaller than many other Axial RC crawlers, it still measures up to our highest quality standards. For example, you'll find no bushings here. The drivetrain spins freely on sealed bearings throughout the entire vehicle.




AXIAL AS-1 SERVOS

Axial AS-1 servos are mounted just above the axle, with servo savers that allow for steering accuracy while protecting the servo gears in the event of a bind or impact.




DYNAMITE 88T BRUSHED MOTOR

The Dynamite 88T brushed electric motor provides the right amount of torque to conquer steep climbs. It's mated to a stamped aluminum motor mount to keep flex to a minimum and protect the gears.




IMPROVED SPEKTRUM SLT3 TRANSMITTER WITH 2-IN-1 SYSTEM

The included Spektrum SLT3 transmitter is ergonomically designed for fatigue-free driving and has a foam wheel for precise fingertip control. Paired with a Spektrum 2-in-1 ESC/Receiver, its 2.4GHz signal lets you crawl in the company of multiple other rigs without worrying about interference. A new throttle port serves as an ESC bypass for using aftermarket ESCs without having to buy a new receiver.



Product Details

In The Box
  • (1) Axial AX24 XC-1 1/24 Scale 4WS RTR Rock Crawler
  • (1) Spektrum SLT3 2.4GHz 3-Channel Radio System
  • (2) Axial AS-1 Servo
  • (1) Spektrum 2-in-1 ESC/Receiver Combo
  • (1) 0.5 Amp USB Charger
  • (1) Dynamite 88T Brushed Electric Motor
  • (1) Dynamite 350mAh 2S 7.4V LiPo
  • (4) AA Transmitter Batteries
  • (1) Miscellaneous Tools
  • (1) 1/24 AX24 XC-1 4WS Manual
Needed to Complete
  • Nothing! Everything you need to begin having fun with the 1/24 AX24 XC-1 4WS Crawler is included!
