Castle Creations

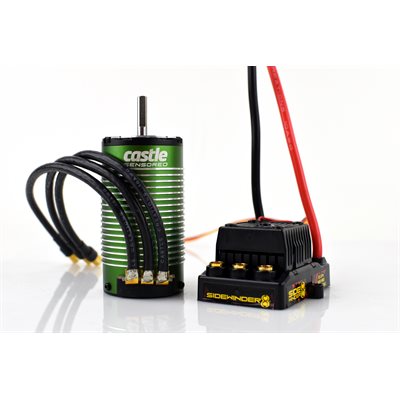

Castle - Sidewinder 8th ESC 2200KV Combo V2

Castle - Sidewinder 8th ESC 2200KV Combo V2

Available Inventory
$339.99 CAD
$339.99 CAD
Sale Sold out

 Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

ESC Features:

  • 2s - 6s LiPo (25.2V) use in vehicles up 11.lbs with battery, ready-to-run.
  • Smooth sensorless motor operation with included 1515-2200kv sensored** brushless motor
  • Large 6.5mm female motor bullet connectors (male connectors sold separately)
  • Waterproof design ESC and splash resistant 30MM fan*
  • Powerful 5.5 volts fixed, 8 amps Peak BEC
  • LED error codes for common error conditions
  • Convenient transmitter programming for nine common adjustable settings
  • Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
  • Proudly Designed, Assembled and Supported in Olathe, KS USA
  • Backed by Castle Creations' 1 YR WARRANTY

1515-2200Kv V2 Features:
  • Input Voltage range: 2s-6s LiPo
  • Redesigned stator and rotor resulting in improved magnetic flux.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note below)
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.
  • Backed by Castle Creations' 1-YEAR WARRANTY

Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.

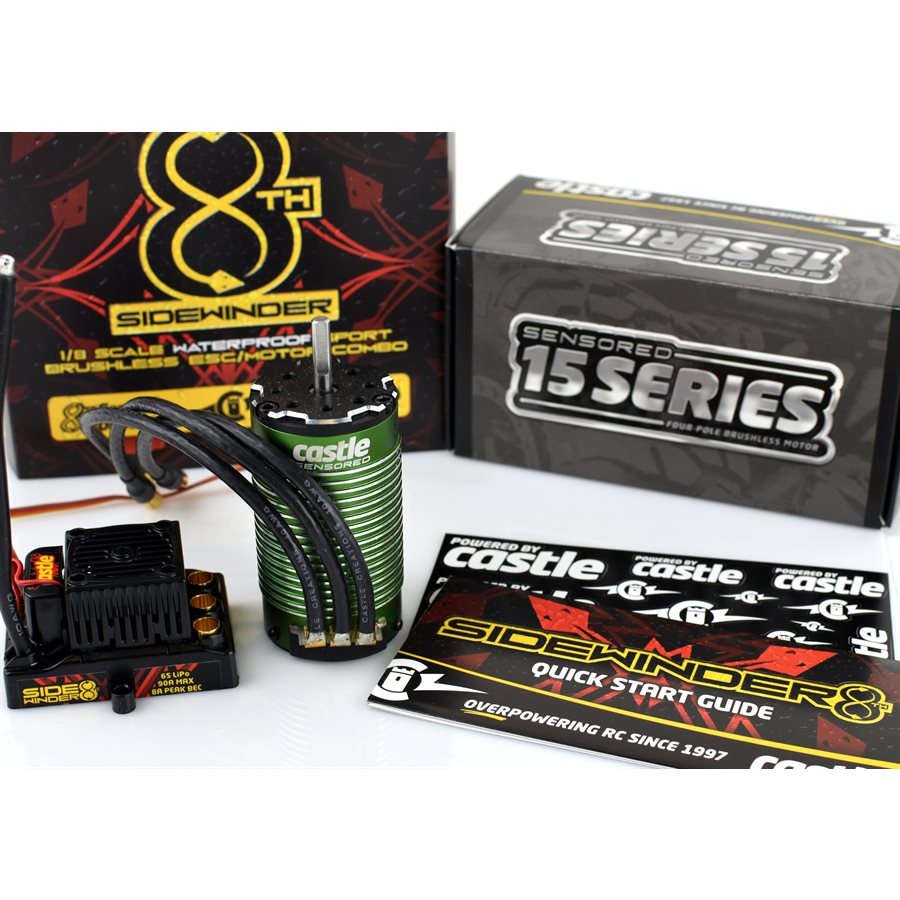

Sidewinder 8 Combo includes:

  • Sidewinder 8th ESC
  • Castle 1515-2200Kv V2 brushless sensored* motor
  • Drivers Ed and Quick Start Guide
  • Castle decal sheet
View full details
