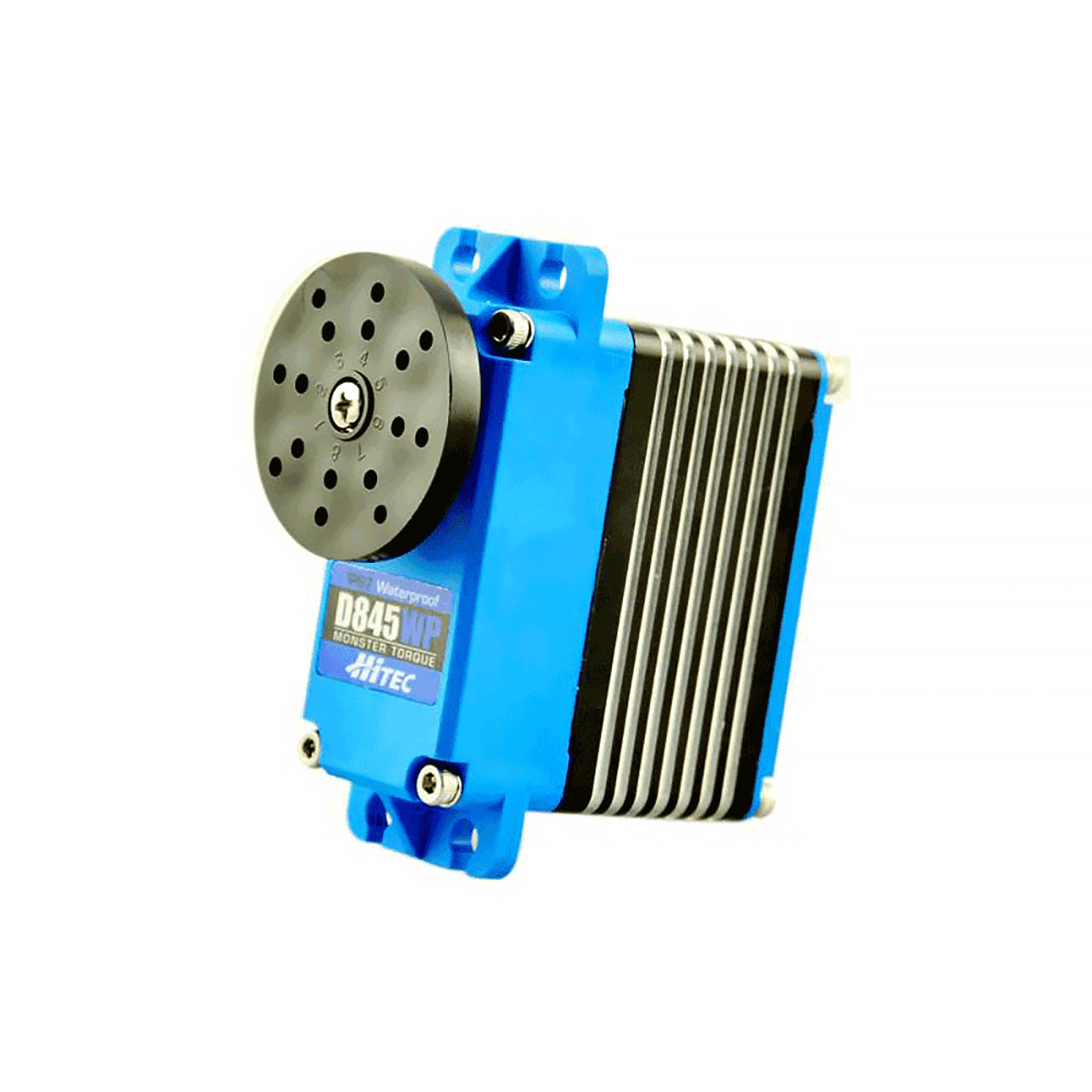

Hitec D845WP Waterproof Steel Gear 15T Digital 1/5 Scale Servo

The D845WP servo is a IP-67 rated servo capable of being truly waterproof, dust resistant, and ready for 1/5^th-scale On-Road Cars, Off-Road Buggies and Trucks. As with our entire “D” line, this technologically-advanced servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D845WP produces the mighty torque and reliability required to take bashers to the next level.

Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 15-Tooth 8mm Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• IPD 67 Rated Water Resistant and Waterproof Proof Case

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Accessories:

• Steel Gear Set
• Metal / Plastic 1st Gear Set

• Plastic / Aluminum Case Set


Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°): 0.26 ~ 0.21 ~ 0.17
Maximum Torque Range oz. / in.: 454 ~ 566 ~ 698
Maximum Torque Range kg. / cm.: 32.5 ~ 40.5 ~ 50.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 1,600 mA
Stall Current Draw: 10,000 mA
Dead Band Width: 2 µs

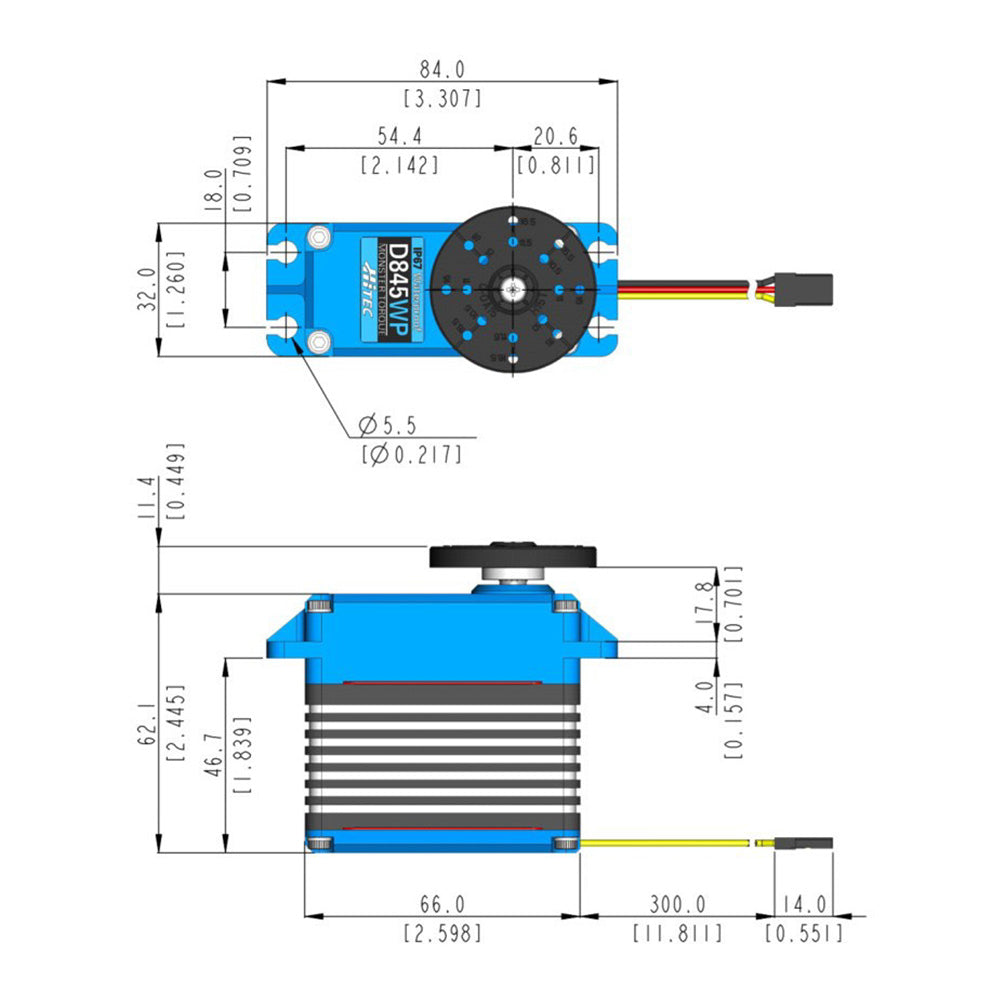

Dimensions (Inches): 2.59 x 1.26 x 2.44
Dimensions (Metric): 66.0 x 32.0 x 62.0
Weight (Ounces): 8.0
Weight (Gram): 227.0
Circuit Type: 32bit Programable Digital
Motor Type: 5 Poles Cored Metal Brush
Gear Material: Steel
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): 15T 8mm
Case Material: Plastic / Aluminum
Dust / Water Resistance: IP 67
Connector Gauge (AWG) / Strand Count: 20 / 80
