Hitec

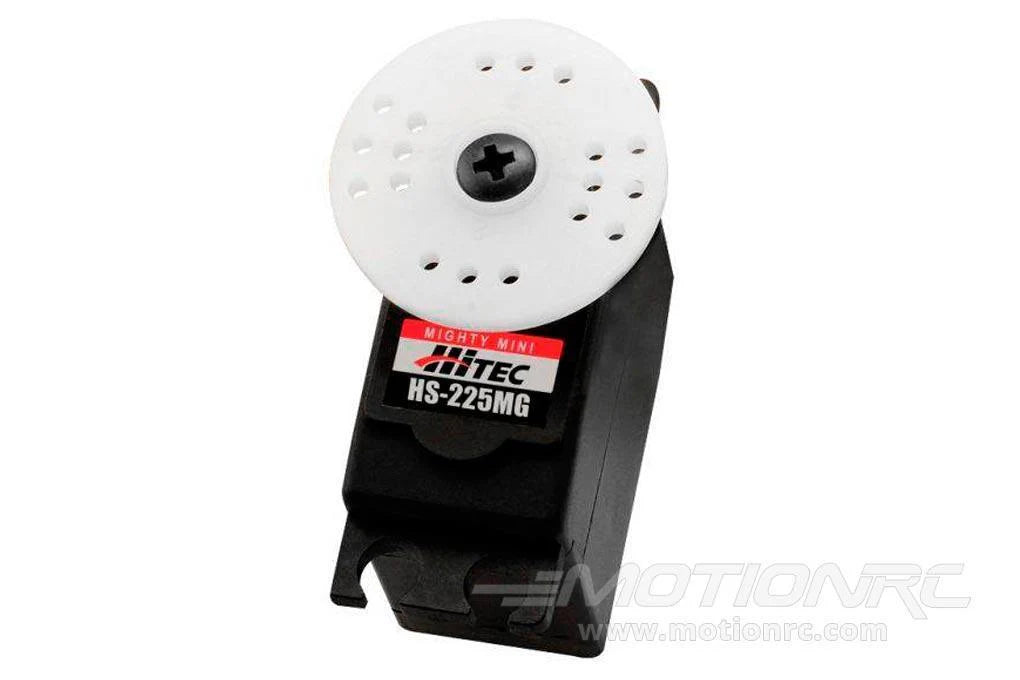

Hitec HS-225MG Ball Bearing Metal Gear Mighty Mini Servo

Hitec HS-225MG Ball Bearing Metal Gear Mighty Mini Servo

Available Inventory
$39.99 CAD
$39.99 CAD
Sale Sold out

Item No. HRC32225S

The analog HS-225 series represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servos such as a sailplane and other weight-sensitive applications, the HS-225MG high performance mini servo features a top ball bearing, metal gears and is built with state-of-the-art SMT technology.

Features:

  • Small, lightweight, high speed, and high torque servo
  • Top ball bearing
  • SMT technology
  • Indirect drive
  • Hybrid/ Circuit

Includes:

  • One Hitec HS-225MG ball bearing metal gear mighty mini servo with universal connector
  • 4x screws, grommets, and eyelets
  • 3x servo arms
  • 1x wheel

Product Specifications:

Servo Class

Mini

Servo Type

Analog

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V - 6V

Speed (4.8V)

0.14 sec @ 60 deg

Speed (6V)

0.11 sec @ 60 deg

Torque (4.8V)

3.9 kg/cm (54 oz/in)

Torque (6V)

4.8 kg/cm (67 oz/in)

Current Draw at Idle

8 mA

Current Draw Operating (No Load)

300 mA

Dimensions (L x W x H)

32.26 x 16.76 x 31mm

Weight

26.93g (0.95oz)

Lead Length

320mm
