Hitec

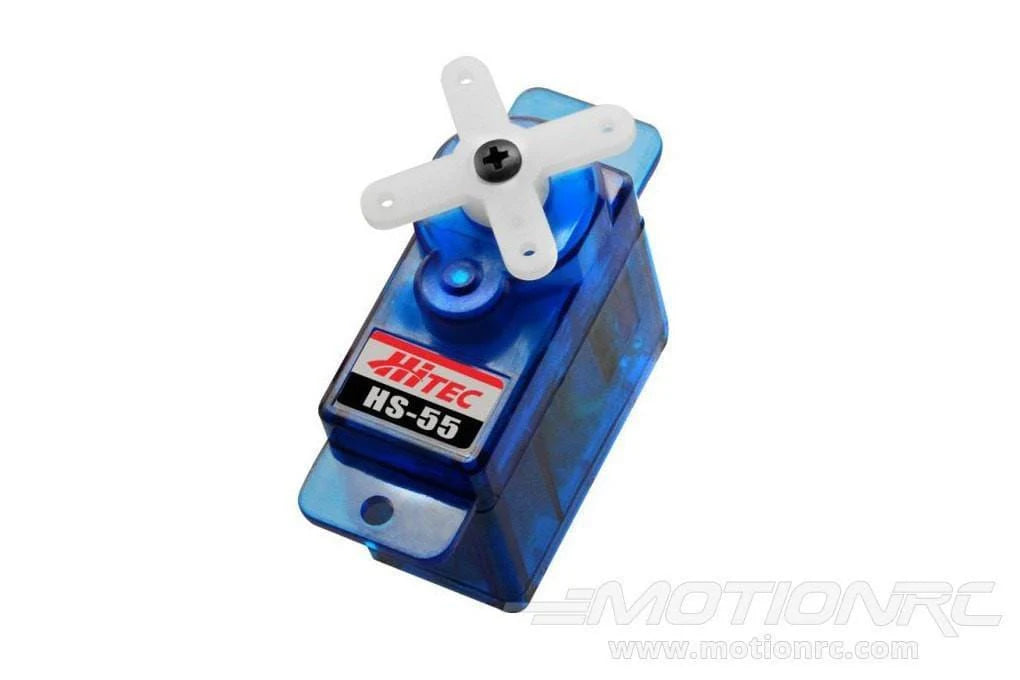

Hitec Ultra Micro Servo HS-55

Hitec Ultra Micro Servo HS-55

Available Inventory
$21.99 CAD
$21.99 CAD
Sale Sold out

Item No. HRC31055S

The Hitec HS-55 is a high quality low cost 9g "sized" analog servo. It is light weight and a good choice for most planes with 9g servos. The resin gear train is very reliable and the case is one of the slimmest available.  The servo features a universal connector which works with nearly all receivers. It will fit Futaba J, Hitec S, JR, and Airtronics Z-type Connectors. See specifications tab for full specs.

Features:

  • Resin gears
  • Light weight
  • Universal connector
  • Slim case
  • 10" wire length

Includes:

  • One HS-55 Servo w/pre-installed small X-shaped servo horn and screw
  • One very small straight servo horn
  • One M1.7x3 servo horn screw
  • One small straight servo horn
  • Two M1.7x7 servo mounting screws

Product Specifications:

Servo Class

9g

Servo Type

Analog

Gear Material

Plastic / Nylon

Direction

Standard / Normal

Operating Voltage Range

4.8V to 6V

Speed (4.8V)

0.18 sec @ 60 deg

Speed (6V)

0.14 sec @ 60 deg

Torque (4.8V)

1.2 kg/cm (16.66 oz/in)

Torque (6V)

1.5 kg/cm (20.83 oz/in)

Current Draw at Idle

5.5mA

Current Draw Operating (No Load)

180mA

Dimensions (L x W x H)

22.8 x 11.6 x 24mm

Weight

8g (.28oz)

Lead Length

160mm
