Hitec

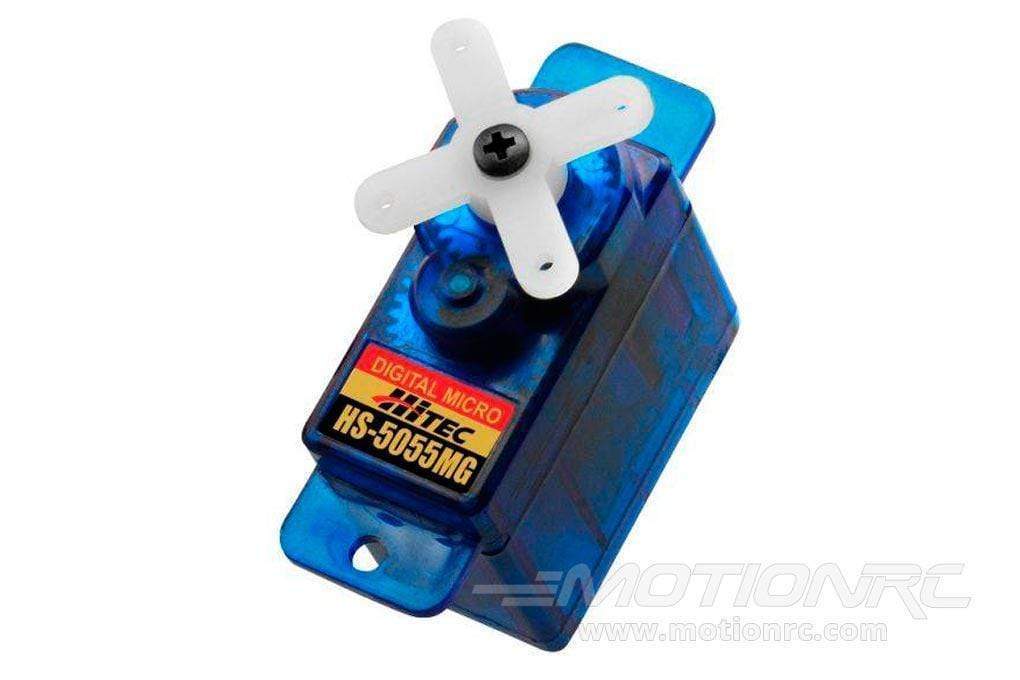

Hitec HS-5055MG 9g Digital Metal Gear Micro Servo

Hitec HS-5055MG 9g Digital Metal Gear Micro Servo

Available Inventory
Regular price $33.99 CAD
Regular price Sale price $33.99 CAD
Sale Sold out

Item No. HRC35055S





The Hitec HS-5055MG is a high quality low cost 9g "sized" digital servo with metal gears. It is light weight and a good choice for most planes with 9g servos. The Metal gear train is very reliable and the servo is digital for ultimate resolution. The servo features a universal connector which works with nearly all receivers. It will fit Futaba J, Hitec S, JR, and Airtronics Z-type Connectors. See specifications tab for full specs.

Features:

  • Metal gears
  • Light weight
  • Universal connector
  • Digital
  • Programmable

Includes:

  • One Hitec HS-5055MG Micro Digital Servo with preinstalled X-shaped servo horn and screw
  • One 28mm straight servo arm
  • One 31mm servo arm
  • One 54mm servo arm
  • One 1.6x3.75mm button head screw
  • Two 1.7x8mm flanged button head screws

Product Specifications:

Servo Class

Sub-Micro

Servo Type

Digital

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V to 6V

Speed (4.8V)

0.17 sec @ 60 deg

Speed (6V)

0.14 sec @ 60 deg

Torque (4.8V)

1.2 kg/cm (16.66 oz/in)

Torque (6V)

1.5 kg/cm (20.83 oz/in)

Current Draw at Idle

3mA

Current Draw Operating (No Load)

120mA

Dimensions (L x W x H)

22.6 x 11.4 x 23.8mm

Weight

9.36g (.33oz)

Lead Length

178mm
