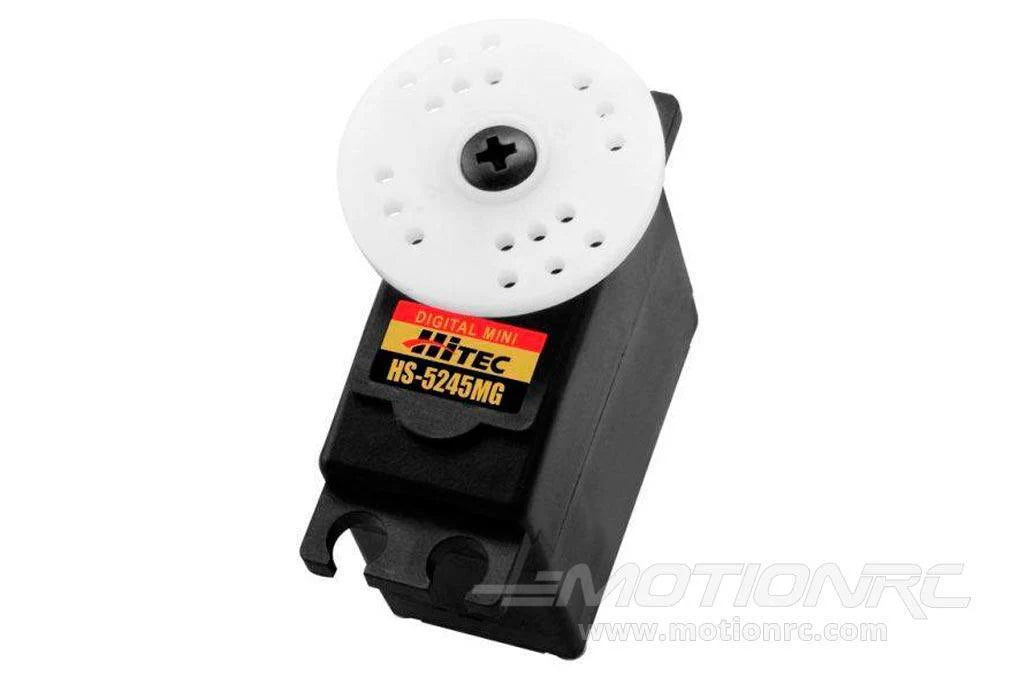

Hitec HS-5245MG Digital High Torque Ball Bearing Metal Gear Mini Servo

Hitec HS-5245MG Digital High Torque Ball Bearing Metal Gear Mini Servo

Available Inventory
$62.99 CAD
$62.99 CAD
Sale Sold out
 More payment options

Item No. HRC35245S

With a custom programmable digital circuit and Hitec's strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features:

  • Programmable digital circuit
  • Metal and M/P gear train technology
  • Indirect drive potentiometer for long life
  • Narrow dead band width and high standing torque

Includes:

  • 1x HS-5245MG digital high torque ball bearing metal gear mini servo
  • 4x rubber grommets
  • 4x eyelets
    1x star shaped one arm
  • 2x straight arm nylon servo horns
  • 1x aluminum servo horn

Tech Note: In order to program the Fail-Safe on this servo you will need to purchase the Hitec field programmer sold separately.


Product Specifications:

Servo Class

Mini

Servo Type

Digital

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V - 6V

Speed (4.8V)

0.15 sec @ 60 deg

Speed (6V)

0.12 sec @ 60 deg

Torque (4.8V)

4.4 kg/cm (61.10 oz/in)

Torque (6V)

5.5 kg/cm (76.37 oz/in)

Current Draw at Idle

3 mA

Current Draw Operating (No Load)

290 mA

Dimensions (L x W x H)

32.4 x 16.8 x 30.8mm

Weight

32g (1.12oz)

Lead Length

320
