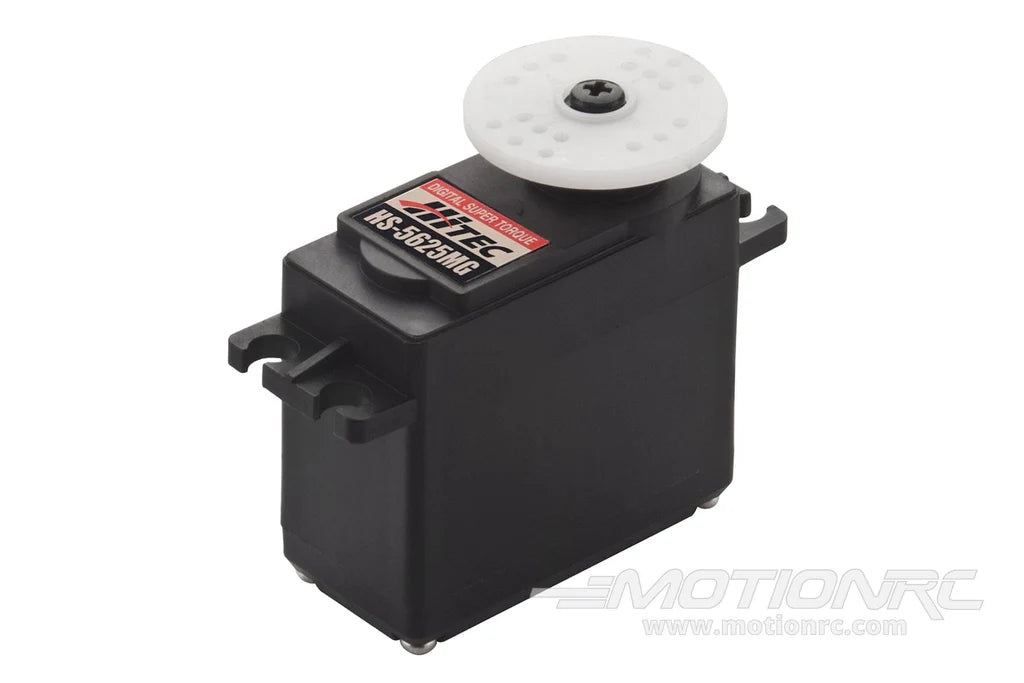

Hitec HS-5625MG High Speed Digital Metal Gear Sport Servo

Hitec HS-5625MG High Speed Digital Metal Gear Sport Servo

Available Inventory
$64.99 CAD
$64.99 CAD
Sale Sold out

Item No. HRC35625S

For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique metal gear train technology, this servo will deliver powerful high speed results!

Features:

  • Most Popular High Speed Standard Digital Servo
  • Strong Three-Pole Ferrite Motor
  • Metal Gear Train with MP Gear Technology
  • Dual Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit Provides Fine Resolution and Centering

Programmable Functions:

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Includes:

  • Hitec HS-5625MG High Speed Digital Metal Gear Sport Servo
  • Horns and mounting gear


Product Specifications:

Servo Class

Standard

Servo Type

Digital

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V to 6.0V

Speed (4.8V)

0.17 sec @ 60 deg

Speed (6V)

0.14 sec @ 60 deg

Torque (4.8V)

7.9 kg/cm (110 oz/in)

Torque (6V)

9.4 kg/cm (131 oz/in)

Current Draw at Idle

3mA

Current Draw Operating (No Load)

500mA

Dimensions (L x W x H)

40.6 x 19.8 x 37.8mm

Weight

60.0g/2.11oz.

Lead Length

330mm
