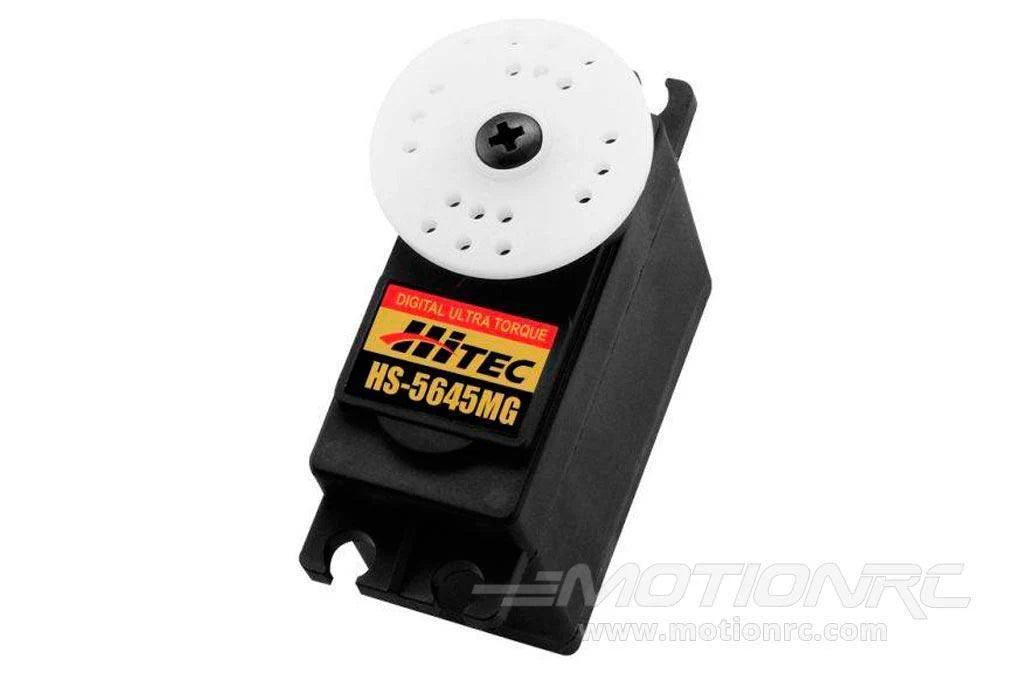

Hitec HS-5645MG Digital High Torque Ball Bearing Metal Gear Standard Servo

Item No. HRC35645S

The digital version of Hitec's popular 645 is the HS-5645MG, featuring a programmable digital circuit and their custom MP/metal gear train technology. Perfect for larger airplanes and heli’s, the HS-5645MG will deliver higher resolution and torque than its analog brother.

Features:

• EPA, speed, direction, and fail-safe programmable (see tech note)
• MOSFET amplifier
• Gold plated contacts
• Three metal gears
• Dual ball bearings
• Indirect drive long life potentiometer
• High standing torque
• Watertight and dustproof
• Works with fixed winged aircraft and helicopters up to 40 pounds

Includes:

• 1x HS-5645MG digital high torque ball bearing metal gear standard servo
• 1x white small X-shaped servo horn
• 1x red Large X-shaped servo horn
• 1x white adjustable servo horn
• 1x white off-set straight servo horn
• 1x white disc servo horn
• 1x blue aluminum, heat-treated servo arm horn
• 4x 2 x 14mm mounting screws
• 4x brass eyelets
• 4x black rubber vibration isolators

Tech Note: In order to program the Fail-Safe on this servo you will need to purchase the Hitec field programmer sold separately. The metal servo horn will fit any Hitec servos that have a "+" stamped on top of the output shaft.

Product Specifications:
