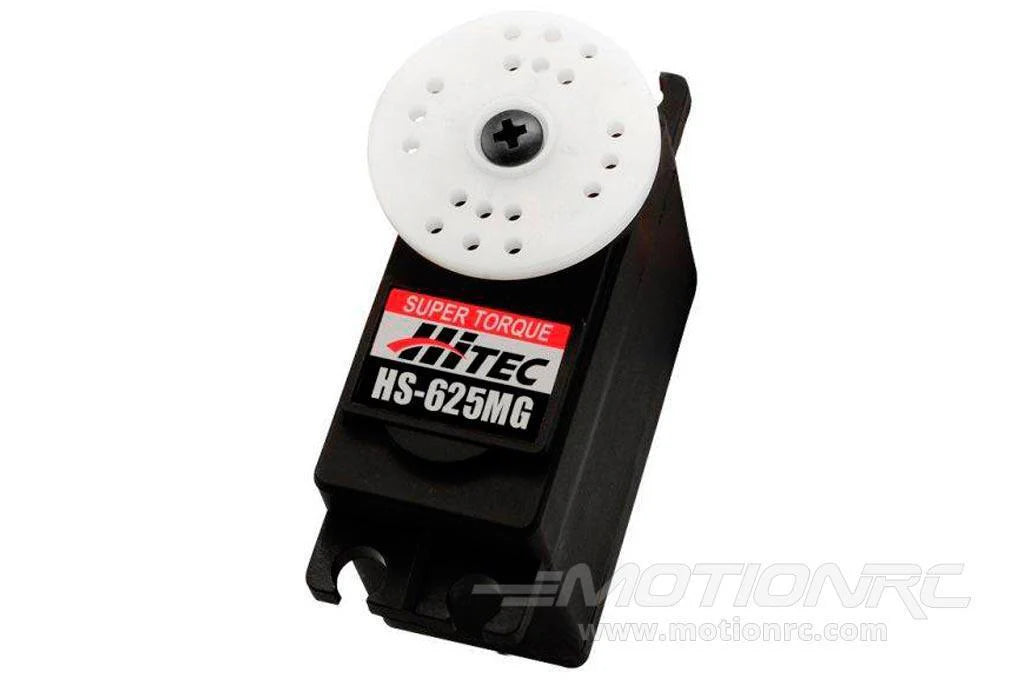

Hitec HS-625MG Ball Bearing Metal Gear Standard Servo

Hitec HS-625MG Ball Bearing Metal Gear Standard Servo

Available Inventory
$48.99 CAD
$48.99 CAD
Sale Sold out

Item No. HRC32625S

The powerful high speed and super torque HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes.

Features:

  • High speed, and high torque standard-sized servo
  • M/P and metal gear train technology
  • Three metal gears
  • Dual ball bearing

Includes:

  • 1x HS-625MG ball bearing metal gear standard servo
  • 4x grommets
  • 4x brass eyelets
  • 4x round, flanged, phillips head screws (1.5 x 14mm)
  • 1x adjustable servo horn
  • 1x large X servo horn (43mm end to end)
  • 1x small X servo horn (30mm end to end)
  • 1x straight servo horn (33mm end to end)

Product Specifications:

Servo Class

Standard

Servo Type

Analog

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V - 6V

Speed (4.8V)

0.18 sec @ 60 deg

Speed (6V)

0.15 sec @ 60 deg

Torque (4.8V)

5.5 kg/cm (76.37 oz/in)

Torque (6V)

6.8 kg/cm (94.43 oz/in)

Current Draw at Idle

9.1mA

Current Draw Operating (No Load)

500 mA

Dimensions (L x W x H)

40.6 x 19.8 x 37.8mm

Weight

55.2g (1.94oz)

Lead Length

330mm
