Hitec

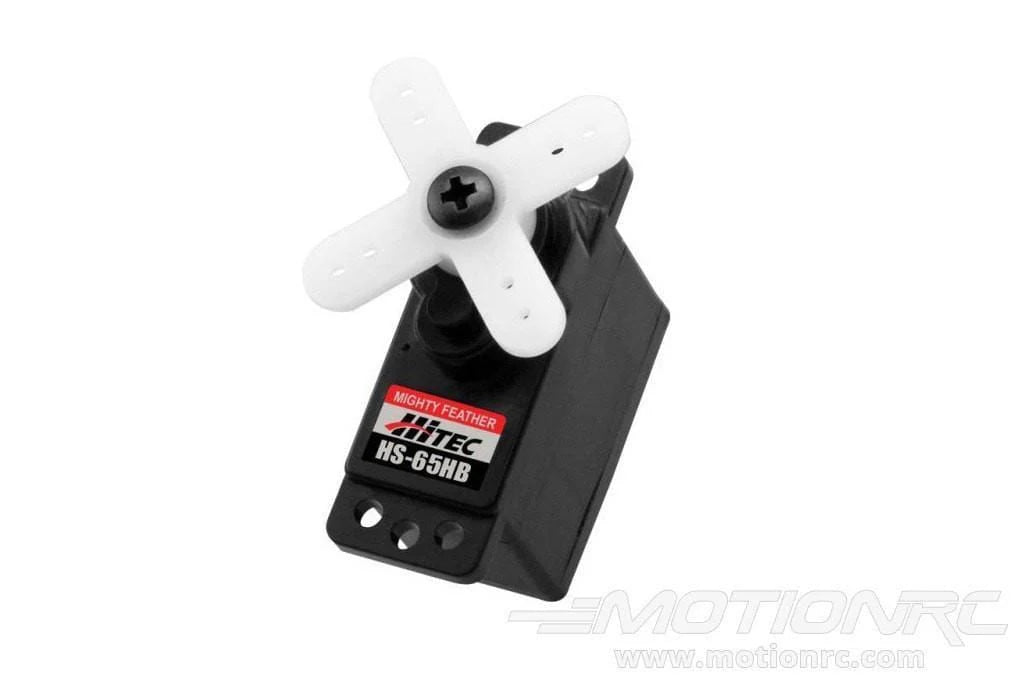

Hitec HS-65HB Very High Torque 9g Micro Servo

Hitec HS-65HB Very High Torque 9g Micro Servo

Available Inventory
$35.99 CAD
$35.99 CAD
Sale Sold out

Item No. HRC33065S



The Hitec HS-65HB is a very high quality analog servo with extremely high torque. It is the most powerful servo in this size and weight. The HS-65HB has very long lasting "zero wear" Karbonite gears and a top ball bearing for very long life and perfect centering. This servo is very slightly larger than an average "9g sized" servo. The servo features a universal connector which works with nearly all receivers. It will fit Futaba J, Hitec S, JR, and Airtronics Z-type Connectors. See specifications tab for full specs.

Features:

  • Karbonite gears
  • Ball bearing
  • Universal connector
  • Extremely high torque

Includes:

  • One HS-65HB Micro Servo
  • One One-sided servo horn
  • One Two-sided servo horn
  • One Four-sided servo horn
  • Four M1.7x7 servo mounting screws
  • One M1.7x3 servo horn screw

Product Specifications:

Servo Class

Sub-Micro

Servo Type

Analog

Gear Material

Karbonite

Direction

Standard / Normal

Operating Voltage Range

4.8V to 6V

Speed (4.8V)

0.14 sec @ 60 deg

Speed (6V)

0.11 sec @ 60 deg

Torque (4.8V)

1.8 kg/cm (24.99 oz/in)

Torque (6V)

2.2 kg/cm (30.55 oz/in)

Current Draw at Idle

5.3-6.6mA

Current Draw Operating (No Load)

400-500mA

Dimensions (L x W x H)

23.6 x 11.6 x 24mm

Weight

11.2g (.39oz)

Lead Length

150mm
