Hitec

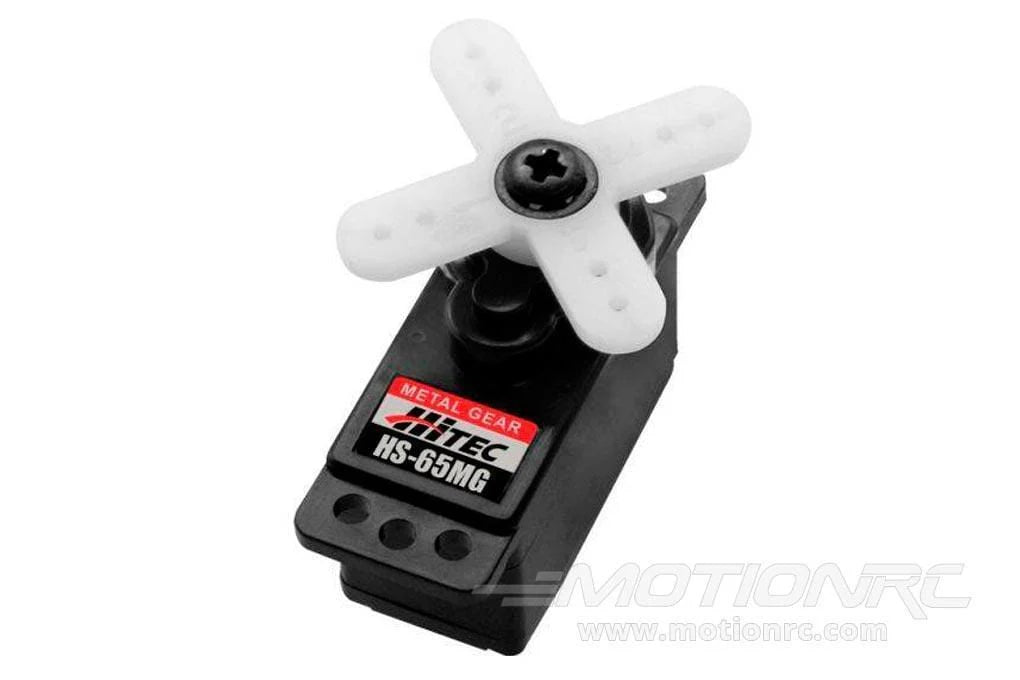

Hitec HS-65MG Metal Gear Sub-Micro Servo

Hitec HS-65MG Metal Gear Sub-Micro Servo

Available Inventory
Regular price $46.99 CAD
Regular price Sale price $46.99 CAD
Sale Sold out

Item No. HRC32065S



The HS-65MG is considered one of the most powerful servos in the micro class, offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 oz-in (2.2kg-cm) of torque at 6 volts and is an excellent choice for higher performance micro helicopters and electric park flyers.

Features:

  • Small, lightweight, high speed, and high torque servo
  • One of the slimmest micro servos available
  • High efficiency Neodymium magnet motor
  • Top ball bearing
  • SMT technology

Includes:

  • 1x Hitec HS-65MG metal gear sub-micro servo with universal connector
  • 4x M1.7x7 servo mounting screws
  • 1x Two-sided servo horn
  • 1x One-sided servo horn
  • 1x M1.7x3 servo horn screw
  • 1x Four-sided servo horn

Product Specifications:

Servo Class

Sub-Micro

Servo Type

Analog

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V - 6V

Speed (4.8V)

0.14 sec @ 60 deg

Speed (6V)

0.11 sec @ 60 deg

Torque (4.8V)

1.8 kg/cm (24.9 oz/in)

Torque (6V)

2.2 kg/cm (30.5 oz/in)

Current Draw at Idle

8 mA

Current Draw Operating (No Load)

220 mA

Dimensions (L x W x H)

23.6 x 11.6 x 24mm

Weight

11.9g (0.41oz)

Lead Length

80mm
