Hitec

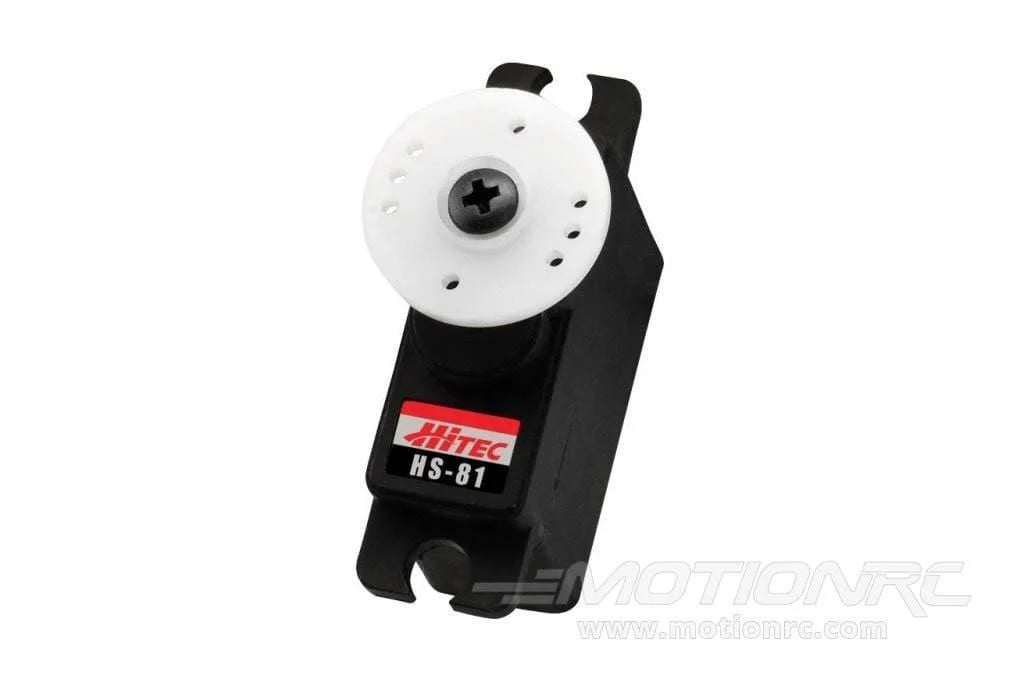

Hitec HS-81 Micro Servo

Hitec HS-81 Micro Servo

Available Inventory
Regular price $23.99 CAD
Regular price Sale price $23.99 CAD
Sale Sold out

Item No. HRC31081S

The Hitec HS-81 is a high quality low cost 17g "size" analog servo. It is light weight and a good choice for most planes with 17g servos. The resin gear train is very reliable and the torque and speed of this servo is very good for the price. The servo features a universal connector which works with nearly all receivers. It will fit Futaba J, Hitec S, JR, and Airtronics Z-type Connectors. See specifications tab for full specs.

Features:

  • Resin gears
  • Light weight
  • Universal connector
  • High torque

Includes:

  • One HS-81 Micro Servo with 10-1/2" connector wire
  • One 7/8"x7/8" X-shaped servo horn
  • One 1-1/8" long straight servo horn
  • Two brass eyelets
  • Two mounting screws
  • Two servo grommets
  • One servo horn screw

Product Specifications:

Servo Class

Micro

Servo Type

Analog

Gear Material

Plastic / Nylon

Direction

Standard / Normal

Operating Voltage Range

4.8V to 6V

Speed (4.8V)

0.11 sec @ 60 deg

Speed (6V)

0.09 sec @ 60 deg

Torque (4.8V)

2.6 kg/cm (36.10 oz/in)

Torque (6V)

3 kg/cm (41.66 oz/in)

Current Draw at Idle

8.8mA

Current Draw Operating (No Load)

280mA

Dimensions (L x W x H)

29.8 x 12 x 29.6mm

Weight

16.6g (.58oz)

Lead Length

270mm
