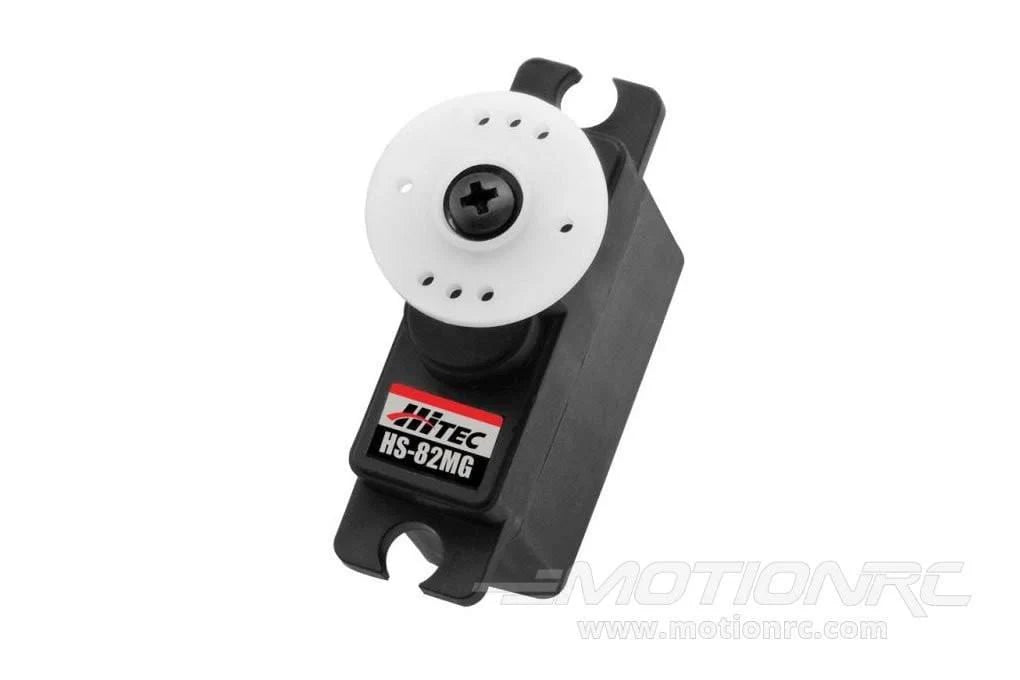

Hitec HS-82MG Metal Gear Micro Servo

Hitec HS-82MG Metal Gear Micro Servo

Available Inventory
$33.99 CAD
$33.99 CAD
Sale Sold out

Item No. HRC32082S



The Hitec HS-82MG is a high quality 17g "size" analog servo with metal gears. It is a good choice for planes requiring a very reliable 17g servo that centers well and will not strip. The servo features a universal connector which works with nearly all receivers. It will fit Futaba J, Hitec S, JR, and Airtronics Z-type Connectors. See specifications tab for full specs.

Features:

  • Metal gears
  • Precise centering
  • Universal connector
  • Updated electronics

Includes:

  • One HS-82MG Metal Gear Micro Servo
  • One 0.67" (17mm) diameter horn
  • One 1.1" (29mm) double arm
  • One 0.90" (23mm) 4-point horn
  • Mounting hardware

Product Specifications:

Servo Class

Micro

Servo Type

Analog

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V to 6V

Speed (4.8V)

0.12 sec @ 60 deg

Speed (6V)

0.10 sec @ 60 deg

Torque (4.8V)

2.8 kg/cm (38.8 oz/in)

Torque (6V)

3.4 kg/cm (47.2 oz/in)

Current Draw at Idle

9.1mA

Current Draw Operating (No Load)

280mA

Dimensions (L x W x H)

29.8 x 12 x 29.6mm

Weight

19g (.66oz)

Lead Length

160mm
