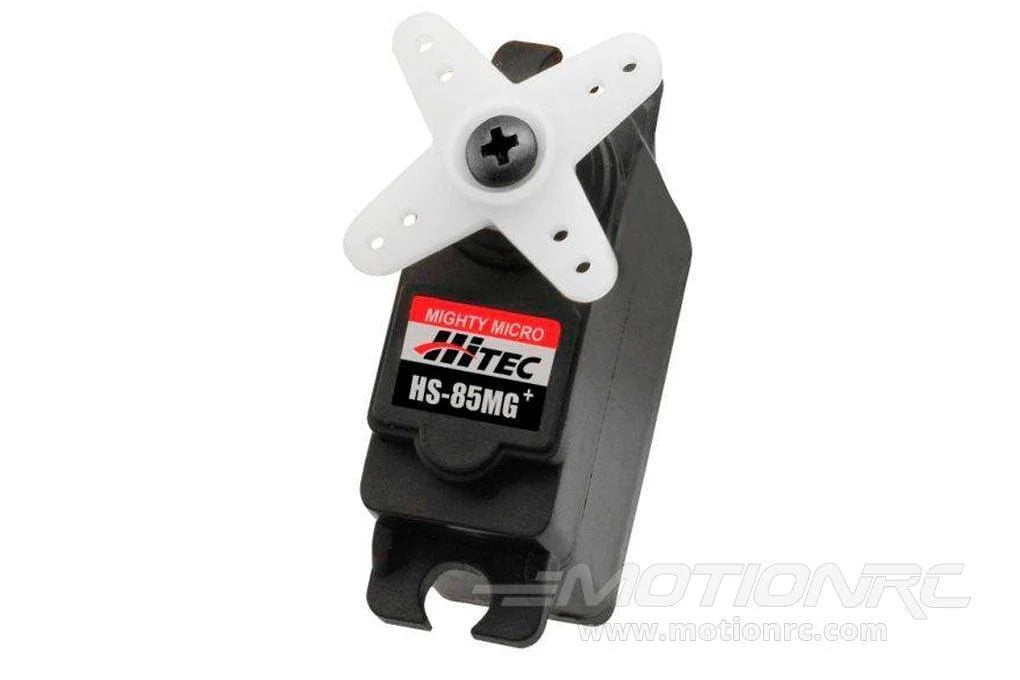

Hitec HS-85MG Premium Metal Gear Micro Servo

Hitec HS-85MG Premium Metal Gear Micro Servo

Available Inventory
Regular price $46.99 CAD
Regular price Sale price $46.99 CAD
Sale Sold out

Item No. HRC32085S

The HS-85MG servo features a high power motor for greater speed and torque. The HS-85MG is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing-supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sailplanes.

Features:

  • Small, lightweight, high speed, and high torque servo
  • Ball bearing supported output shaft
  • Metal gears
  • Aluminum output gear
  • Shock protected POT

Includes:

  • 1x HS-85MG metal gear micro servo
  • 2x screws, grommets and eyelets
  • 2x servo arms and one wheel

Product Specifications:

Servo Class

Micro

Servo Type

Analog

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V - 6V

Speed (4.8V)

0.16 sec @ 60 deg

Speed (6V)

0.14 sec @ 60 deg

Torque (4.8V)

3.0 kg/cm (41.6 oz/in)

Torque (6V)

3.5 kg/cm (48.6 oz/in)

Current Draw at Idle

8mA

Current Draw Operating (No Load)

240 mA

Dimensions (L x W x H)

29 x 13 x 30mm

Weight

21.9g (0.77oz)

Lead Length

260mm
