Hitec

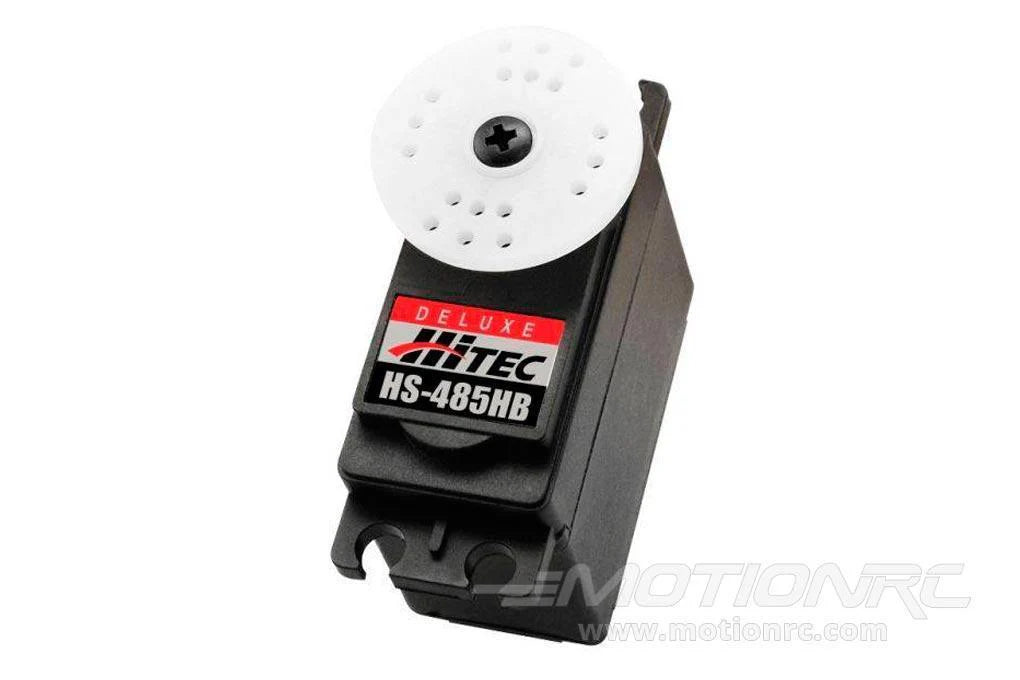

Hitec Standard Deluxe HS-485HB Karbonite Gear BB

Hitec Standard Deluxe HS-485HB Karbonite Gear BB

Available Inventory
Regular price $27.99 CAD
Regular price Sale price $27.99 CAD
Sale Sold out

Item No. HRC33485S



Hitec’s HS-45HB offers the economy and durability of their other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.

Features:

  • Ideal for .20 - .60 class aircraft and all EP and GP .30-.50 class helicopters
  • Karbonite gear train that is four times stronger than standard plastic gears
  • Three pole motor and single ball bearing output shaft

Includes:

  • 1 Hitec HHS-485HB Deluxe ball bearing Karbonite gear standard servo with universal connector
  • 0.94 (24mm) diameter round horn
  • 1.2 (31mm) diameter 4-point horn
  • 1.3 (34mm) double arm horn
  • 1.2 (30.5mm) single arm horn
  • 4 each rubber grommets, eyelets and mounting screws

Product Specifications:

Servo Class

Standard

Servo Type

Analog

Gear Material

Karbonite

Direction

Standard / Normal

Operating Voltage Range

4.8V - 6V

Speed (4.8V)

0.22 sec @ 60 deg

Speed (6V)

0.18 sec @ 60 deg

Torque (4.8V)

4.8 kg/cm (67 oz/in)

Torque (6V)

6 kg/cm (83 oz/in)

Current Draw at Idle

10 mA @ 6V

Current Draw Operating (No Load)

200 mA

Dimensions (L x W x H)

39.8 x 19.8 x 38mm

Weight

45g (1.59oz)

Lead Length

310mm
