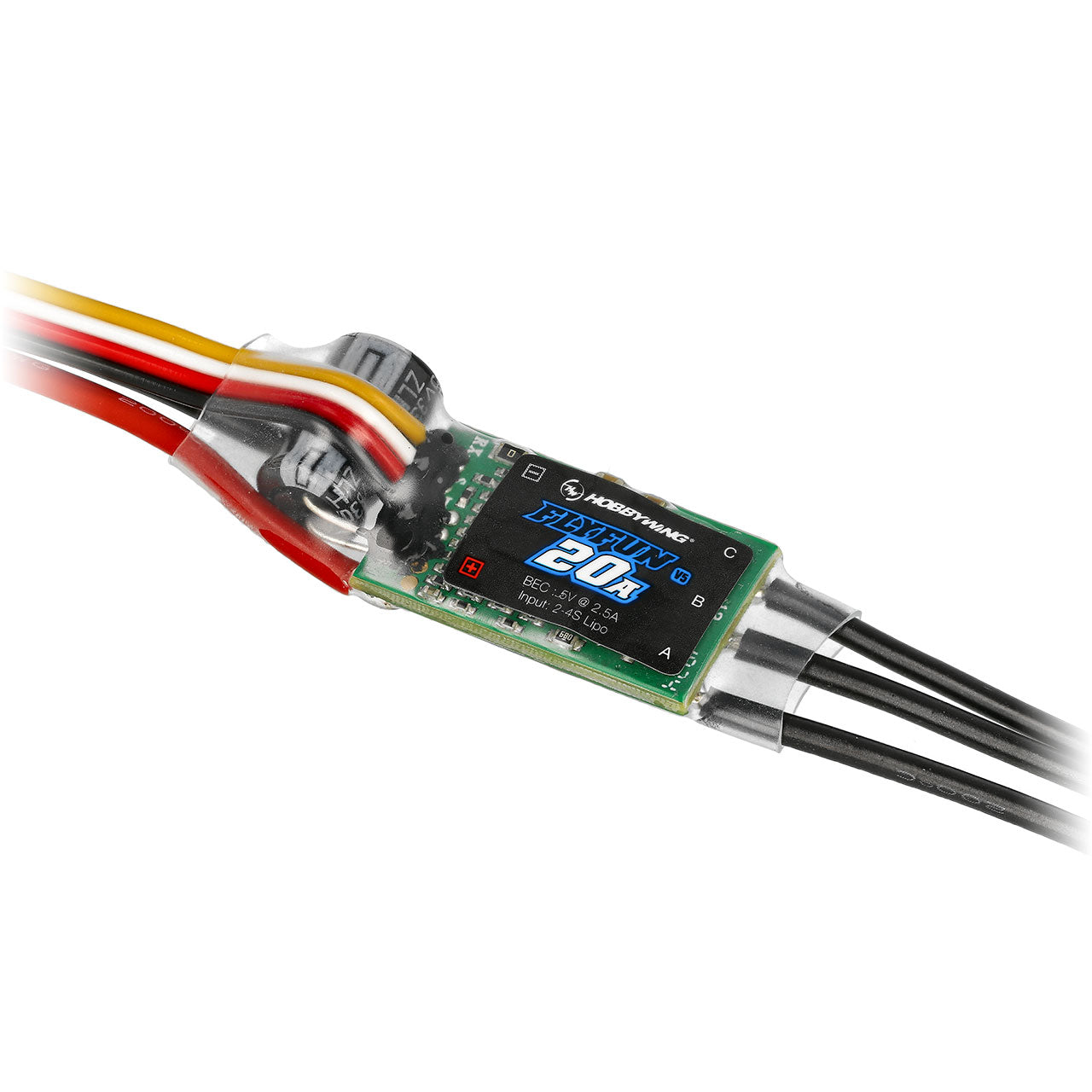

ESC which features a high-performance 32-bit ARM M4 microprocessor (with a running frequency of up to 72MHz) is compatible with various brushless motors.
Microprocessor powered by a separate DC regulator has better anti-interference performance greatly reduces the possibility of losing control.
DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
Built-in high-power BEC with output voltage 5.2V. The BEC module is separate from other circuits on the ESC, so the normal BEC output can be guaranteed (when issue like burnt power board happens) to allow users to get the aircraft back before crash.
Normal/Soft/Very Soft start-up modes are compatible with regular propeller airplanes and EDF jet airplanes (pls ensure to select the "Very Soft Start-up" mode when using EDF jet airplanes).
Separate programming cable for connecting ESC to a LED program boxand allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
Normal/proportional can effectively shorten the landing distance for the aircraft.
Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service
learn more about HOBBYWING warranty program visit here.
ESC Programming via
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Specifications:
- BEC: Switch Mode: 5.2V, 2.5A/4A
- Input /output wire: 18AWG-140mm / 16AWG-110mm 3mm
- Input connector: NO
- Output connector: 2mm Gold Connectors (Female)
- Size (mm): 25x15x5mm
- Weight (g): 13g
