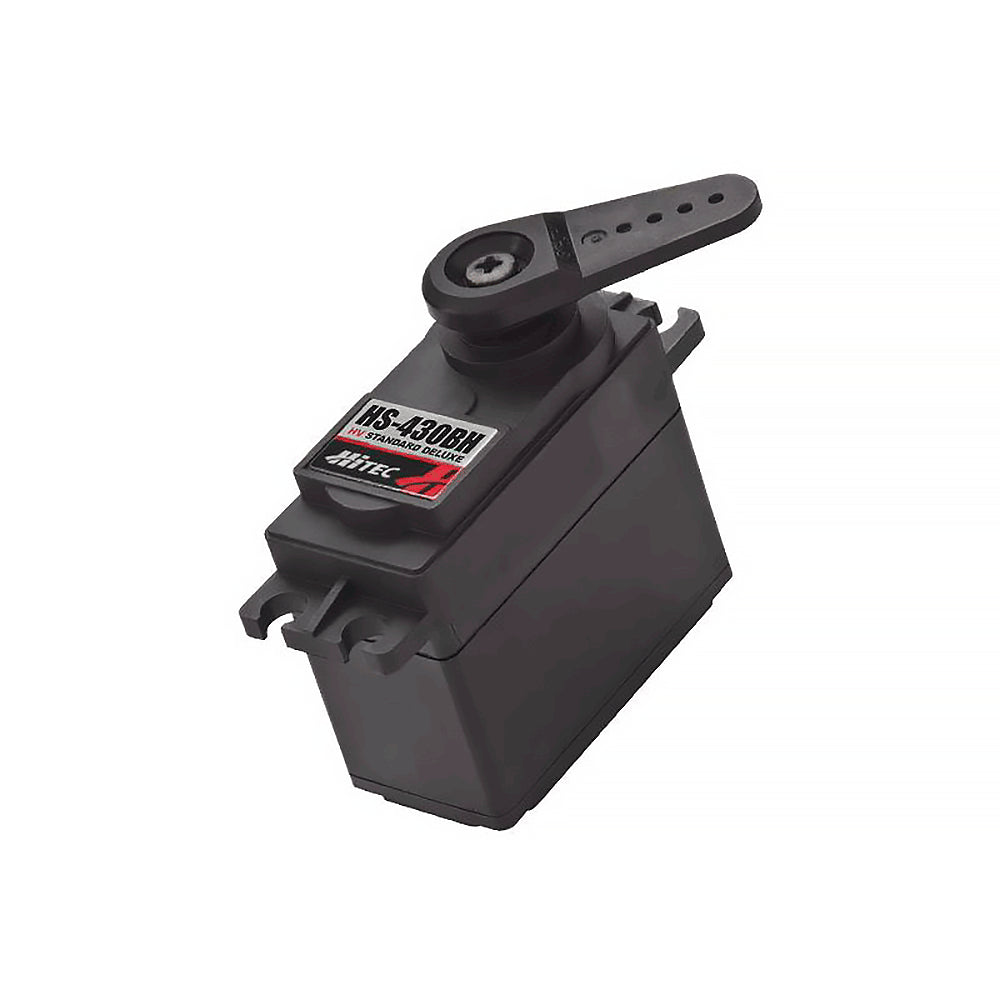

HS-430BH Deluxe Ball Bearing Resin Gear 24T Analog Sport Servo

HS-430BH Deluxe Ball Bearing Resin Gear 24T Analog Sport Servo

Available Inventory
$24.99 CAD
$24.99 CAD
Sale Sold out

Based on the popular HS-425BB, our deluxe ball bearing HS-430BH is our budget-minded analog servo capable of 6.0 to 7.4 volt operation. Designed with the novice hobbyist in mind, this low cost servo can be used for control surfaces on beginner airplanes and as a throttle or replacement servo for many ready-to-fly models. Its excellent durability and dependability make it a solid choice for beginner pilots.

Features

  • Our Lowest Priced, 7.4v 2-Cell LiPo Capable Servo
  • Dual Resin Gear Train
  • Dual Ball Bearings
  • Durable and Dependable Construction
  • High Voltage, High Performance Circuitry

HS-430BH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.16 ~ 0.14
Maximum Torque Range oz. / in. 57 ~ 69
Maximum Torque Range kg. / cm. 4.1 ~ 5.0
Current Draw at Idle 8 mA
No Load Operating Current Draw 160 mA
Stall Current Draw 850 mA
Dead Band Width 8 µs
Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.44
Dimensions (Metric) 40.6 x 19.8 x 36.6
Weight (Ounces) 1.60
Weight (Gram) 45.5
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane 2 meters and up
3D Performance N / A
Scale 50 - 64 oz.
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat < 1 meter
Power Boat 1/10th
