Protek RC

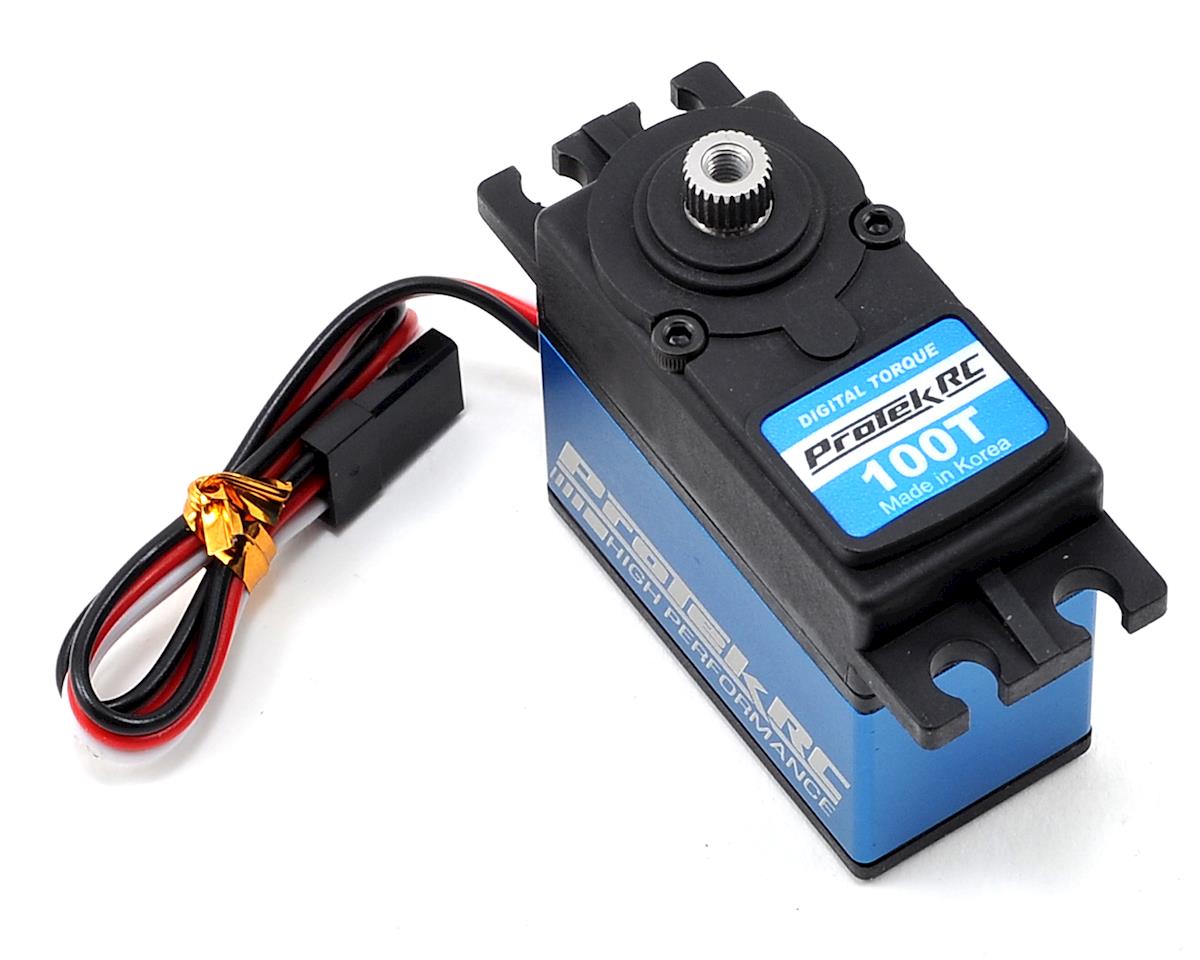

ProTek RC 100T Standard Digital "High Torque" Metal Gear Servo

ProTek RC 100T Standard Digital "High Torque" Metal Gear Servo

Available Inventory
$69.99 CAD
$69.99 CAD
Sale Sold out

Item No. PTK-100T



The ProTek R/C 100T Digital Torque servo delivers a powerful 216 oz-in of torque with a 0.14 transit speed at 6.0V. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a cored motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.



Features:

  • Ideal for any 1/10 scale vehicle application
  • Aluminum middle case
  • 0.14 transit speed, and 216 oz-in of torque @ 6.0V
  • Full metal gears and dual ball bearings
  • 200mm long 22awg connector wire w/gold plated connectors
  • Cored Motor
    Servo Model
    		100T
    Recommended Application 1/10 Surface
    Operating Voltage 4.8V - 6.0V
    Operating Temperature 14° to 140° F (-10 to +60° C)
    Operating Speed @ 4.8V 0.17/60° sec
    Operating Speed @ 6.0V
    		0.14/60° sec
    Dynamic Torque @ 4.8V
    		173 oz-in (12.5 kg-cm)
    Dynamic Torque @ 6.0V
    		216 oz-in (15.6 kg-cm)
    Motor Type
    		Cored DC Motor
    Output Shaft 25 Tooth
    Gears Metal
    Weight 54.9g
    Pulse/Frequency
    		1520?s / 333hz
