Protek RC

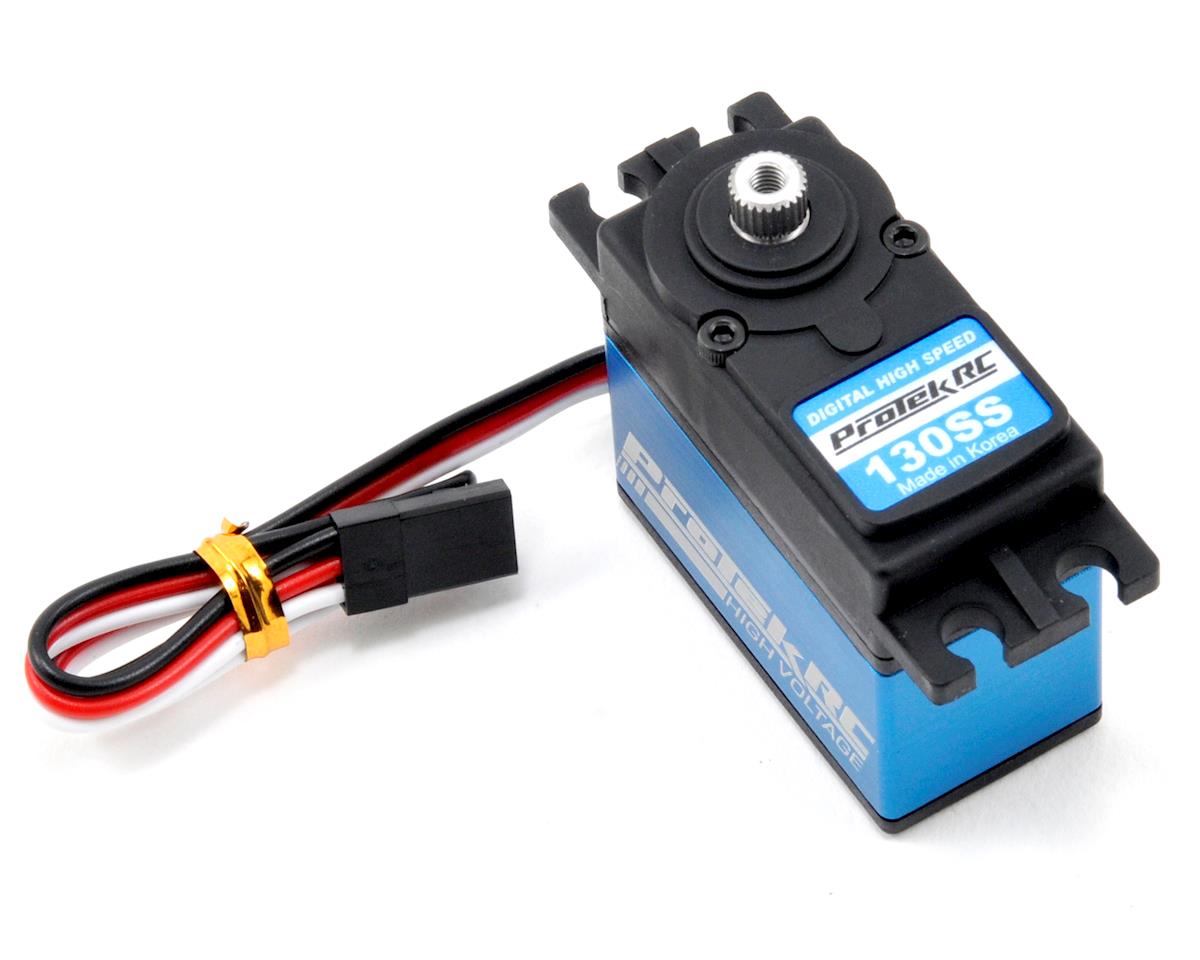

ProTek RC 130SS Standard Digital "Super Speed" Metal Gear Servo (High Voltage)

ProTek RC 130SS Standard Digital "Super Speed" Metal Gear Servo (High Voltage)

Available Inventory
Regular price $119.99 CAD
Regular price Sale price $119.99 CAD
Sale Sold out

Item No. PTK-130SS



The ProTek R/C 130SS High Voltage Super Speed servo delivers lighting fast 0.06 transit speed and 211 oz-in of torque at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 0.05 and 260 oz-in! Spec's like these make this servo an excellent choice for any 1/10 to 1/8 scale vehicle application. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a coreless motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.



Features:

  • Ideal for any 1/10 to 1/8 scale vehicle application
  • Aluminum middle case
  • High voltage circuitry
  • 0.06 transit speed, and 211 oz-in of torque @ 6.0V
  • 0.05 transit speed, and 260 oz-in of torque @ 7.4V
  • Aluminum single arm servo horn
  • Full metal gears and dual ball bearings
  • 200mm long 22awg connector wire w/gold plated connectors
  • Coreless motor



Servo Model
130SS
Recommended Application 1/10 to 1/8 scale surface
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.06/60° sec
Operating Speed @ 7.4V
0.05/60° sec
Dynamic Torque @ 6.0V
211 oz-in (15.2 kg-cm)
Dynamic Torque @ 7.4V
260 oz-in (18.7 kg-cm)
Motor Type
High Efficiency Coreless Motor
Output Shaft 25 Tooth
Gears Metal
Weight 63.8g
Pulse/Frequency
1520μs / 333hz
