Protek RC

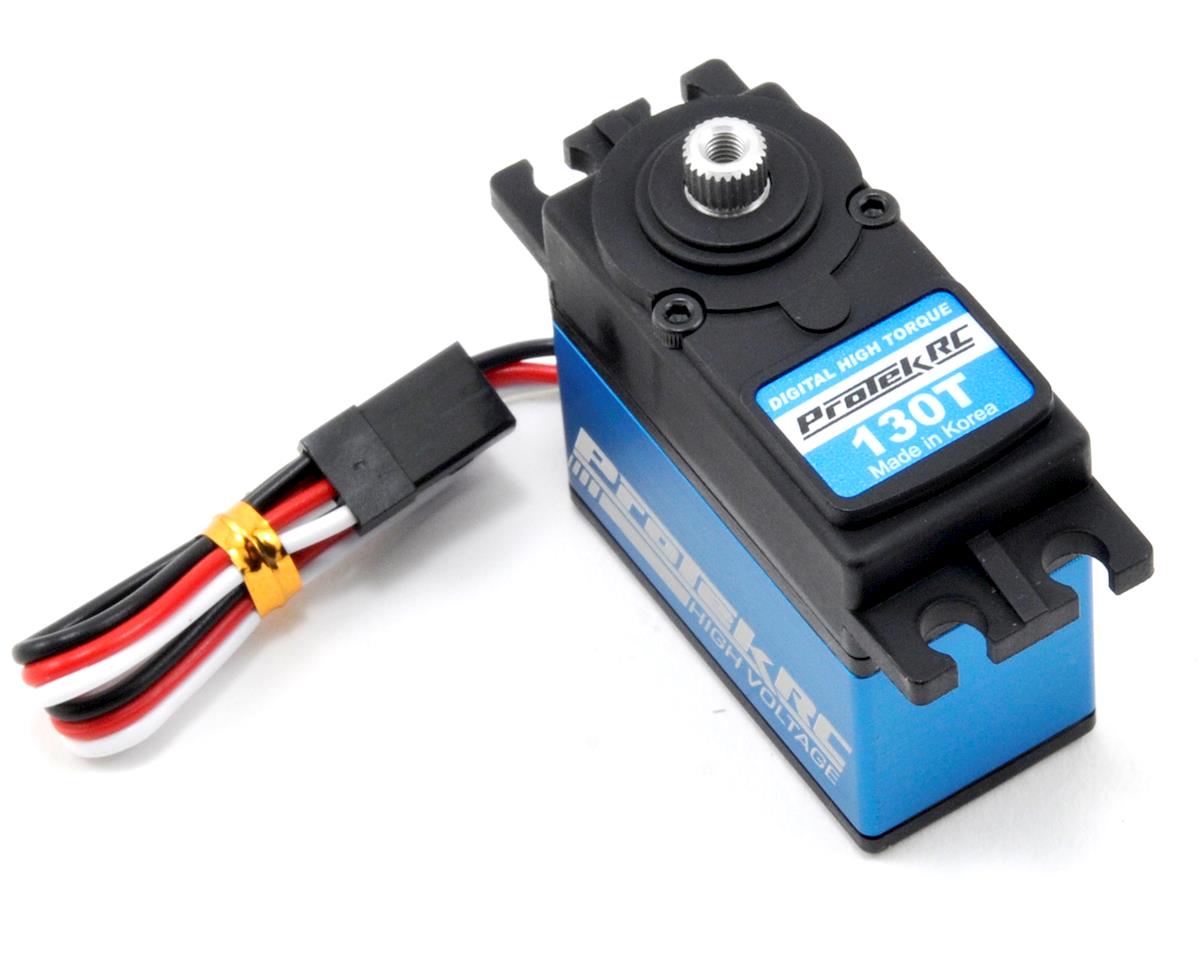

ProTek RC 130T Standard Digital "High Torque" Metal Gear Servo (High Voltage)

ProTek RC 130T Standard Digital "High Torque" Metal Gear Servo (High Voltage)

Available Inventory
Regular price $129.99 CAD
Regular price Sale price $129.99 CAD
Sale Sold out

Item No. PTK-130T

The ProTek R/C 130T High Voltage Hi-Torque servo delivers an incredible 288 oz-in of torque with a 0.10 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 355 oz-in and 0.08! Spec's like these make this servo an excellent choice for any 1/10 to 1/8 scale vehicle application. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a coreless motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.



Features:

  • Ideal for any 1/10 to 1/8 scale vehicle application
  • Aluminum middle case
  • High voltage circuitry
  • 0.10 transit speed, and 288 oz-in of torque @ 6.0V
  • 0.08 transit speed, and 355 oz-in of torque @ 7.4V
  • Aluminum single arm servo horn
  • Full metal gears and dual ball bearings
  • 200mm long 22awg connector wire w/gold plated connectors
  • Coreless motor



Servo Model
130T
Recommended Application 1/10 to 1/8 scale surface
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.10/60° sec
Operating Speed @ 7.4V
0.08/60° sec
Dynamic Torque @ 6.0V
288 oz-in (20.7 kg-cm)
Dynamic Torque @ 7.4V
355 oz-in (25.6 kg-cm)
Motor Type
High Efficiency Coreless Motor
Output Shaft 25 Tooth
Gears Metal
Weight 61g
Pulse/Frequency
1520?s / 333hz
