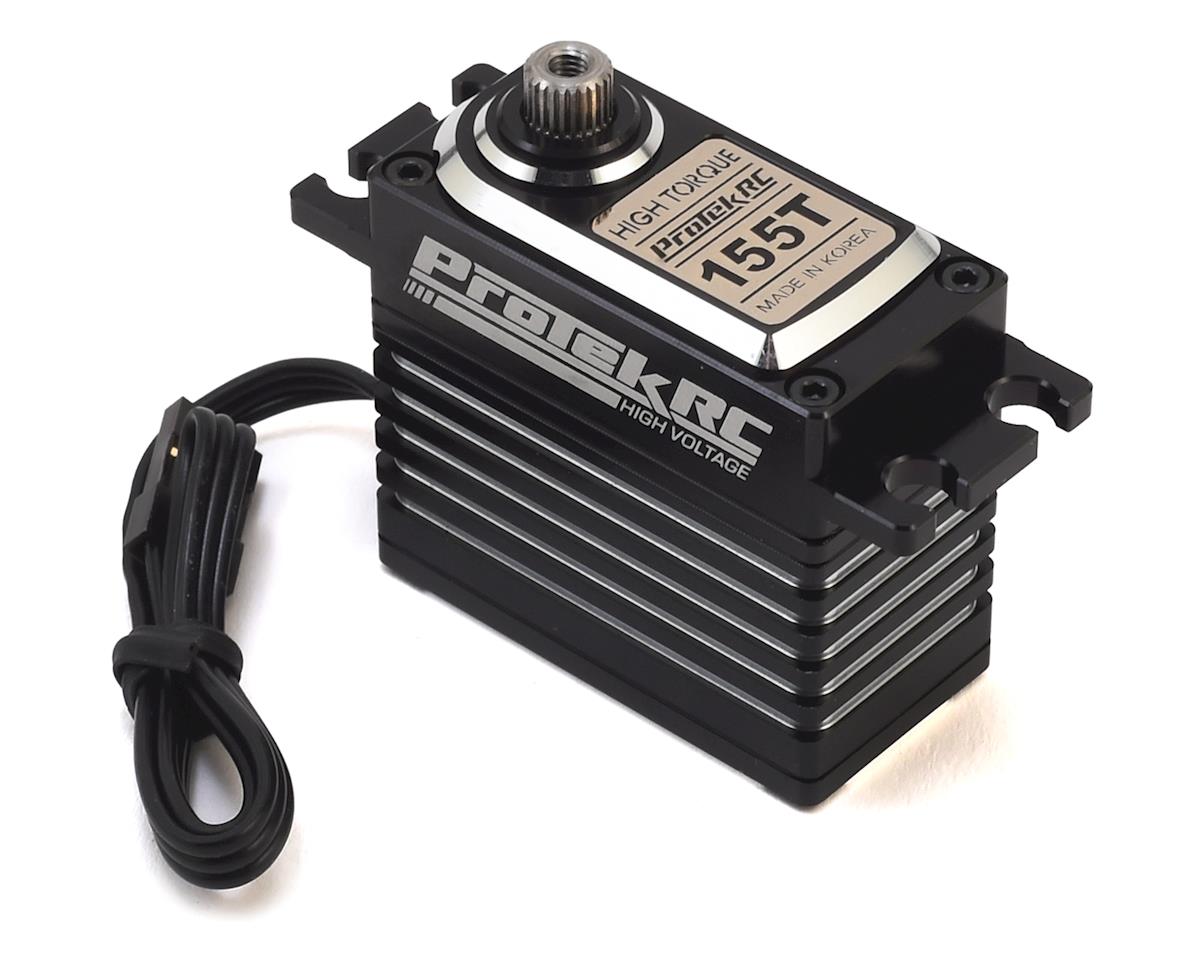

ProTek RC 155T Digital "High Torque" Metal Gear Servo (High Voltage/Metal Case)

ProTek RC 155T Digital "High Torque" Metal Gear Servo (High Voltage/Metal Case)

Available Inventory
Regular price $189.99 CAD
Regular price Sale price $189.99 CAD
Sale Sold out

Item No. PTK-155T



The ProTek R/C 155T High Voltage Hi-Torque servo delivers an incredible 360 oz-in of torque and 0.10 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 453 oz-in and 0.08! Spec's like these make this servo an excellent choice for any 1/10 to 1/8 scale vehicle application. Other features include a full aluminum case that provides bomb proof durability and improved heat dissipation, a metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a coreless motor and Conformal Coated circuit board for excellent vibration absorption and element protection (not waterproof).



Features:

  • Ideal for any 1/10 to 1/8 scale vehicle application
  • Conformal coated circuit board
  • Full aluminum case
  • High voltage circuitry
  • 0.10 transit speed, and 360 oz-in of torque @ 6.0V
  • 0.08 transit speed, and 453 oz-in of torque @ 7.4V
  • Aluminum single arm servo horn
  • Full metal gears and dual ball bearings
  • 200mm long 22awg connector wire w/gold plated connectors
  • Coreless motor



Servo Model
155T
Recommended Application 1/10 to 1/8 scale Surface
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.10/60° sec
Operating Speed @ 7.4V
0.08/60° sec
Dynamic Torque @ 6.0V
360 oz-in (25.9 kg-cm)
Dynamic Torque @ 7.4V
453 oz-in (32.6 kg-cm)
Motor Type
High Efficiency Coreless Motor
Output Shaft 25 Tooth
Gears Metal
Weight 72.9g
Pulse/Frequency
1520?s / 333hz
