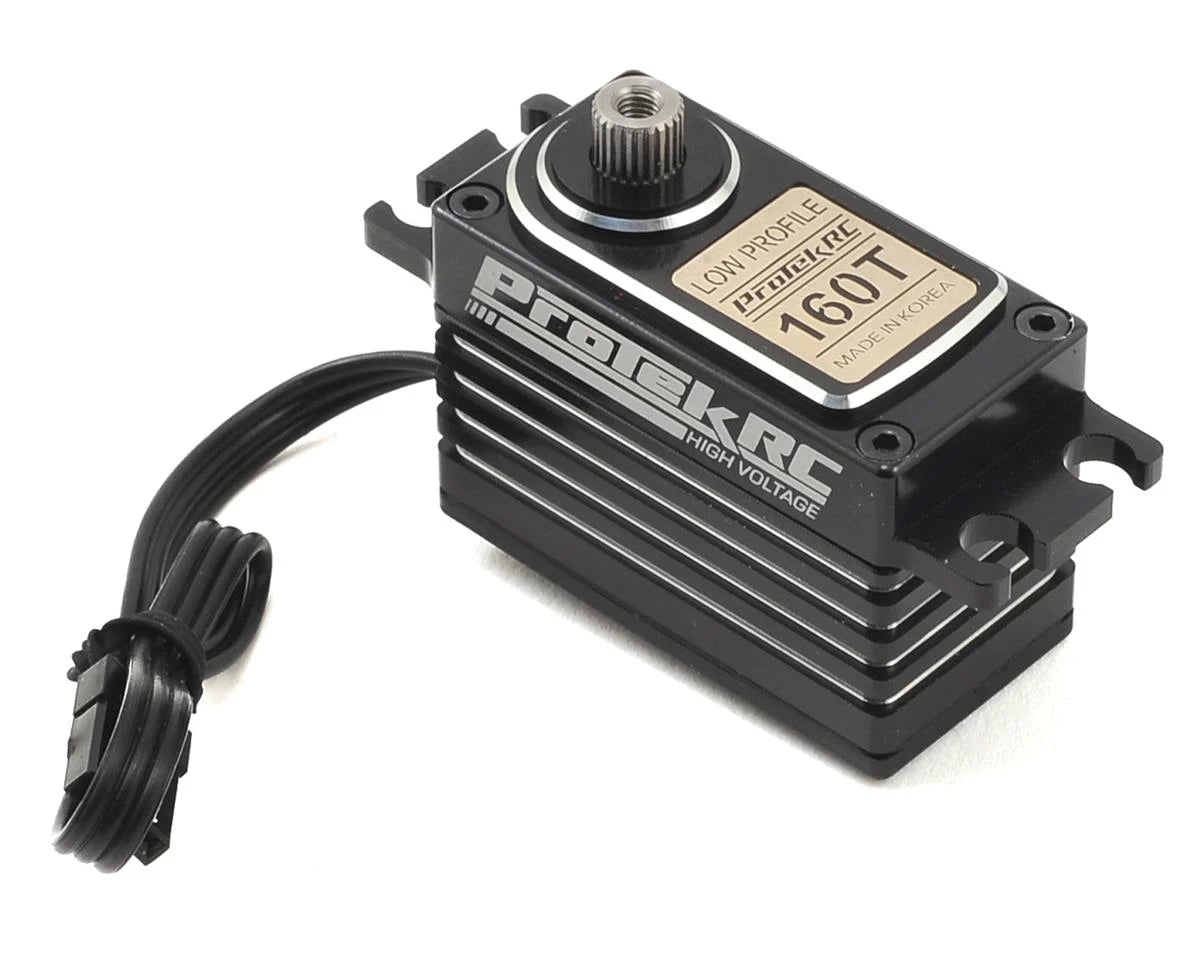

ProTek RC 160T Low Profile High Torque Metal Gear Servo High Voltage/Metal Case

ProTek RC 160T Low Profile High Torque Metal Gear Servo High Voltage/Metal Case

Available Inventory
Regular price $149.99 CAD
Regular price Sale price $149.99 CAD
Sale Sold out

Item No. PTK-160T



The ProTek R/C 160T High Voltage Low Profile servo delivers an incredible 216 oz-in of torque and 0.08 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 274 oz-in and 0.06! Spec's like these make this servo an excellent choice for any 1/12 to 1/10 scale vehicle application. Other features include a full aluminum case that provides bomb proof durability and improved heat dissipation, a metal gear train that is supported by dual ball bearings, a 160mm long 22awg connector wire with gold plated connectors, and a coreless motor.



Features:

  • Low-Profile case saves space and weight
  • Ideal for any 1/12 to 1/10 scale vehicle application
  • Full aluminum case
  • High voltage circuitry
  • 0.08 transit speed, and 216 oz-in of torque @ 6.0V
  • 0.06 transit speed, and 274 oz-in of torque @ 7.4V
  • Aluminum single arm servo horn
  • Full metal gears and dual ball bearings
  • 160mm long 22awg connector wire w/gold plated connectors
  • Coreless motor



Servo Model
160T
Recommended Application 1/12 to 1/10 scale Surface
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.08/60° sec
Operating Speed @ 7.4V
0.06/60° sec
Dynamic Torque @ 6.0V
216 oz-in (15.5 kg-cm)
Dynamic Torque @ 7.4V
274 oz-in (19.7 kg-cm)
Motor Type
High Efficiency Coreless Motor
Output Shaft 25 Tooth
Gears Metal
Weight 54.5g
Pulse/Frequency
1520?s / 333hz
Dimensions 39.5x20x30.3mm
Length (Bottom to Mount)
19.10mm
