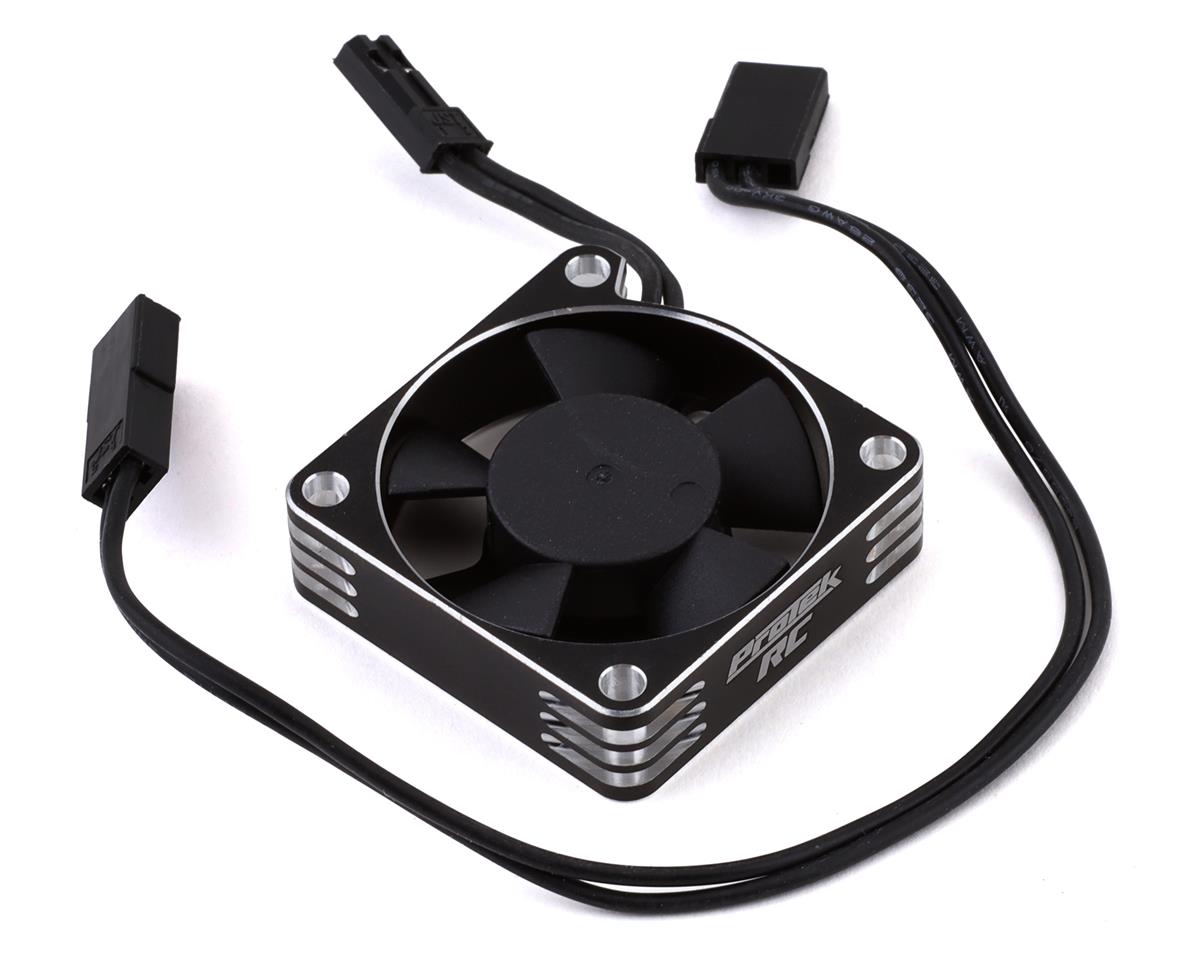

ProTek RC 35x35x10mm Aluminum High Speed HV Cooling Fan

ProTek RC 35x35x10mm Aluminum High Speed HV Cooling Fan

Available Inventory
Regular price $29.99 CAD
Regular price Sale price $29.99 CAD
Sale Sold out
Color: Black

The ProTek RC 35x35x10mm Aluminum High Speed HV Cooling Fan is a great option to keep your ESC and motor temps in check. The fan is a true 2S HV component that has been built to last with dual ball bearings and machined aluminum case. The case allows cooler operation of the fan motor, while also adding strength to the assembly, helping to protect the fan blades in the event of a crash.



A pre-wired 30mm long 2 pin JST connector is used for connection, and we include a 170mm long JST/JR adapter plug that allows you to connect the fan directly to the receiver or another source of power. The fan is ideal to keep ESC's or motors cool, and can be mounted to an ESC that is compatible with a 35mm fan, directly to the chassis with double side tape, or to the motor using an optional 35mm fan mount (not included).



NOTE: This fan should be installed at least 5mm away from the motor to allow sufficient air flow and prevent magnet interference.

Features:

35mm aluminum cooling fan
Ideal for ESC and motor applications
Aluminum casing helps protect the fan blades
Compatible with 2S HV LiPo systems (8.75V max)
Anodized black with silver chamferred edges
Perfect for 1/10, 1/8 and Large Scale platforms
2 pin JST connector and included extension for easy installation



Product Model    High Speed HV Cooling Fan
Application    1/10 - 1/8 Motor & ESC
Fan Speed    20,000 RPM
Dimensions (LxWxH)    35x35x10mm
Mounting Pattern
29x29mm
Material
Aluminum Case w/Plastic Fan
Weight
15g
Operation Voltage
5V - 8.75V
Connector    2 Pin JST
Current    0.45A
