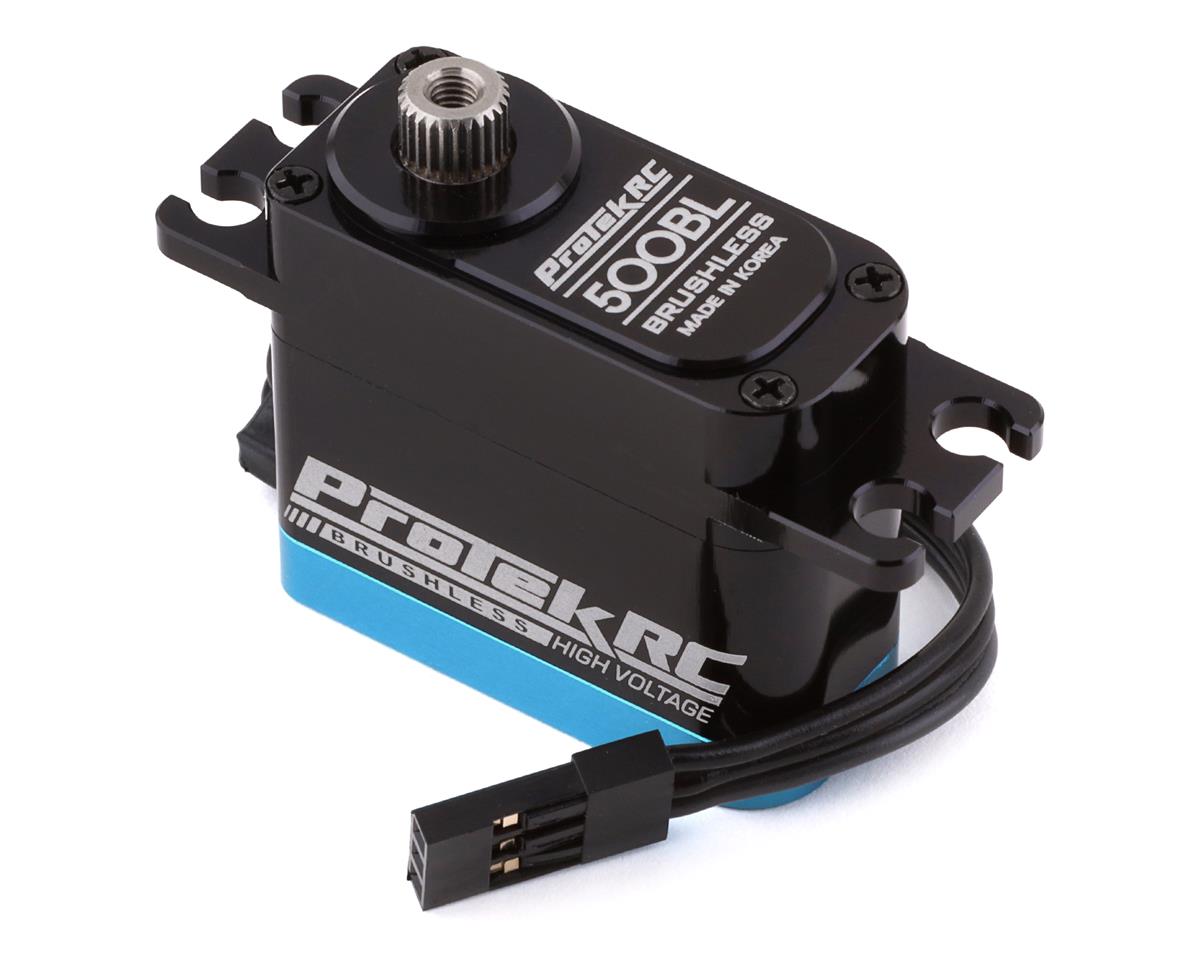

ProTek RC 500BL "Black Label" 1/12 High Torque Brushless Mini Servo (High Voltage/Metal Case)

ProTek RC 500BL "Black Label" 1/12 High Torque Brushless Mini Servo (High Voltage/Metal Case)

Available Inventory
$119.99 CAD
$119.99 CAD
Sale Sold out

Item No. PTK-500BL



The ProTek 500BL Mini is the next step in mini servo performance. Developed for 1/12 and 1/10 pan car, as well as 1/10 Pro Class drag racing pan car style chassis that use a mini size servo, this brushless option produces 186oz of torque and .06 transit speed at 7.4 volts - with superior efficiency and lifespan.



NOTE:
  • If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
  • Modification may be required for drag applications.
Features:
  • Ideal for any 1/12 & 1/10 Pan Cars and Pro Class Drag Racing applications
  • Full aluminum black anodized case
  • High voltage circuitry
  • 0.08 transit speed, and 161 oz-in of torque @ 6.0V
  • 0.06 transit speed, and 186 oz-in of torque @ 7.4V
  • Full metal gears
  • Brushless motor
Servo Model
 500BL
Recommended Application 1/12 & 1/10 Pan Car or Pro Class Drag Racing
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.08/60° sec
Operating Speed @ 7.4V
 		0.06/60° sec
Dynamic Torque @ 6.0V
 161 oz-in (11.59 kg-cm)
Dynamic Torque @ 7.4V
 		186 oz-in (13.39 kg-cm)
Motor Type
 Brushless Digital
Output Shaft 25 Tooth
Gears Metal
Weight 42g
Pulse/Frequency
 1520Us / 333hz
Dimensions 34x30.80x15.50mm
Length (Bottom to Mount)
 21.30mm
