ProTek RC Electronic Switch w/Voltage Cutoff
ProTek RC Electronic Switch w/Voltage Cutoff

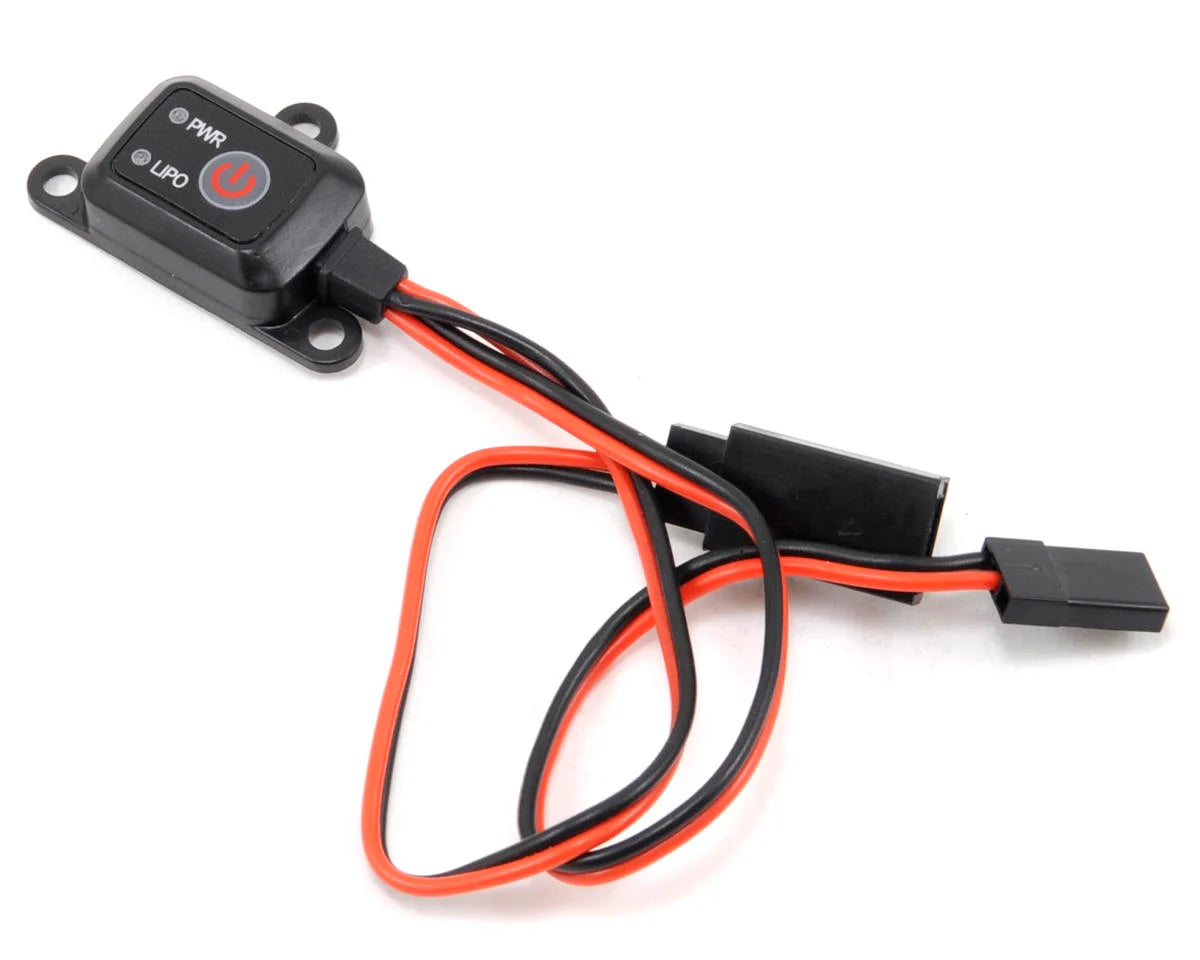

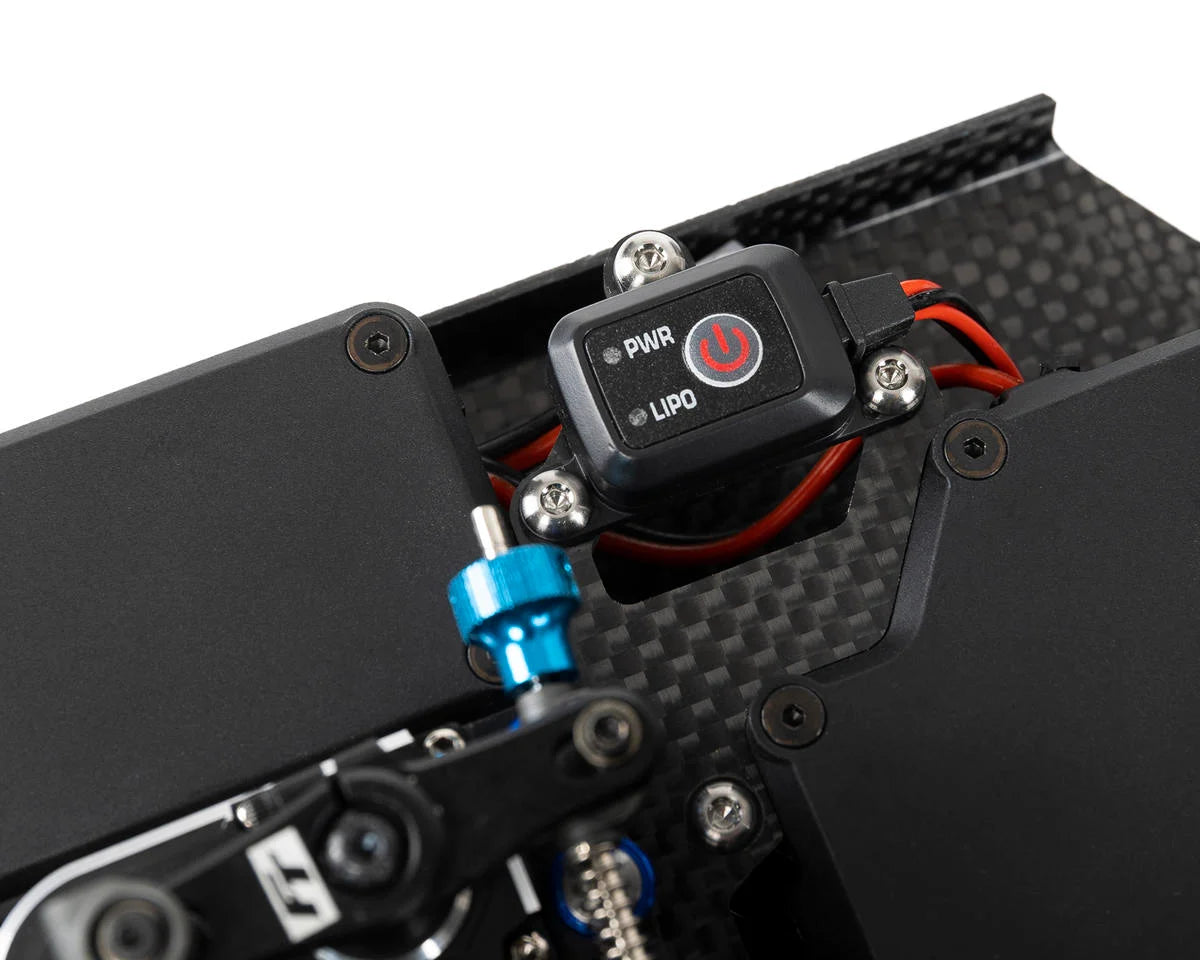

This is the ProTek R/C Electronic Switch. The ProTek R/C Electronic Switch is a lightweight and compact MCU controlled digital ON/OFF switch for your radio controlled model. With the push of a button this digital electronic switch eliminates the problems with intermittent contact associated with mechanical switches. This ProTek R/C Electronic Switch can be easily mounted to the transponder mount of your model or any other suitable location using double-sided tape (optional bottom covers are included).
The ProTek R/C Electronic Switch includes a LiPo mode that when selected, will auto-detect low LiPo voltage and will cut-off power from your LiPo battery to prevent over discharging. LiPo mode can be turned off if other safeguards are in place or you are using a NiMH or NiCd battery. The ProTek R/C Electronic Switch also monitors the remaining capacity and condition of the battery pack, and indicates the status with the use of LED's.
Features:
- Digitally MCU Controlled Unit
- Supports Multiple Battery Types
- Integrated LiPo Safety Mode
- LED Battery Status Indication
- Small and Lightweight Design

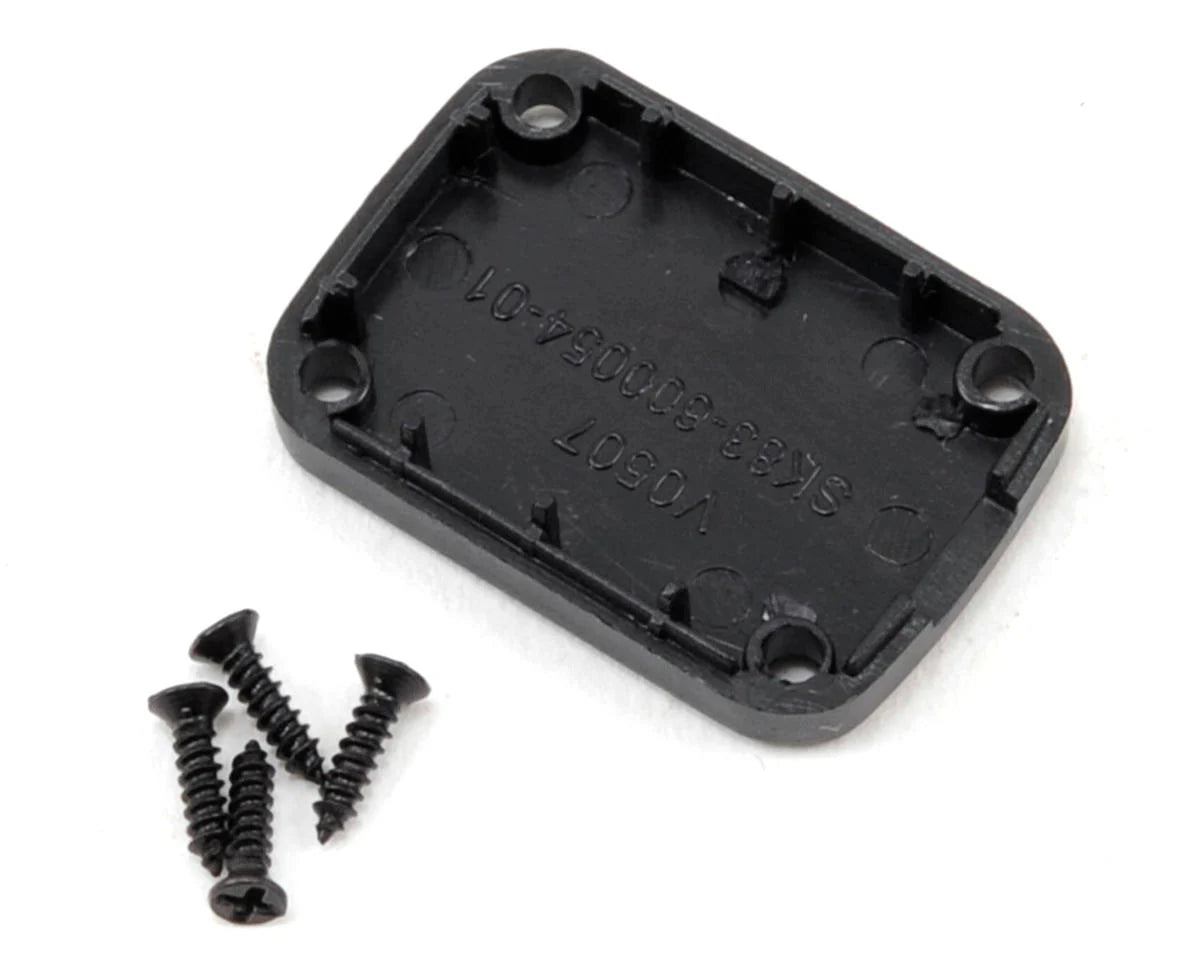

- Additional Bottom Cases Included
Model |
PTK-4060 |
Input Voltage |
4-12V |
Max. Current |
10A |
Battery Mode |
1. NiHM/NiCD; 2. LiPo |
Low Voltage Protection |
6.2V (LiPo Mode Only) |
Operational Temperature |
32-122°F (0-50°C) |
Weight | Approx. 7g |
