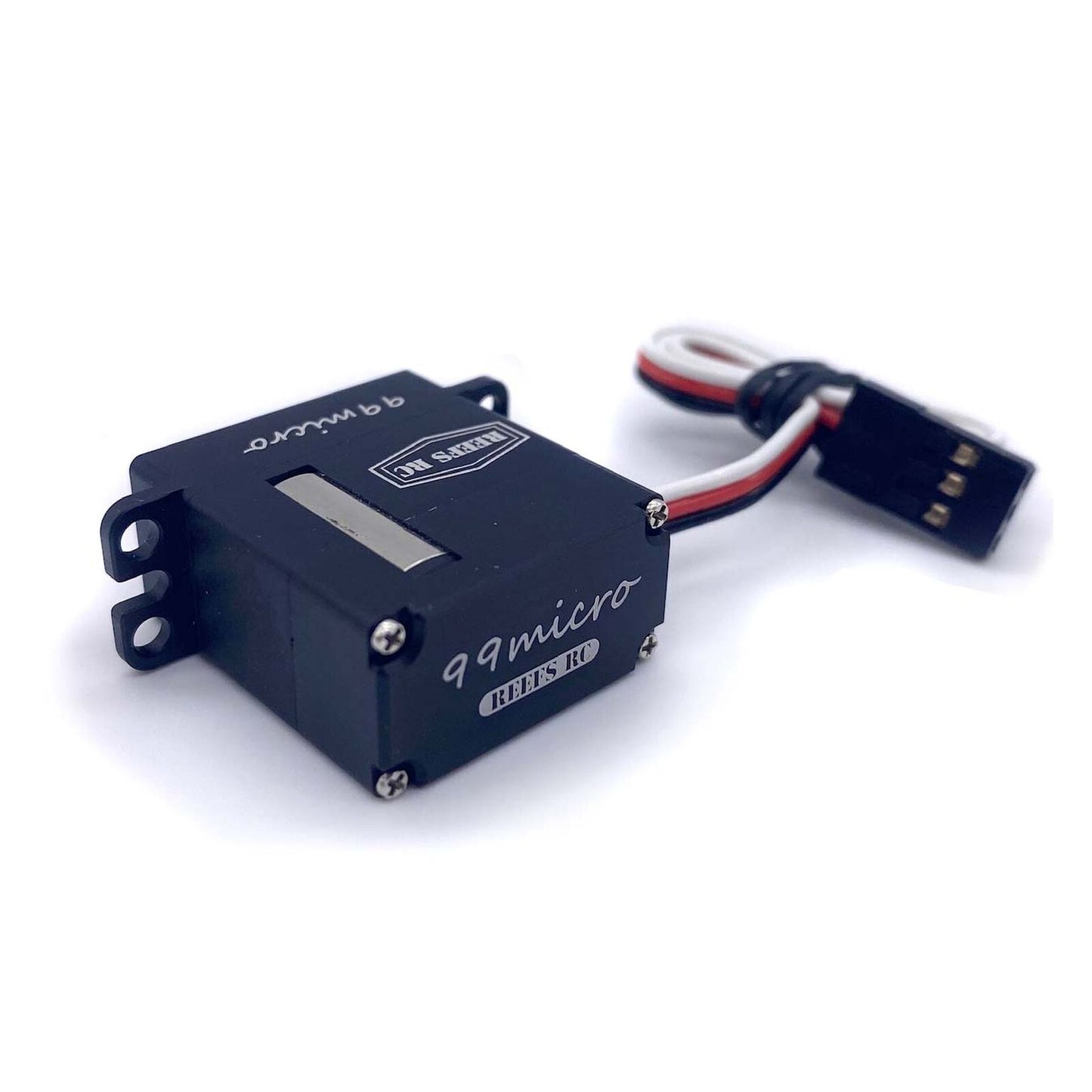

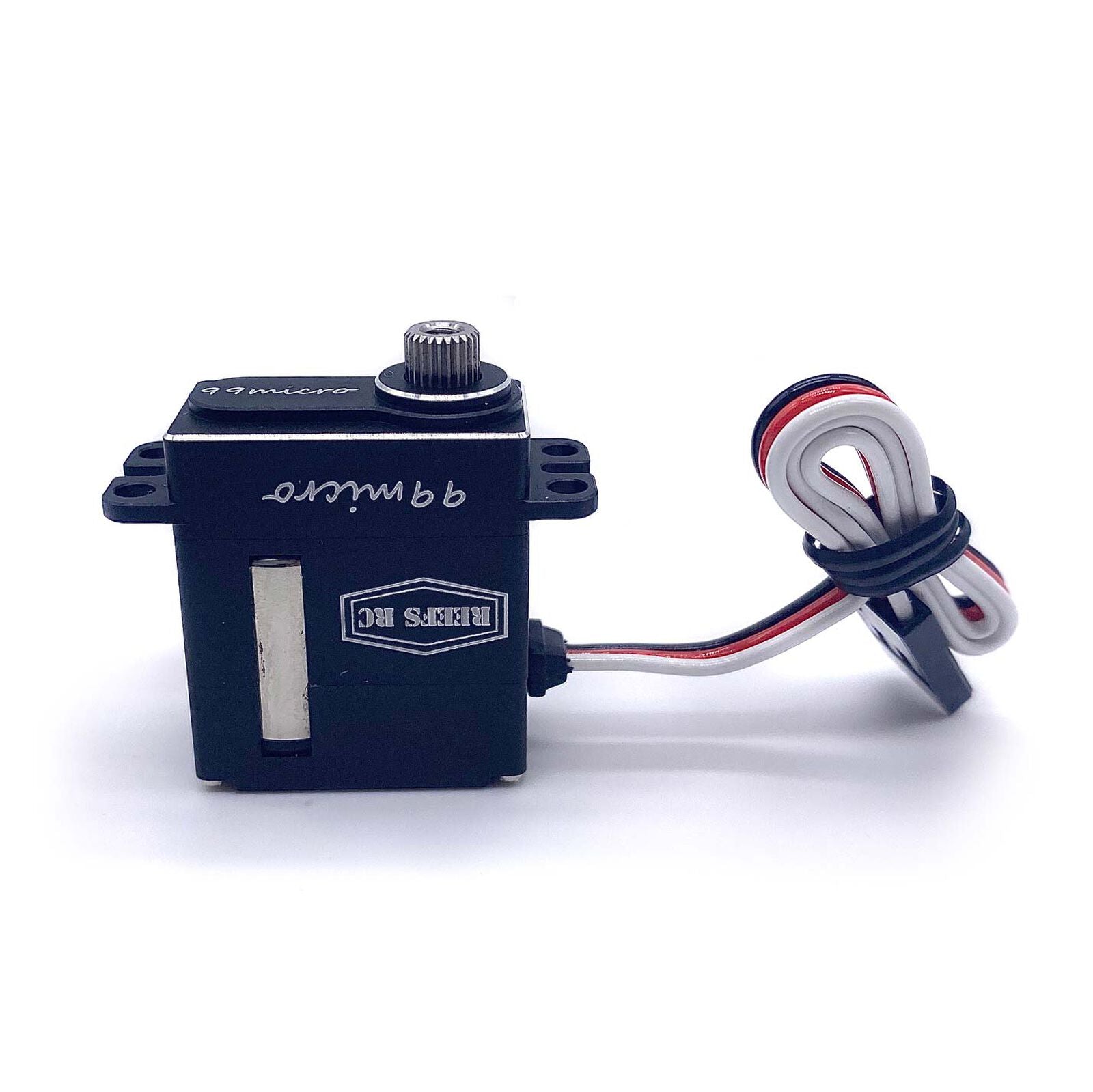

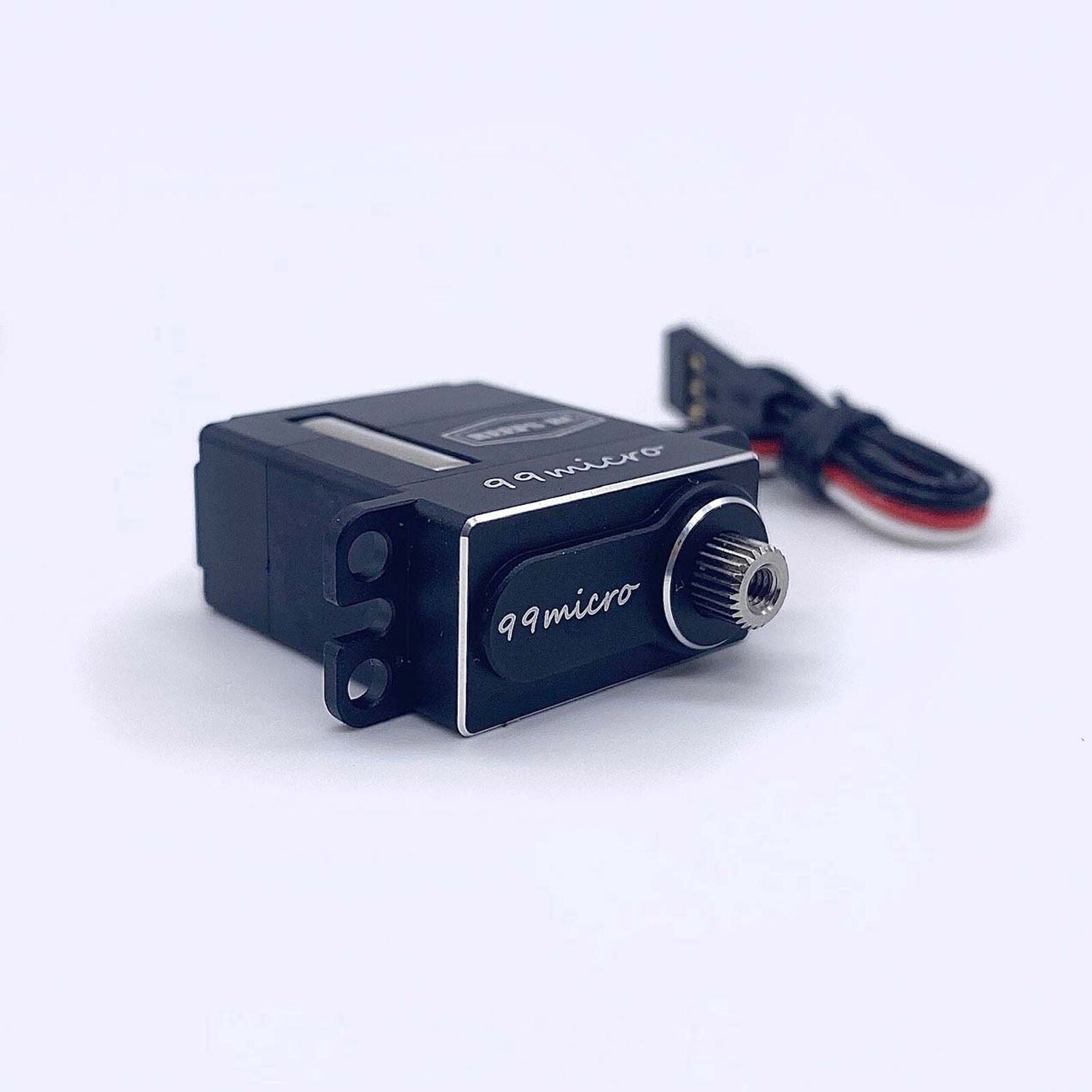

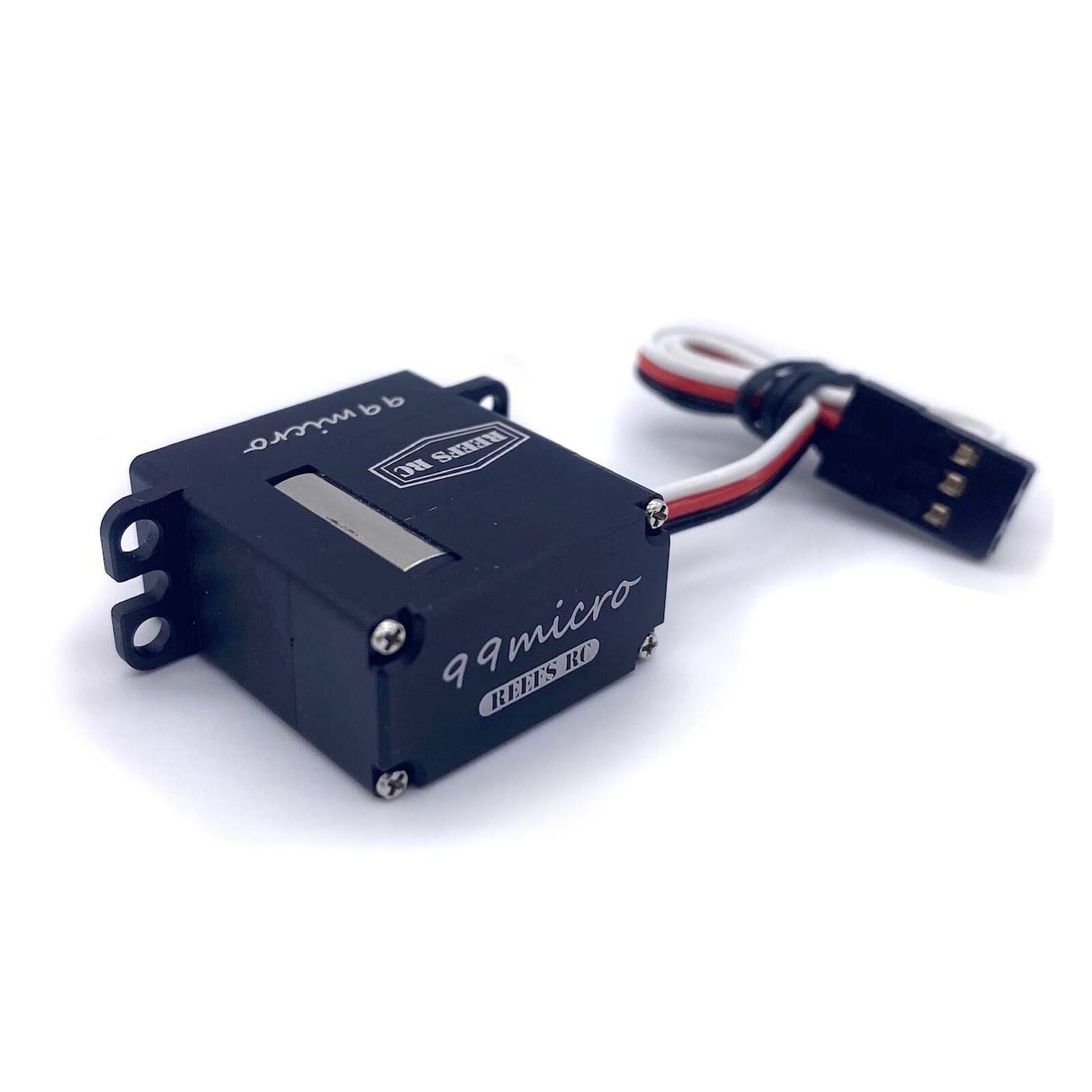

REEFS RC 99 Micro Digital Metal Gear Waterproof Servo, Black

REEFS RC 99 Micro Digital Metal Gear Waterproof Servo, Black

Available Inventory
$89.99 CAD
$89.99 CAD
Sale Sold out

REEFS RC 99 Micro Digital Metal Gear Waterproof Servo, Black Product Specs

  • Application: 1/24 Rock Crawlers
  • Bearing: Dual Ball Bearing
  • Bushing Or Bearing: Bearing
  • Connector Type: Universal
  • Current Draw Idle: 200mA
  • Current Draw Stall: 2400mA
  • Deadband: 2µs
  • Input Voltage: 6.0V ~ 8.4V
  • Maximum Servo Speed:
    • 0.11 sec/60 deg @ 6.0V
    • 0.09 sec/60 deg @ 7.4V
    • 0.08 sec/60 deg @ 8.4V
  • Maximum Servo Torque
    • 89oz/in @ 6.0V
    • 99oz/in @ 7.4V
    • 115oz/in @ 8.4V

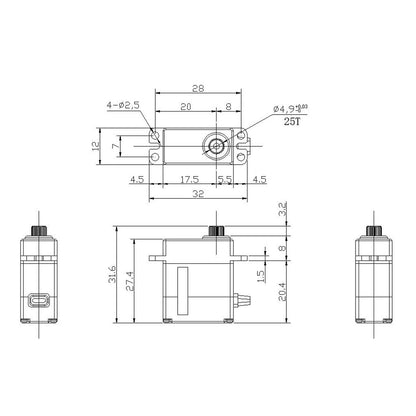

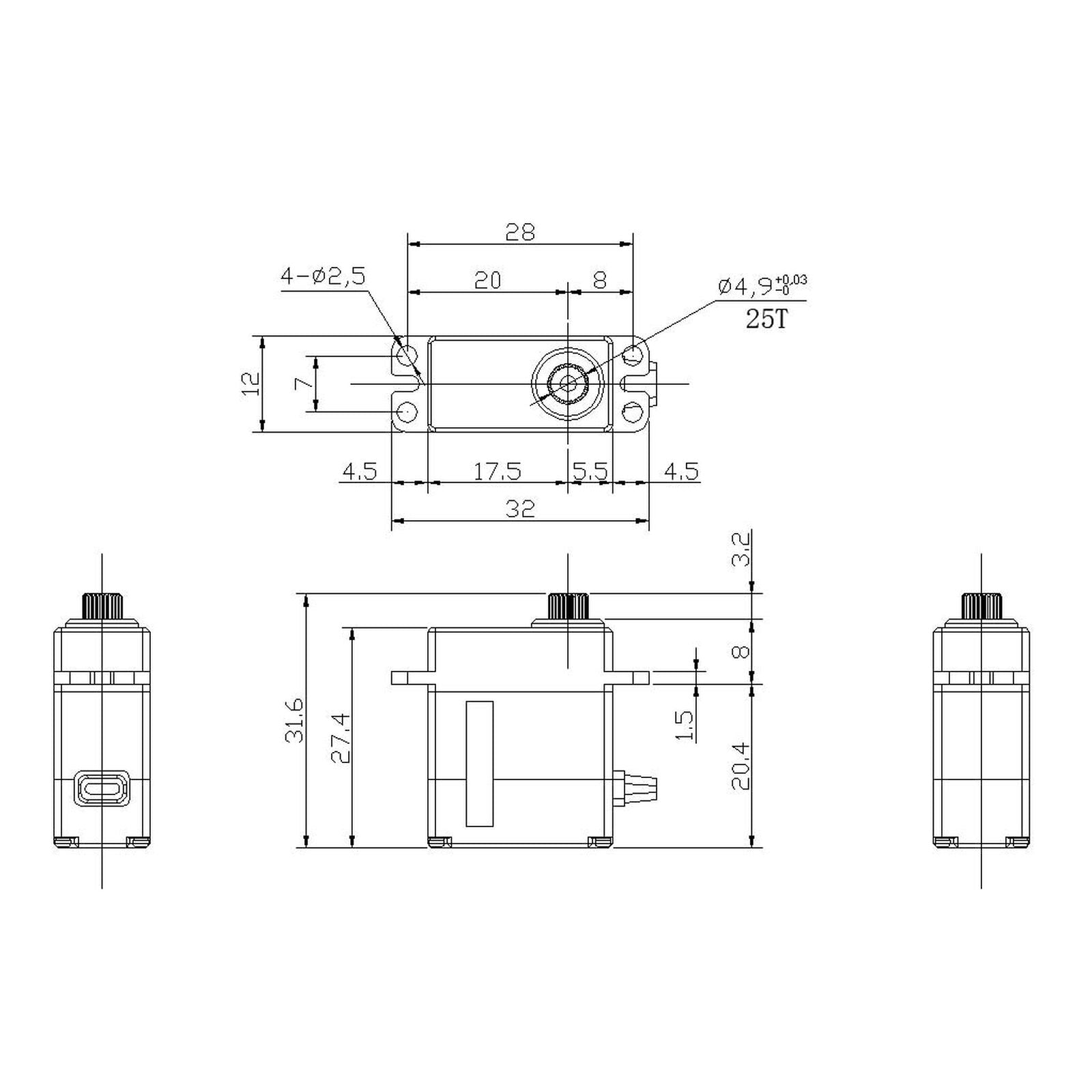

  • Product Height: 1.08" (27 mm)
  • Product Length: 0.9" (23 mm)
  • Product Weight: 0.70oz (19.8g)
  • Product Width: 0.47" (12 mm)
  • Programmable: No
  • Servo Operating Voltage: 6.0 - 8.4V (HV)
  • Servo Size Category: Mini and Micro
  • Servo Type: Digital
  • Spline Count: 25 - Tooth
  • Water-Resistant: Yes
