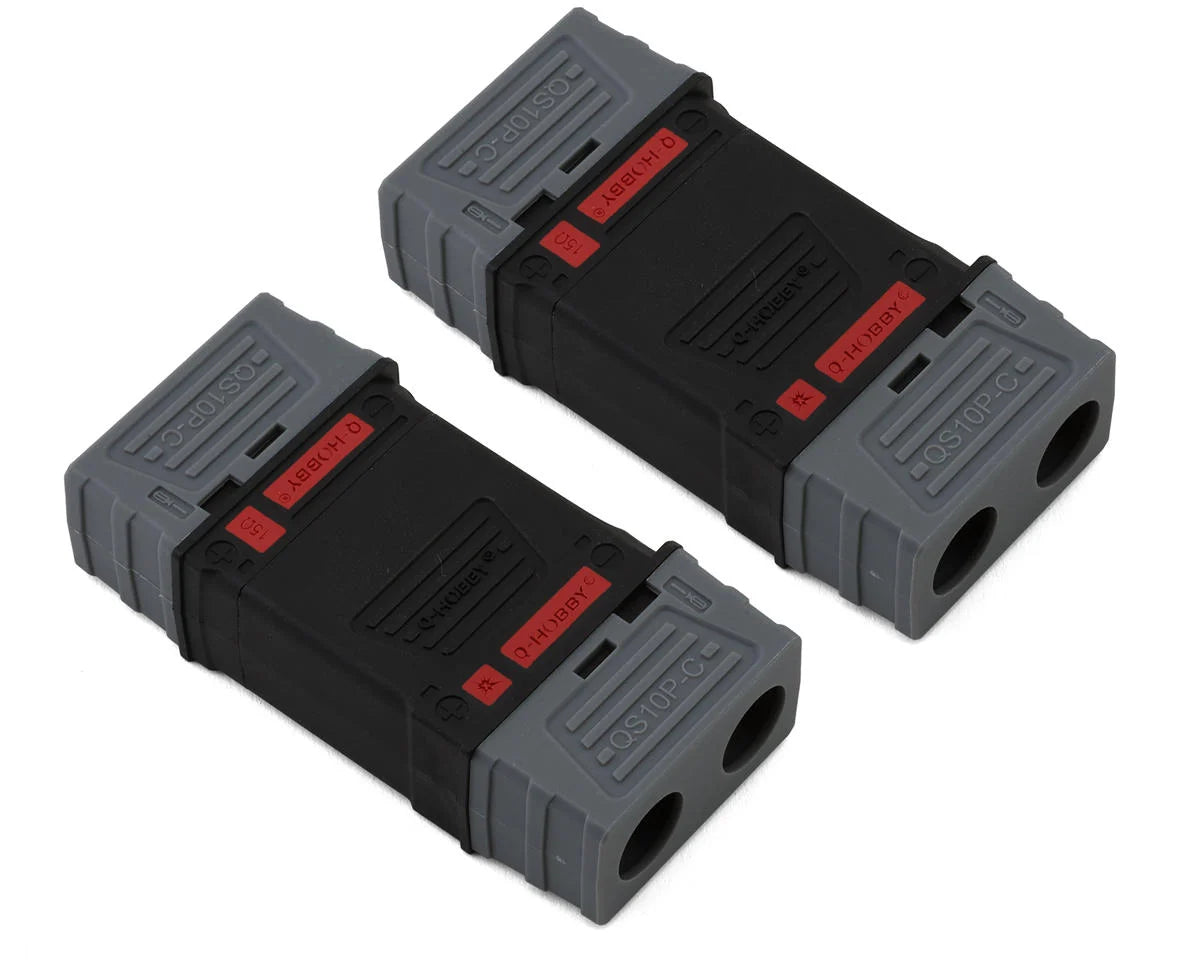

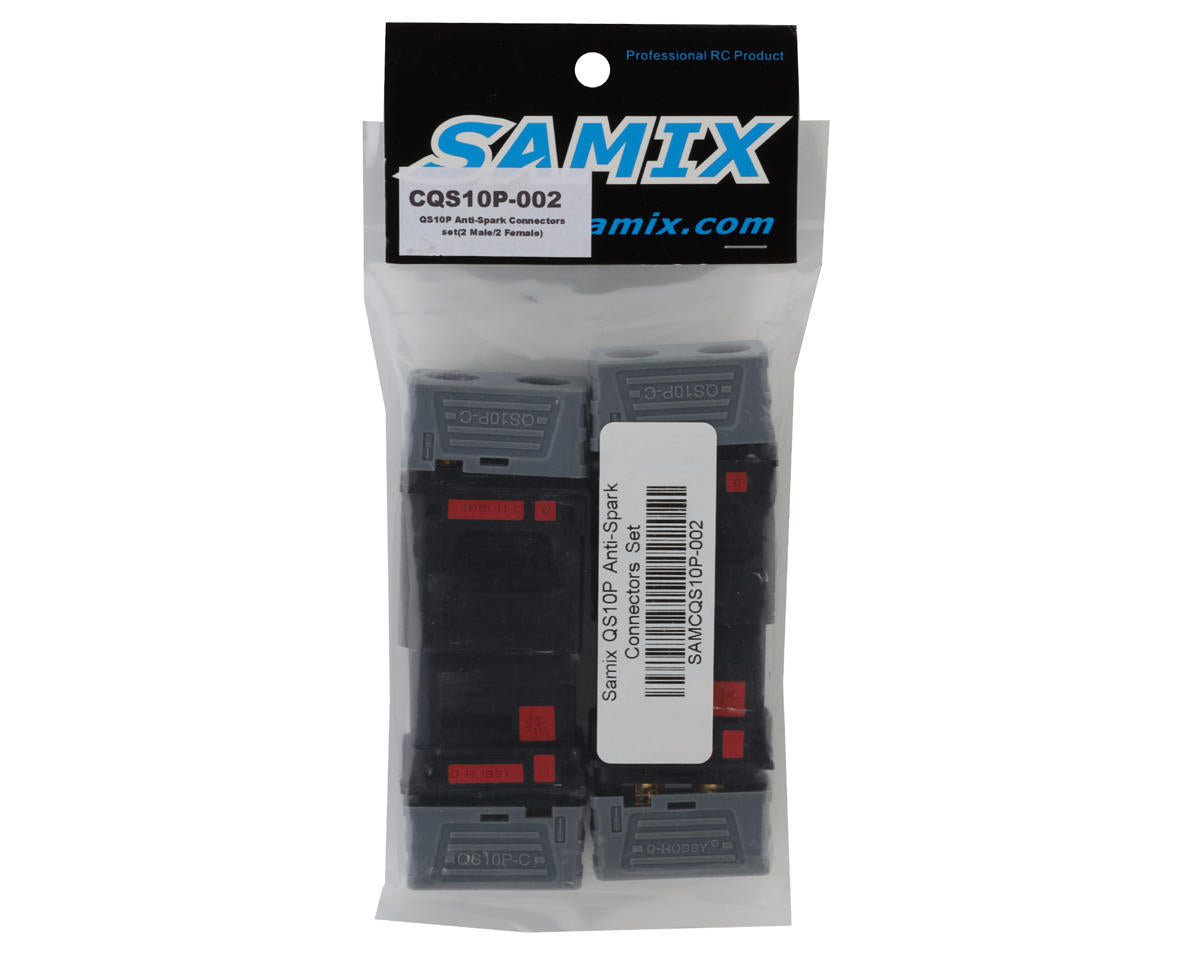

Samix QS10P Anti-Spark Connectors (2 Male/2 Female)

Samix QS10P Anti-Spark Connectors (2 Male/2 Female)

Available Inventory
Regular price $54.99 CAD
Regular price Sale price $54.99 CAD
Sale Sold out

QS10P Connectors Overview:

This is a pack of Samix QS10P Anti-Spark Connectors. Designed to handle some of the most demanding conditions, these QS10P connectors offer incredible current handling and are perfect for high voltage applications. The anti-spark design eliminates the dreaded "pop" when plugging in high voltage batteries along with helping to extend the life of your connectors. Utilizing a 10mm gold plated brass bullet style connection these QS10P connectors are built for your high current needs. Upgrade your build with a worry free, high current handling, performance battery connection with these QS10P Anti-Spark connectors from Samix.


Features:

  • Anti-Spark Technology
  • High Current and High Voltage Capability
  • Large 10mm Gold Plated Brass Bullet Connectors

Specifications:

  • Flame Retardant Rating: UL94VO
  • Contact Resistance: 0.51m
  • Rated Voltage: DC 750W (500V)
  • Peak Current: 240A
  • Constant Current: 180A
  • Temperature Range: -30c to 150c
  • Material: PA
  • Maximum Wire Size: 4-10 AWG

Includes:

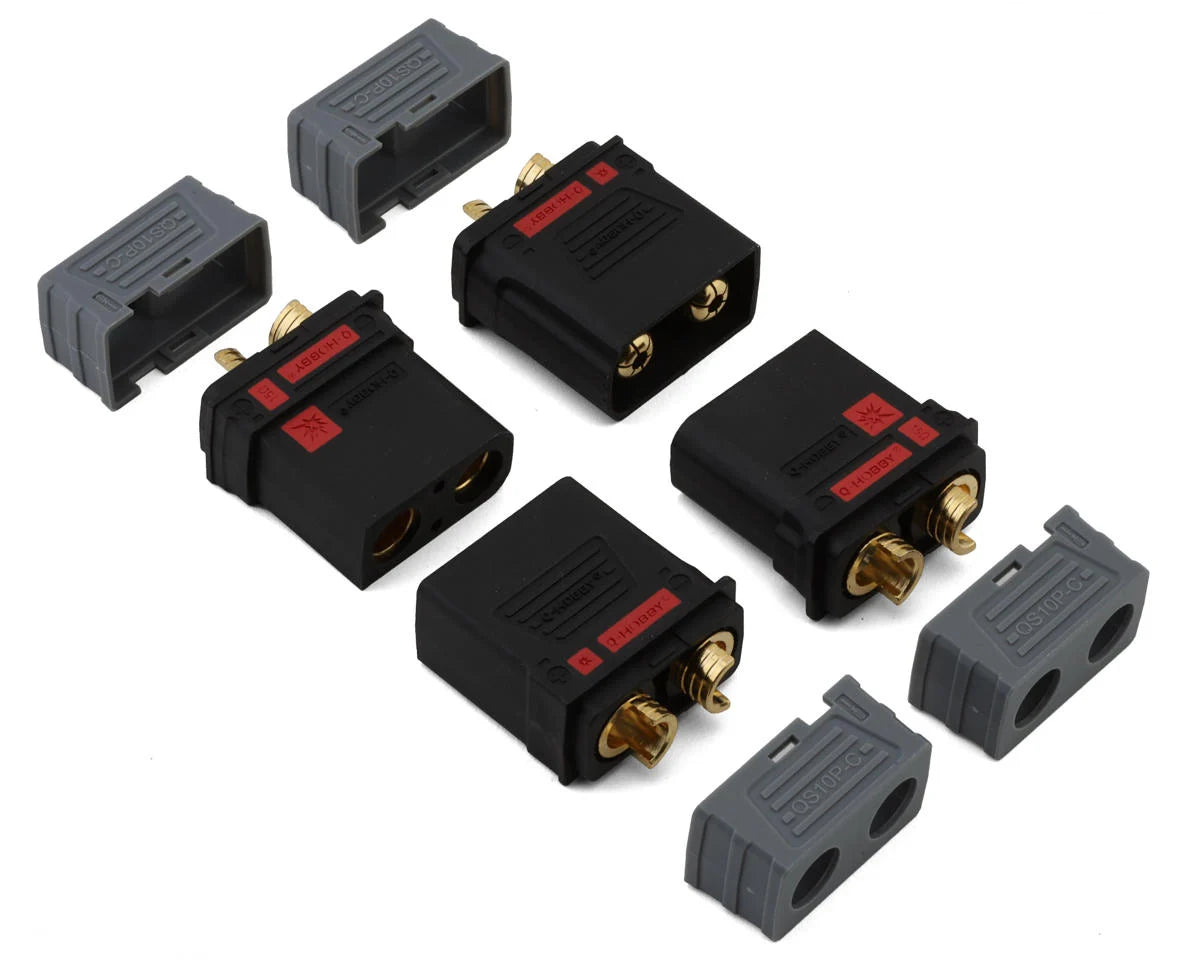

  • (2) Male QS10P Anti-Spark Connectors
  • (2) Female QS10P Anti-Spark Connectors
