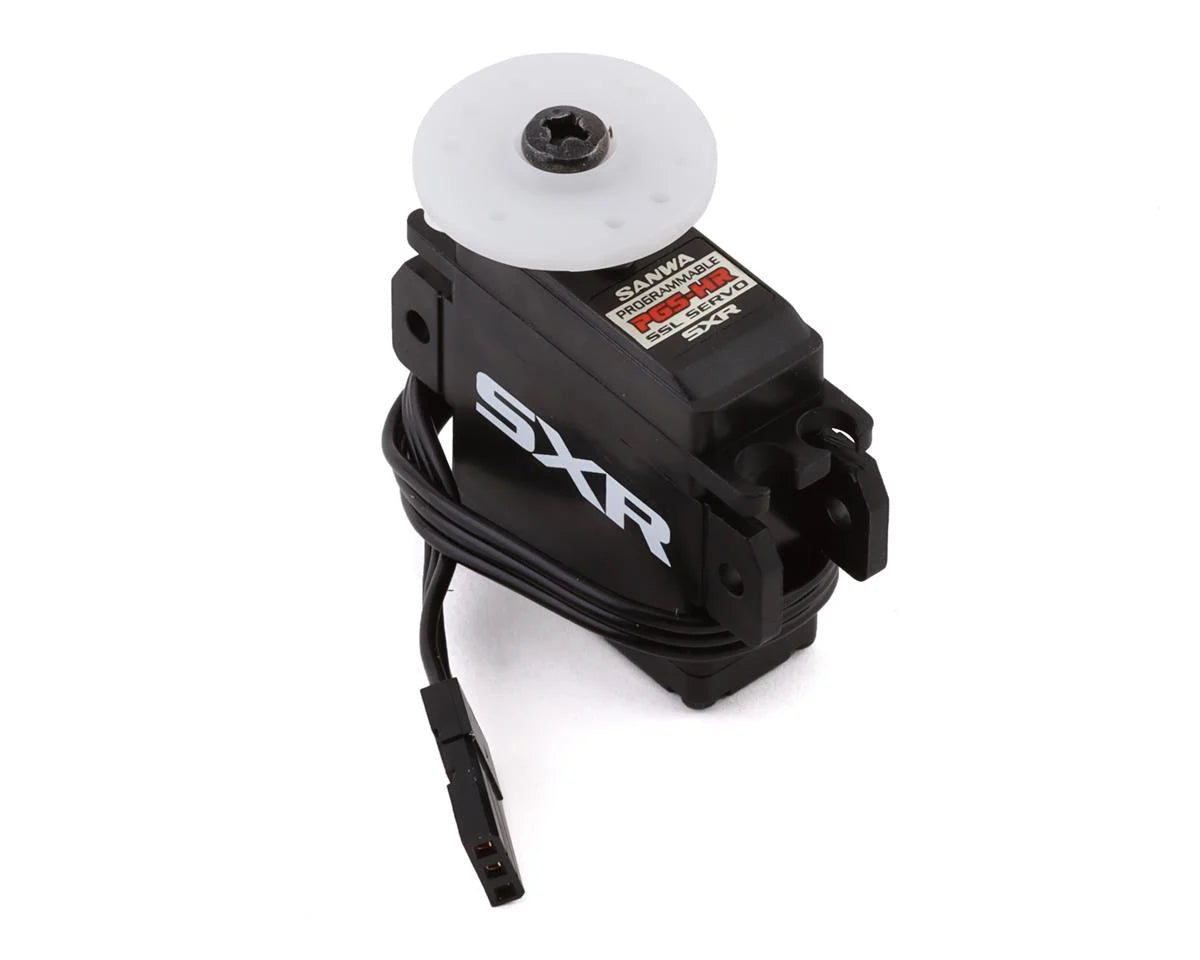

Sanwa/Airtronics PGS-HR Programmable SSL SXR Mini Servo

• FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
• SSL-COMPATIBLE PROGRAMMABLE SERVO
• # Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
• Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
• PGS SETTING GEAR-COMPATIBLE
• Specialized for 1/12 models
• LiPo (1 & 2cell) Battery Support
• Digital Servo
• Coreless Motor
• Full metal gear
• Programmable Servo to be compatible with SSL & Telemetry at Launch
• Setting Adjustment by wireless from Radio
• Setting Adjustment to connect Servo with Setting Gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.
  #Inital Setting on Setting Gear is necessary

Programming Features:

• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (BOOST Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• MV-HOLD (Power Adjustment at whole area)
• MV-FRQ (Feeling Adjustment at whole area)
• MAX-PW (MAX Duty Adjustment)

• Speed:
• 0.10 sec / 60° (6.0 V)
• 0.16 sec / 60° (3.7 V)
• Dimensions: 27.0 x 21.1 x 30.5 mm
• Torque:
• 5.8 kg?cm (6.0 V)
• 3.8 kg?cm (3.7 V)
• Weight: 24g
