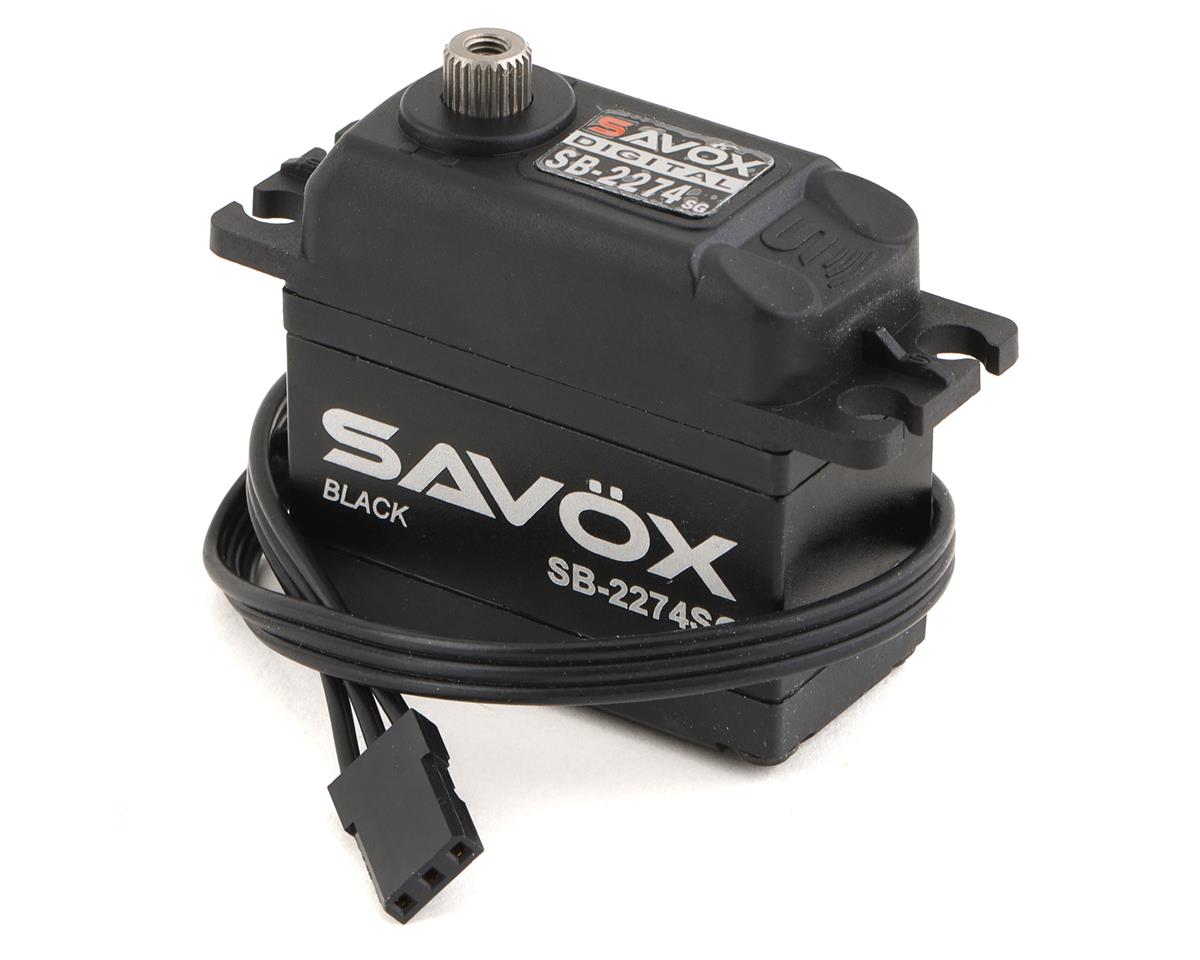

Savox SB-2274SG "High Speed" Black Edition Brushless Steel Gear Digital Servo (High Voltage)

Savox SB-2274SG "High Speed" Black Edition Brushless Steel Gear Digital Servo (High Voltage)

Available Inventory
$149.99 CAD
$149.99 CAD
Sale Sold out

Item No. SAVSB2274SGBE


The Savox SB-2274SG SB-2274SG "High Speed" Black Edition Brushless Steel Gear Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. This servo is a great option for 1/10 off road, 1/8 buggies, and large scale aircraft.


Features:
  • Unique steel gear train
  • Capable of HV operation
  • Brushless motor for smooth operation and efficiency
  • Ideal for 1/10, 1/8 buggies, and large scale aircraft
Specifications:
  • Torque:
    • @ 6v: 20.0kg/277.7oz-in
    • @ 7.4v: 25.0kg/347.2oz-in
  • Speed:
    • @ 6v: 0.105 sec/60 deg
    • @ 7.4v: 0.08 sec/60 deg
  • Dimensions: 40.3x20.2x38.7mm (LxWxH)
  • Weight: 69.0g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
