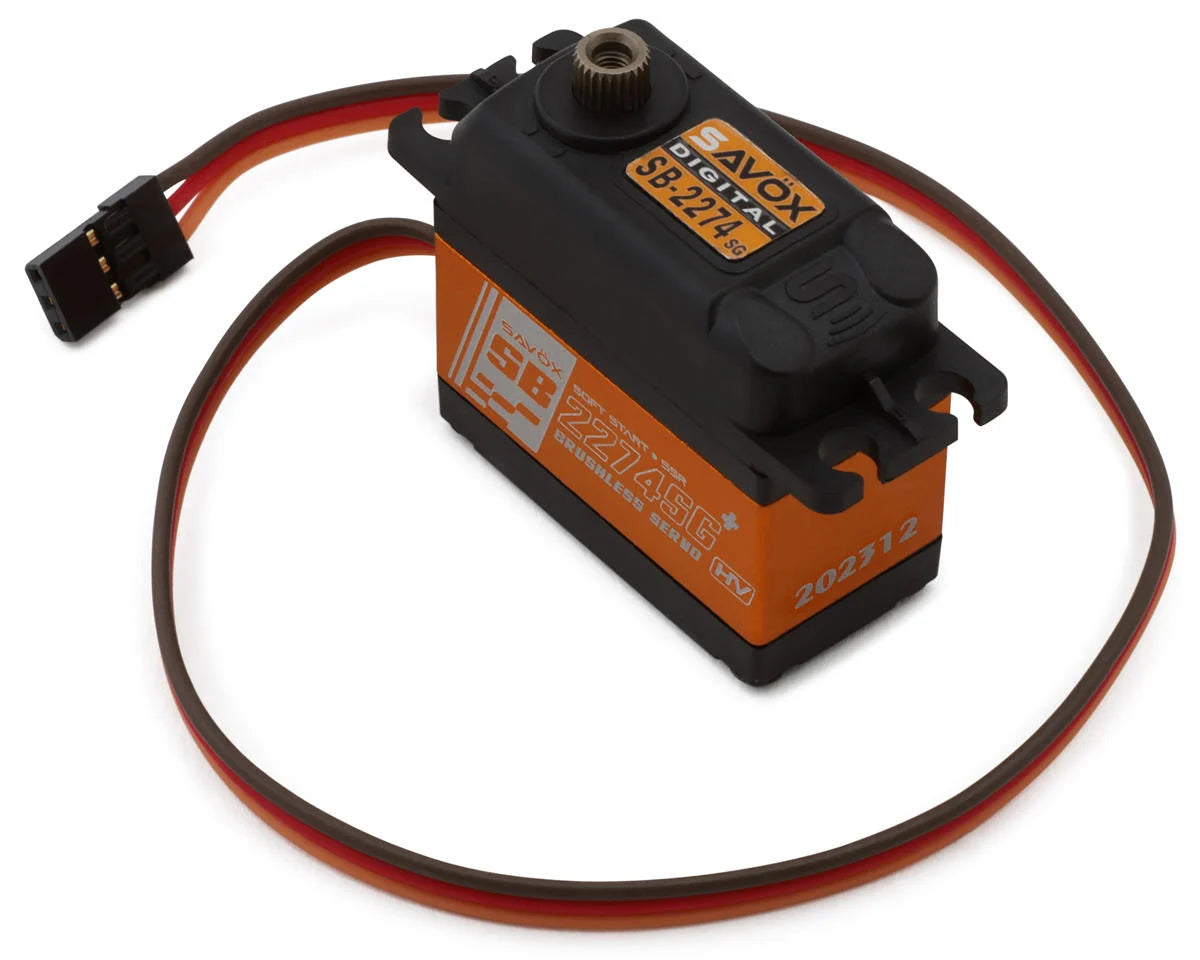

Savox SB-2274SGP "High Speed" Brushless Steel Gear Digital Servo (High Voltage)

Servo Overview:

Savox SB-2274SGP "High Speed" Brushless Steel Gear Digital Servo. This servo is engineered to deliver cutting-edge performance with its high voltage capabilities and advanced brushless motor technology. Designed for smooth operation and optimized efficiency, it features a unique steel gear train that ensures durability and longevity. With twelve-bit 4096 resolution, this digital servo provides precise control, making it ideal for 1/10 and 1/8 scale buggies as well as large-scale aircraft. Additionally, the "Plus" series includes Soft Start functionality and Sanwa SSR compatibility, further enhancing its performance.

Features:

• High voltage operation for enhanced power
• Brushless motor for smooth, efficient performance
• Twelve-bit resolution for precise control
• Steel gear train for superior durability
• Soft Start feature for gradual, controlled movement
• Sanwa SSR compatibility for advanced tuning options
• Ideal for 1/10 and 1/8 buggies, including large-scale aircraft
• Built for demanding racing and high-performance applications

Specifications:

• Input Voltage: 6-8.4V
• Speed:
  • @6V: 0.105sec/60°
  • @7.4V: 0.08sec/60°
  • @8.4V: 0.07sec/60°
• Torque:
  • @6V: 277.7oz-in
  • @7.4V: 347.2oz-in
  • @8.4V: 416.6oz-in
• Pulse/Frequency: -
• Motor Type: Brushless
• Output Shaft: 25T
• Gear Material: Steel
• Dimensions: 1.59x0.8x1.52in (40.3x20.2x38.7mm)
• Servo Lead Length: 11.81in (300mm)
• Weight: 2.43oz (69g)

Includes:

• (1) SB-2274SGP "High Speed" Brushless Steel Gear Digital Servo

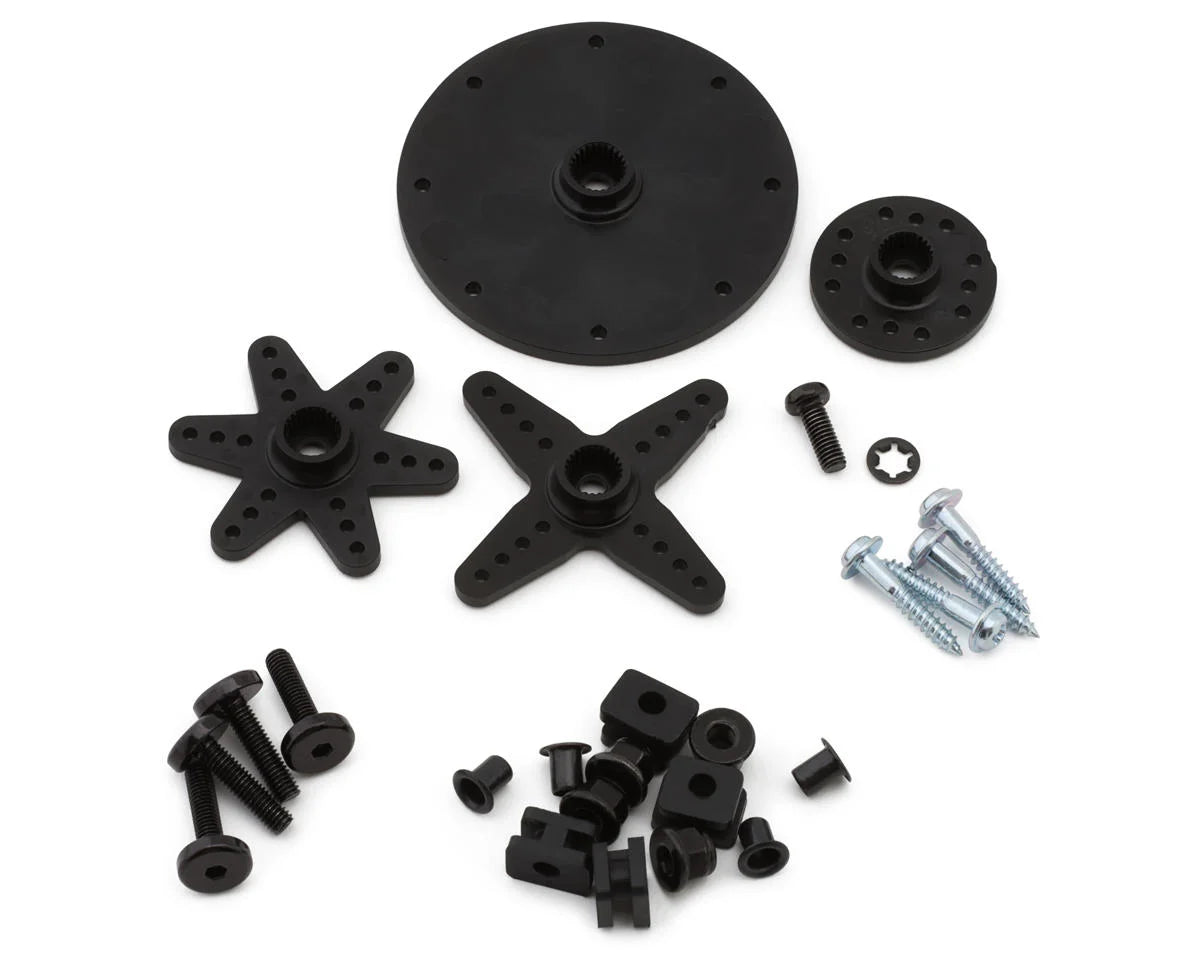

• (4) Composite Servo Horns
• Mounting Hardware
