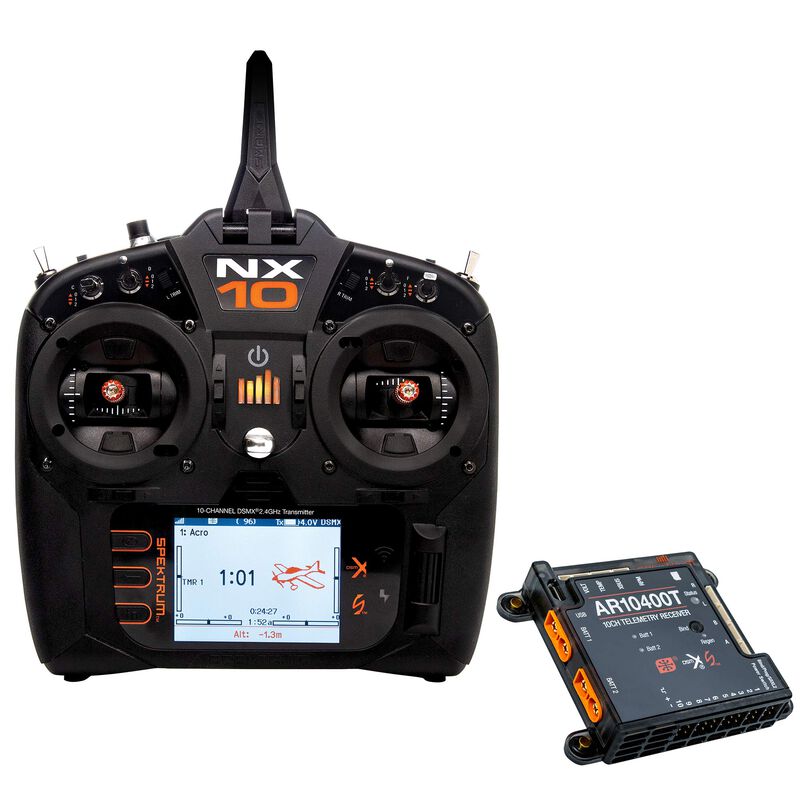

Spektrum - NX10 10-Channel DSMX Transmitter with AR10400T PowerSafe Receiver
Spektrum - NX10 10-Channel DSMX Transmitter with AR10400T PowerSafe Receiver
Couldn't load pickup availability
NX Family
Spektrum is proud to introduce the latest leap forward in Spektrum RC technology — the NX Series of aircraft transmitters. The NX6, NX8 and NX10 equipped not only with the greatest Spektrum RC flight innovations up to now, but also, with new features and advances that will take you into the next generation of radio control.
With the Spektrum™ NX series, you'll enjoy the 6-channel, 8-channel or 10-channel versatility needed to operate your models to their fullest potential and to fly complex aircraft such from EDF's to giant scale balsa airplanes. And that's just where its next-generation "NX" series advantages begin. The NX transmitters also incorporates many of the latest exclusive Spektrum™ innovations for a level of ease, efficiency and performance you'll find in no other transmitter.
NX10 10-Channel DSMX Transmitter Features
- Backlit 3.2", 320x240 display screen with multiple color palette choices and user customizable colors
- Wi-Fi connectivity for easy product registration and firmware updates
- Superb ergonomics including smooth Hall-effect sensor gimbals
- Exclusive Spektrum Airware programming software
- Proven Spektrum DSMX 2.4GHz Frequency-agile technology
- Smart Technology compatibility out of the box
- 3.7V 6000mAh 1S Lithium Ion transmitter battery and a magnetic USB Cable and Micro USB Adapter for convenient USB charging
- Integrated serial port provides power and support for 3rd party modules
- Airplane, sailplane, multi-rotor and helicopter programming
- 250 model memory
- Model templates available for BNF® aircraft

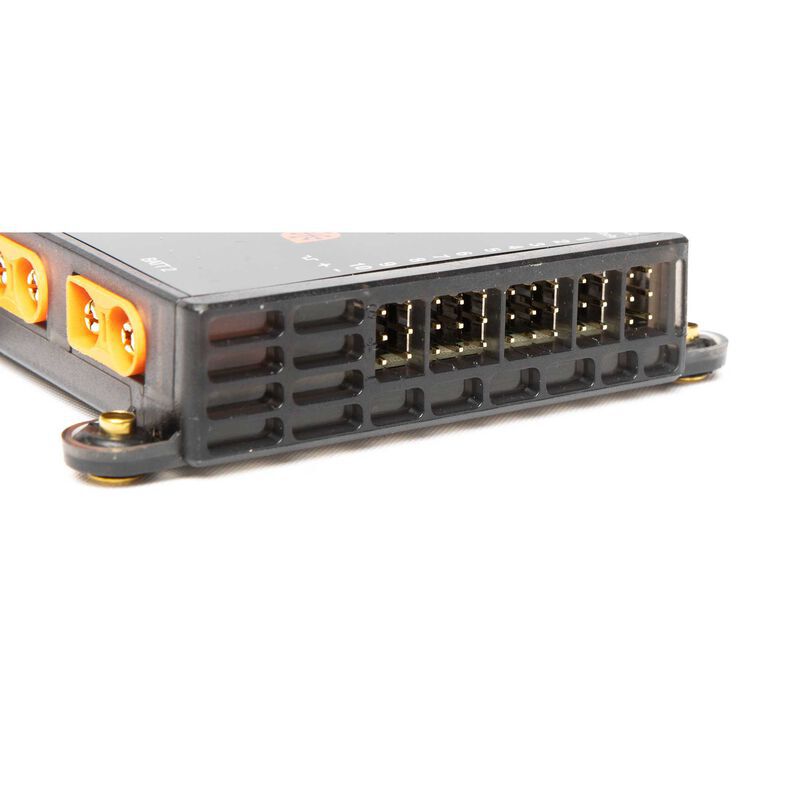

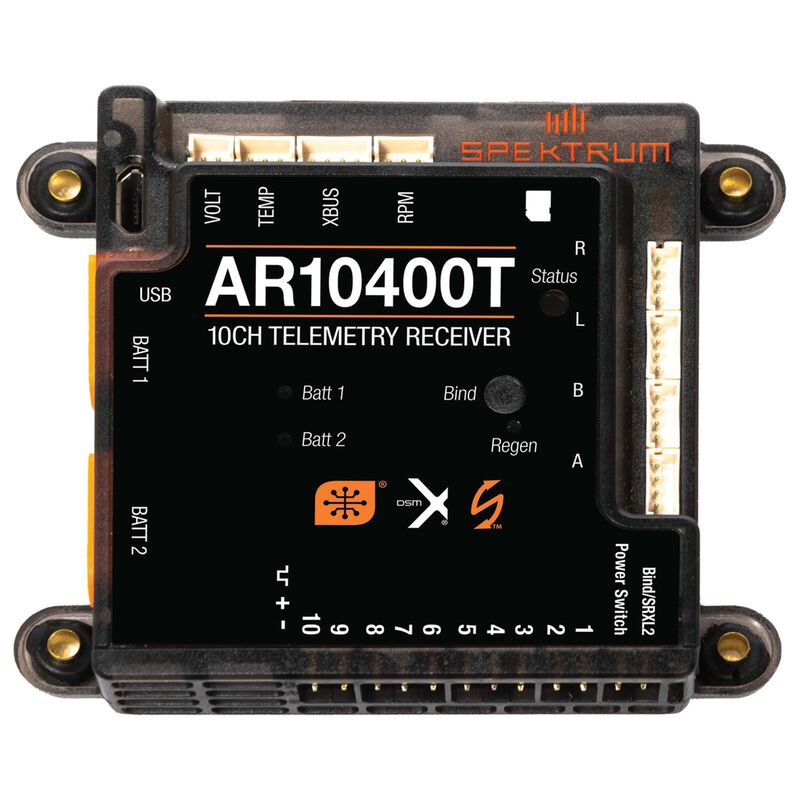

AR10400T 10-Channel PowerSafe Telemetry Receiver Features
- Patented PowerSafe™ redundancy system with dual battery input ports with IC3 connectors. Perfect for power hungry aircraft and high current servo applications drawing up to 35A (50A max burst)
- Forward programming allows for easy adjustments to failsafe settings, servo frame rate settings and more
- Micro USB port for easy product registration and firmware updates
- 12V capable for use with 12 volt servo applications (must be activated via Forward Programming)
- Integrated battery capacity monitor automatically reports the battery capacity used during flight and can reset automatically when fully charged batteries are installed
- Integrated Black Box telemetry log saves all telemetry data automatically when a Micro SD card is installed (Micro SD card not included)
- Integrated status LED provides helpful information during start up, warnings and mode indicators
- SRXL2 connectivity for easy, one wire connection to supported devices
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
- Receiver pack energy & voltage sensor and flight log telemetry data available without the need for additional sensors
- Full range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
- Included Soft Switch allows servo current to be routed around the switch, so if the switch fails for any reason, power to the system will not be interrupted.
- Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
- Capable of high-speed 11ms frame rates
- Binding is easier than ever with four options to initiate the bind process
- Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
- Optional fourth SRXL2 remote receiver can be added for additional RF path redundancy (sold separately)
- Compatible with all Spektrum DSM2 and DSMX transmitters
- Not compatible with Spektrum AS3000 Stabilization Module
- Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)
SMART TECHNOLOGY
The Spektrum™ NX10 comes ready to provide the advantages of state-of-the-art connectivity right out of the box by supporting the innovative, all-in-one telemetry of Spektrum™ Smart batteries, ESCs and receivers. Smart Technology ensures that all of your model's electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component's status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.
LARGE 3.2" COLOR DISPLAY
Navigating menus and viewing telemetry data is made easy by the NX8 transmitter's large, 3.2" backlit color display that delivers information in crisp, 320x240 resolution detail. The display screen also allows you to choose from multiple color palettes or create your own.
WI-FI AND USB CONNECTIVITY
When the NX10 transmitter is connected to Wi-Fi, you can complete product registration and download firmware updates instantly. A micro USB port allows you to charge the internal Li-Ion battery with the included USB-to-Micro magnetic USB cable and magnetic adapter. It can also be used to recognize accessory devices and provide a convenient link to your PC or laptop. Connect the transmitter to your computer and you can control most simulators, including the RealFlight® RC Flight Simulator.*
*Currently compatible only with RF8 and RF9.
VOICE ALERTS
With voice alerts, the NX10 lets you keep tabs on important functions without ever taking your eyes away from your aircraft. They can be programmed to call out what flight mode you've chosen or to report telemetry information on demand. If an alarm goes off, you won't have to look at the transmitter display to see what's happening — the NX10 will tell you. A headphone jack allows you to monitor voice alerts using earbuds so you don't bother other pilots
MODEL TEMPLATES
Model programming templates for BNF® aircraft that include desired switch assignments, rates, curves and other details are already saved into the NX10 transmitter. You can also simplify the process of creating set-ups for new models by selecting Template and starting from a generic model template of the appropriate model type.

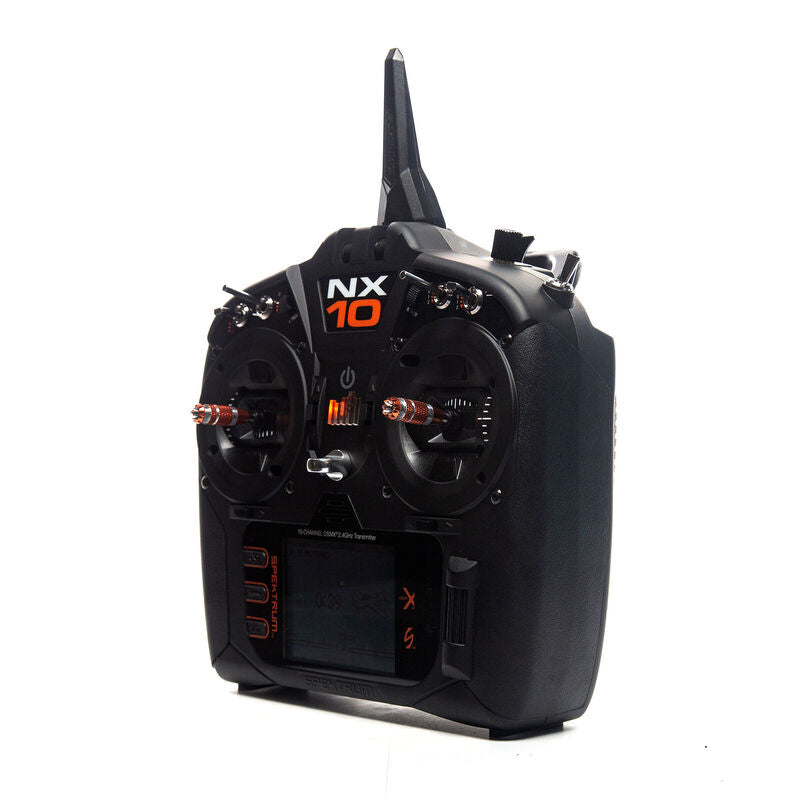

ERGONOMIC DESIGN
The NX10 transmitter's Hall-effect sensor gimbals offer long-lasting precision with an ultra-smooth feel that's conveniently adjustable from the front of the transmitter. Weight distribution and switch placement have been optimized for comfort and precise, fatigue-free control. Rubber grips make it easy to hold the radio securely. Its antenna folds conveniently to the front for compact storage and transport. It also helps to prevent accidental powering on by partially blocking the power button.
EASY PROGRAMMING
The NX10 offers 14 programmable mixes and up to 10 different flight modes. You can easily navigate program menus with the transmitter's roller-wheel scrolling interface with Clear, Back, and Function buttons. Function bar options include Telemetry Ticker Tape for following real-time telemetry data and "My List" to give you quick access to the menu items you select, organized however you wish. You'll have quick, uncluttered access to the features you use the most.
SPEKTRUM™ AIRWARE™ SOFTWARE
Exclusive Spektrum™ AirWare™ programming software includes all of the functions that an expert pilot could want, but you don't have to be an expert to use them. It also offers benefits not available on other systems, such as Enhanced Wing Type programming that automatically configures the necessary mixes; Active Gyro and Governor Trim to fine-tune rotor speed and gyro gain while in flight; and Electronic E-Ring to limit servo travel automatically if the sum of the cyclic and pitch values exceeds servo limits.
HIGH CAPACITY Li-ION TRANSMITTER BATTERY
The NX10 transmitter includes a long-lasting 3.7V 6000mAh 1S Lithium Ion battery and a magnetic USB Cable and Micro USB Adapter for convenient USB charging.
DSMX® TECHNOLOGY
The NX10 transmitter is built around proven Spektrum™ DSMX® 2.4GHz frequency-agile technology — the most advanced spread spectrum RC technology to date. By adding the agility of unique frequency shifts to the superior interference resistance of a wideband signal, and by limiting those shifts to a smaller portion of the 2.4GHz band, DSMX® transmitters provide on-channel interference protection that's second to none.
