Spektrum - RC AR6260 DSMX 6-Channel Carbon Fuselage Receiver
Spektrum - RC AR6260 DSMX 6-Channel Carbon Fuselage Receiver

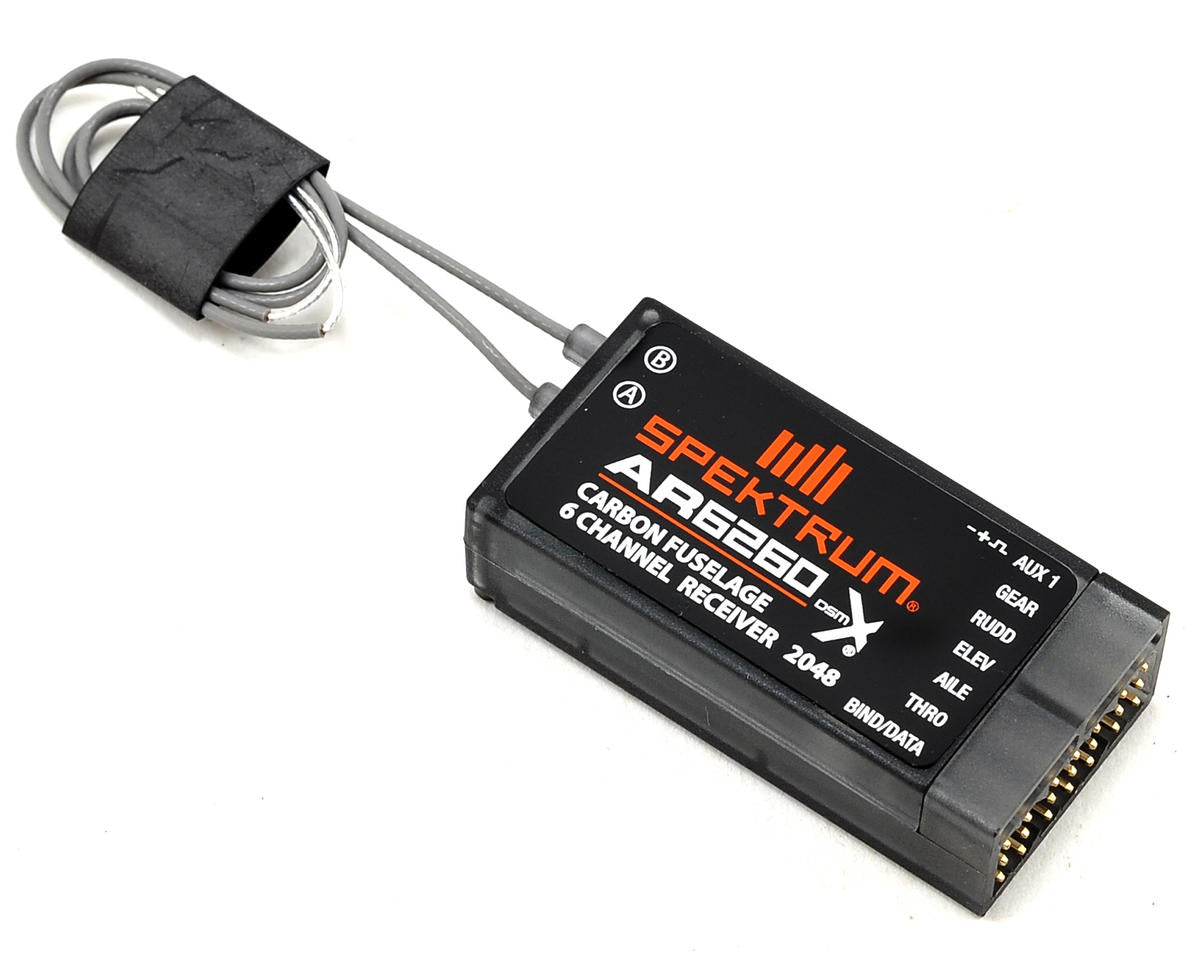

This is the Spektrum AR6260 DSMX 6-Channel Carbon Fuselage Receiver. The AR6260 is a full-range receiver that was specifically designed for carbon fiber fuselage applications. Carbon fiber can create an RF shielding effect that significantly reduces signal range when using conventional receivers and antennas. The AR6260 features a special antenna design that overcomes these RF limitations by letting you route the antennas through the side of the fuselage to the outside.
Features:
- 6-channel receiver optimized for carbon fiber fuselage installations
- Narrow case design for sailplanes, hotliners and similar models
- Two 7-inch (186mm) coaxial antennas
- Two internal receivers for dual path diversity
- Preset failsafe on all channels
- QuickConnect technology
- 2048 resolution
- Telemetry capable
- Flight Log compatible
- Includes lightweight polycarbonate case
Specifications:
Antenna Length: 7.3in (186mm)
Flight Log Compatible: Yes
Model Type: Airplane
Type: Carbon fuselage receiver
# of Channels: 6
Modulation: DSM2/DSMX
Range: Full
Resolution: 2048
Band: 2.4GHz
Length: 1.9 in (47.0mm)
Width: 0.9 in (23.5mm)
Height: 0.5 in (12.8mm)
Weight: 0.4 oz (11 g)
Voltage Range: 3.5-9.6V
