Traxxas

Traxxas Ford Raptor 1/10 2WD Replica Truck RTR - Fox

Traxxas Ford Raptor 1/10 2WD Replica Truck RTR - Fox

Available Inventory
$369.99 CAD
$369.99 CAD
Sale Sold out
Scale

Item No. TRA58094-8



  • Officially-licensed Ford® F-150® Raptor® clipless body
  • 4-amp USB-C fast charger
  • Traxxas Power Cell NiMH battery with iD®
  • Top speeds in excess of 30 mph using the included optional 23-tooth pinion gear*
  • Powerful Titan® 12T 550 motor with internal cooling fan
  • Iinnovative water-sealed electronics
  • TQ 2.4 GHz transmitter
  • XL-5™ waterproof electronic speed control
    • Innovative water sealed design
    • High current handling
    • Forward/reverse/brake
    • EZ-Set® push-button setup
    • Thermal shutdown protection
    • LiPo, and NiMH compatible with two-stage low-voltage detection
    • Three easy-to-program drive profiles
    • Equipped with patented Traxxas High-Current Connectors
  • Digital high-torque waterproof steering servo
    • 125 oz-in of torque and 0.16-second speed
  • O-ring sealed watertight receiver box keeps the micro receiver dry
  • Long-wheelbase fiber-composite chassis
    • 13.2 inch wheelbase
    • Over 3.5 inches of ground clearance
  • Easy access battery compartment
  • Adjustable battery hold down accepts 6 and 7-cell flat packs and 7-cell hump packs
  • Chassis nerf bars absorb impact and support the body
  • Scale front and rear tube-style bumpers
  • Body mounts incorporate reinforced washers for additional body support
  • Efficient Magnum 272™ metal-gear transmission with ball bearings
  • Sealed gearbox protects the transmission with beefed up motor guard for extra protection
  • Torque-Control™ slipper clutch system
  • External gear cover with easy slipper access
  • Reliable composite planetary gear differential with a steel ring gear
  • Heavy-duty telescoping U-joint driveshafts and yokes
  • Adjustable steel turnbuckles and captured rod ends
  • Captured rod ends won't pop off for superior durability
  • Precision hex hardware throughout
  • Efficient rubber-sealed ball bearings
  • Fully adjustable Ultra Shocks™ with X-ring technology
  • Progressive rate white powder coated shock springs feature a race-tuned responsive spring rate
  • Aggressive all-terrain scale tires include performance foam inserts and they come pre-glued on 2.2″ split-spoke wheels with satin-chrome "beadlock" detail
  • Backed by unparalleled Traxxas support and parts availability

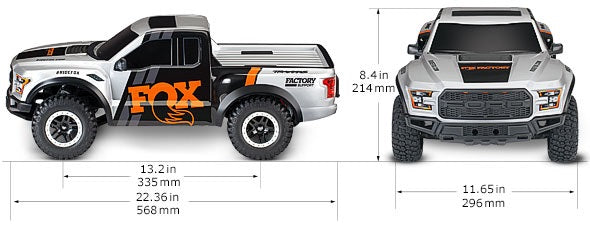

FORD F-150 RAPTOR (58094-8) SPECS
Length ­ 22.36 inches (568 mm)
Front Track ­ 11.65 inches (296 mm)
Rear Track ­ 11.65 inches (296 mm)
Weight ­ 76.2 ounces (2.16 kg)
Height (overall) ­ 8.425 inches (214 mm)
Wheelbase ­ 13.2 inches (335 mm)
Front Shock Length ­ Long
Rear Shock Length ­ XXLong
Front Tires ­ Scale All-Terrain; 2.2″
Rear Tires ­ Scale All-Terrain; 2.2″
Front Wheels ­ 2.2″ Satin-Finish "beadlock" with black split-spoke center
Rear Wheels ­ 2.2″ Satin-Finish "beadlock" with black split-spoke center
Speed Control Type ­ Waterproof XL-5 ESC
Motor (electric) ­ Titan® 12T 550 (12-turn)
Gear Ratio (internal) ­ 2.72 (final drive: 12.58)
Differential Type ­ Steel Composite Planetary
Gear Pitch ­ 48-Pitch
Transmission ­ Metal Gear Magnum 272™
Steering ­ Bellcrank
Chassis Type ­ Modified Tub
Chassis Material ­ Composite Nylon
Center Ground Clearance ­ 3.5 inches (89 mm)
Top Speed ­ 30+mph*
Skill Level ­ 1
Radio System ­ TQ™ 2.4GHz (2-channel)
Included Charger ­ Traxxas 4-amp DC Peak Detecting Fast Charger
Included Batteries ­ Traxxas Power Cell NiMH Battery with iD®
Required Batteries ­ 4 "AA" (transmitter)
XL-5 (WATERPROOF) ESC SPECIFICATIONS
Input voltage: ­ 6-7 Cells (7.2 to 8.4 volts DC)
Case Size: ­ 31 mm x 55 mm x 15.5 mm
Weight: ­ 2.44 Ounce
Motor Limit: ­ 15-turns** (540 Size)
12-turns** (550 Size)
On Resistance Forward: ­ 0.007 Ohms
On Resistance Reverse: ­ 0.014 Ohms
BEC Voltage: ­ 6.0 VDC
BEC Current: ­ 1A
Power Wire: ­ 14 Gauge / 5″
Input Harness Wire: ­ 26 Gauge / 9"
PWM Frequency: ­ 1600 Hz
Low Voltage Detection (LVD): ­ 2-Stage indicators, switchable (on or off)
Thermal Protection: ­ Thermal shutdown
Profile selection: ­ Sport Mode:
    100% FWD, 100% brakes, 100% REV
Race Mode:
    100% FWD, 100% brakes, no REV
Training Mode:*
    50% FWD, 100% brakes, 50% REV
Single-button setup: ­ Yes, Traxxas EZ-Set®
­ *Patented **Properly Geared
Ford F-150 Raptor (#58094-8) Chassis (Ground Clearance)

MODEL 58094-8: Fully assembled, waterproof, Ready-To-Race®, with TQ™ 2.4 GHz radio system,
XL-5™ electronic speed control, 8.4 V NiMH 3000 mAh Power Cell™ battery, 4-amp USB-C fast charger, and pre-painted Raptor® clipless body.
