Traxxas Ford Raptor R w/ Brushless VXL-3s ESC RTR
Traxxas Ford Raptor R w/ Brushless VXL-3s ESC RTR
Item No. TRA101076-4BLUE/RED/BLACK
REQUIRES BATTERY AND CHARGER
Raptor R Styling. Pro Scale® Performance.

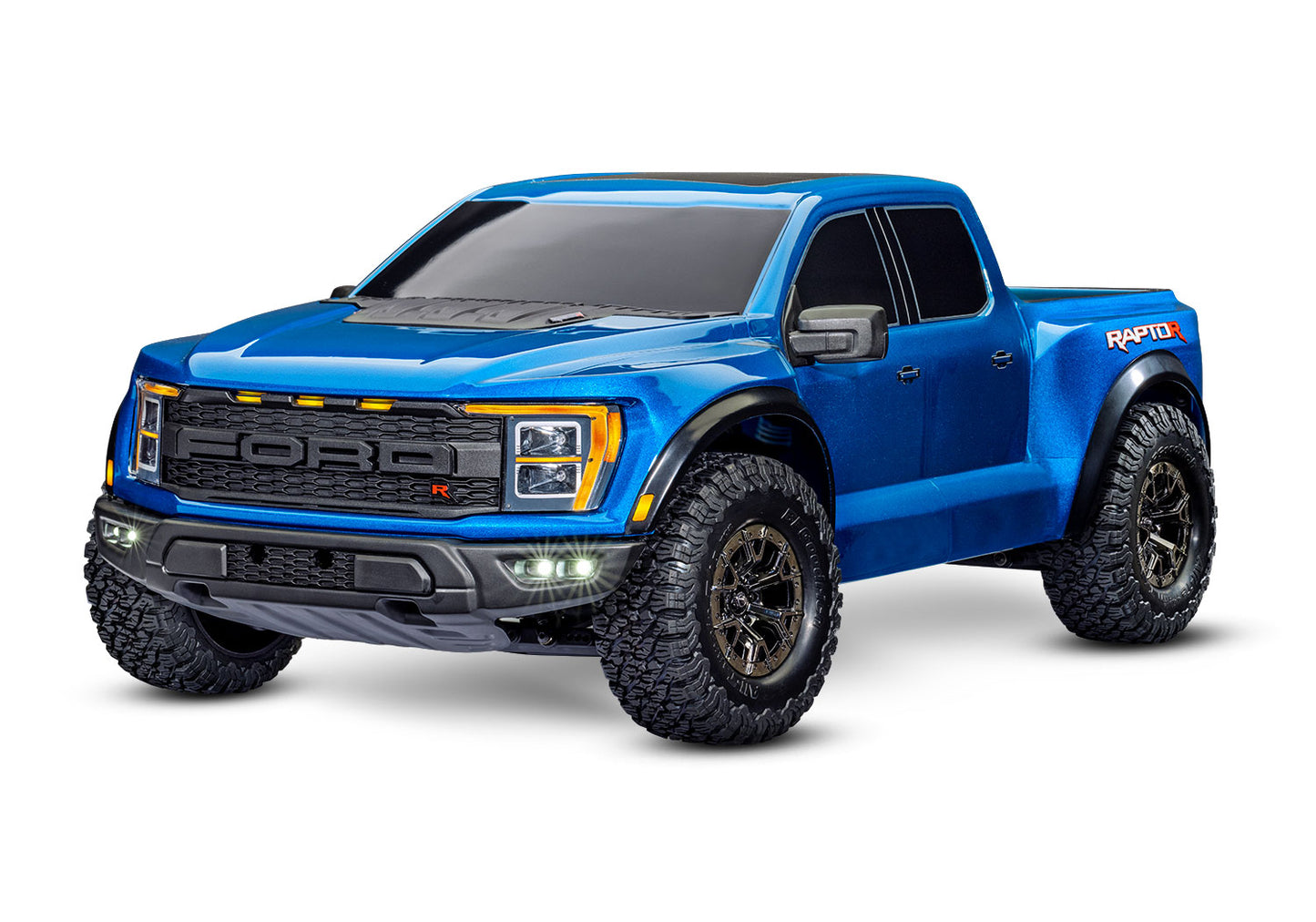

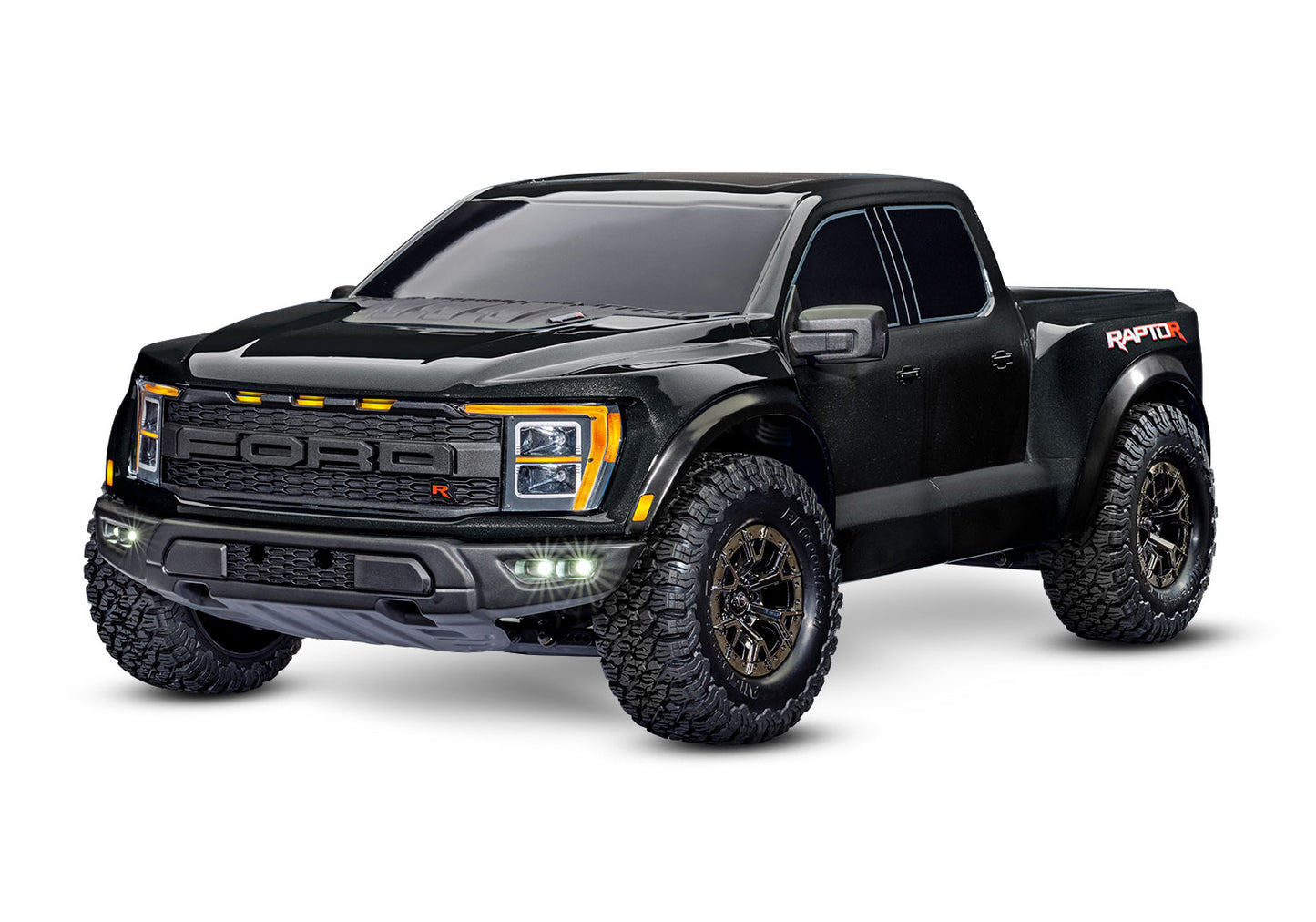

The Traxxas Raptor R™ is the newest member of the innovative Traxxas Pro Scale® lineup. Superb scale detail and proportion combine with 4X4 traction and extreme Velineon® brushless horsepower to faithfully capture the Raptor R™ driving experience. Only Traxxas Pro Scale® delivers both the exacting realism and unbeatable speed and durability performance drivers demand.
Pro Scale Design
Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R. The Traxxas Raptor R stops the show with a Ford-licensed body and molded replica parts for maximum scale authenticity. Velineon® brushless horsepower and an extreme heavy duty 4WD driveline give Raptor R performance credentials to match its stunning looks.
Extreme Heavy Duty Upgrades

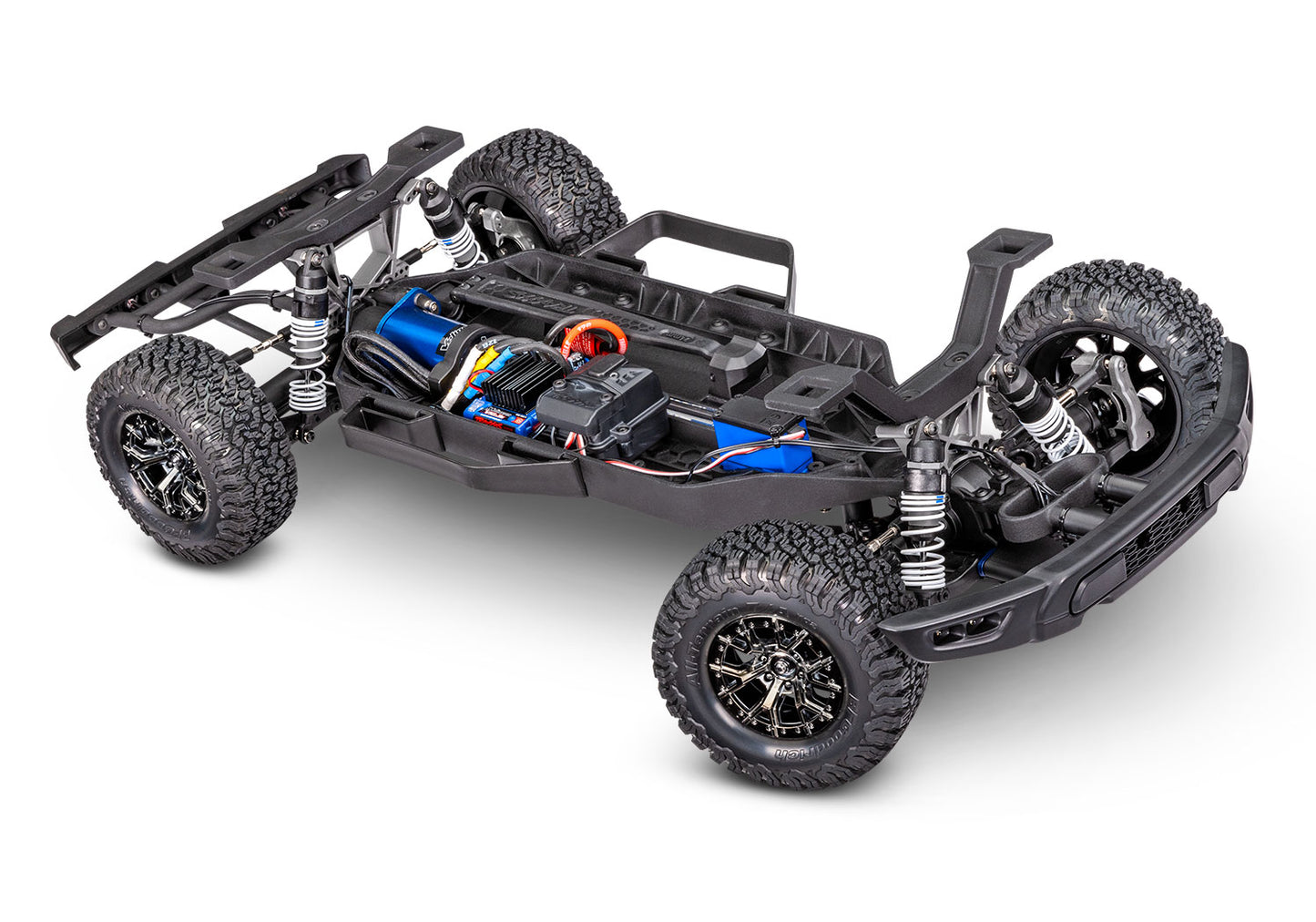

The Extreme Heavy Duty Upgrade Kit comes pre-installed on Raptor R to withstand the brutal punishment of high-power brushless systems. Raptor R’s driveshafts and suspension components are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.
Clipless Body Mounting
High-flying stunts and 60+ mph desert speed runs won’t upset Raptor R’s tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
Length: | 24.98 inches (637 mm) |
---|---|

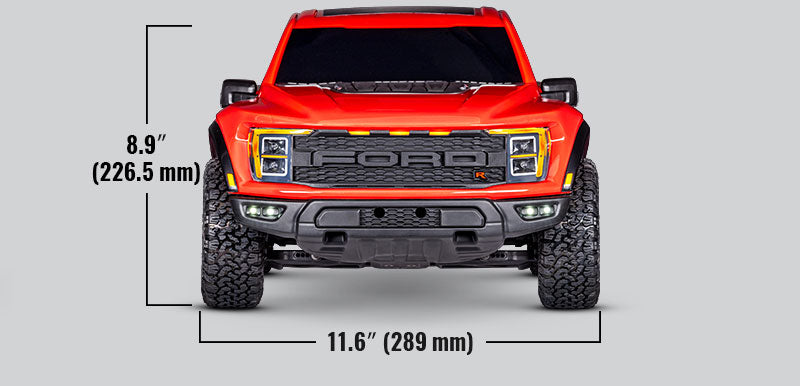

Front Track: | 11.63 inches (289 mm) |
Rear Track: | 11.63 inches (289 mm) |
Ground Clearance: | 1.38 inches (35 mm) 2.05 inches (52 mm) (center) |
Weight (no battery): | 6.05 pounds (2.74 kg) |
Height (overall): | 8.91 inches (226 mm) |
Wheelbase: | 15.11 inches (384 mm) |
Shock Length (front): | 3.45 inches (88 mm) - Long |
Shock Length (rear): | 3.98 inches (101 mm) - XX-Long |
Tire Diameter: | 4.5″ x 1.9″ (114 mm x 48 mm) |
Wheel Diameter: | 2.2″ (56 mm) (inner) 3.0″ (76 mm) (outer) |
Speed Control: | Velineon® VXL-3s™ |
Motor (electric): | 3500 KV Velineon brushless |
Overall Drive Ratio: | 37/13 ring/pinion gear ratio |
Differential Type: | Hardened steel bevel, sealed, limited slip |
Gear Pitch: | 32 pitch |
---|---|
Chassis Structure/Material: | Composite tub |
Drive System: | Shaft-driven 4WD |
Steering: | Dual bellcrank with integrated servo saver |
Tires: | Licensed BFGoodrich® All-Terrain T/A® KO2 2.2″ pre-glued with foam inserts |
Tire Diameter: | 4.31 inches (114 mm) (front and rear) |
Wheels (front/rear): | Licensed 2.2″ Ford® factory option wheel |
Wheel Diameter: | 2.2 inches (56 mm) outer 3.0 inches (76 mm) inner |
Radio System: | 2-channel, TQi™ 2.4 GHz transmitter with TSM® receiver |
Servo: | 2075 waterproof digital servo |
Top Speed: | 60+ MPH with optional included gearing and 3s LiPo |
Skill Level: | 1 |
Battery Compartment (L/W/H): | 165 mm (6.49″) x 50 mm (1.95″) x 23/26 mm (1.02″/0.90″) |
Required Batteries: | 4 “AA” (transmitter), 7.4V OR 11.1V LIPO AND CHARGER |
