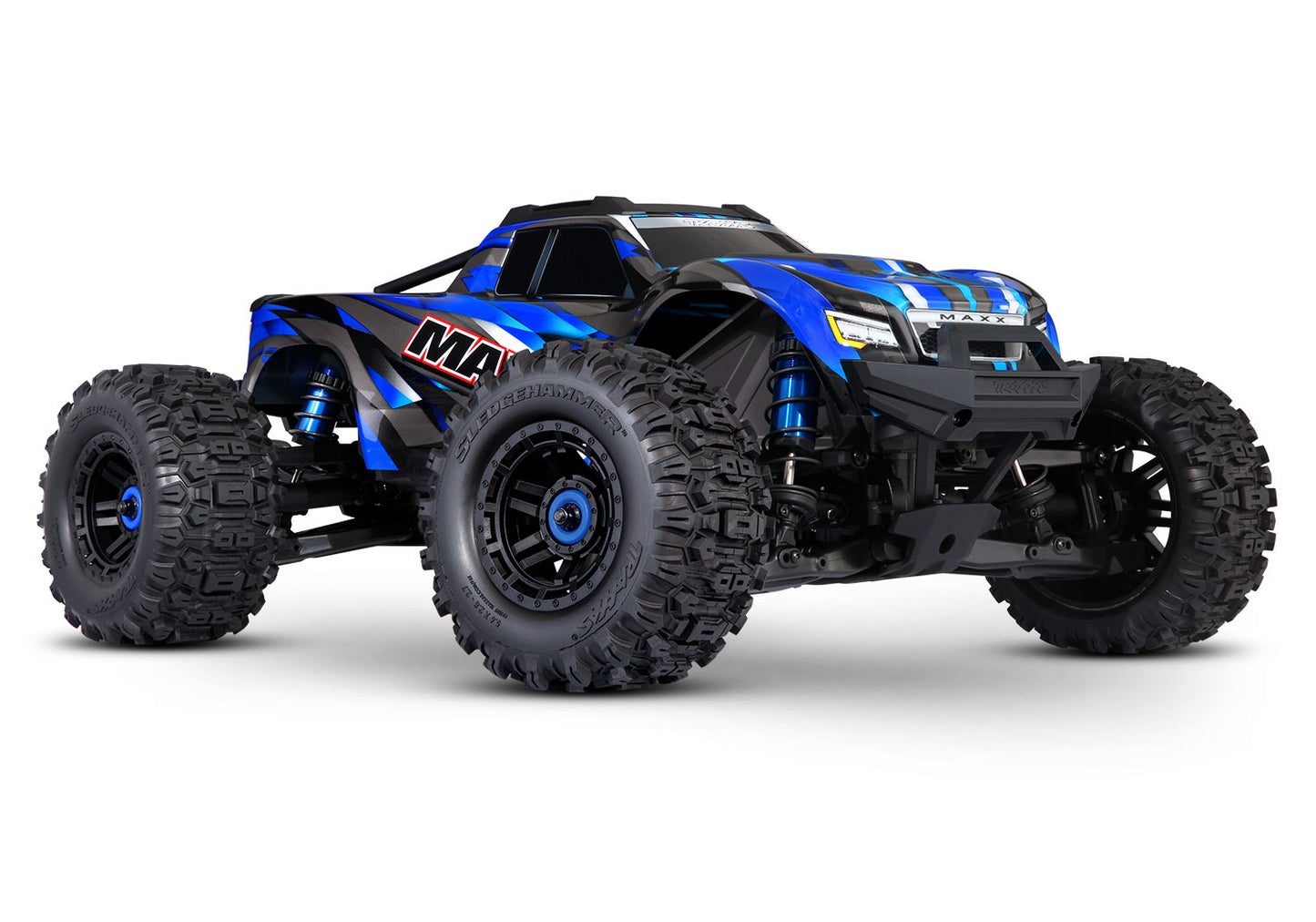

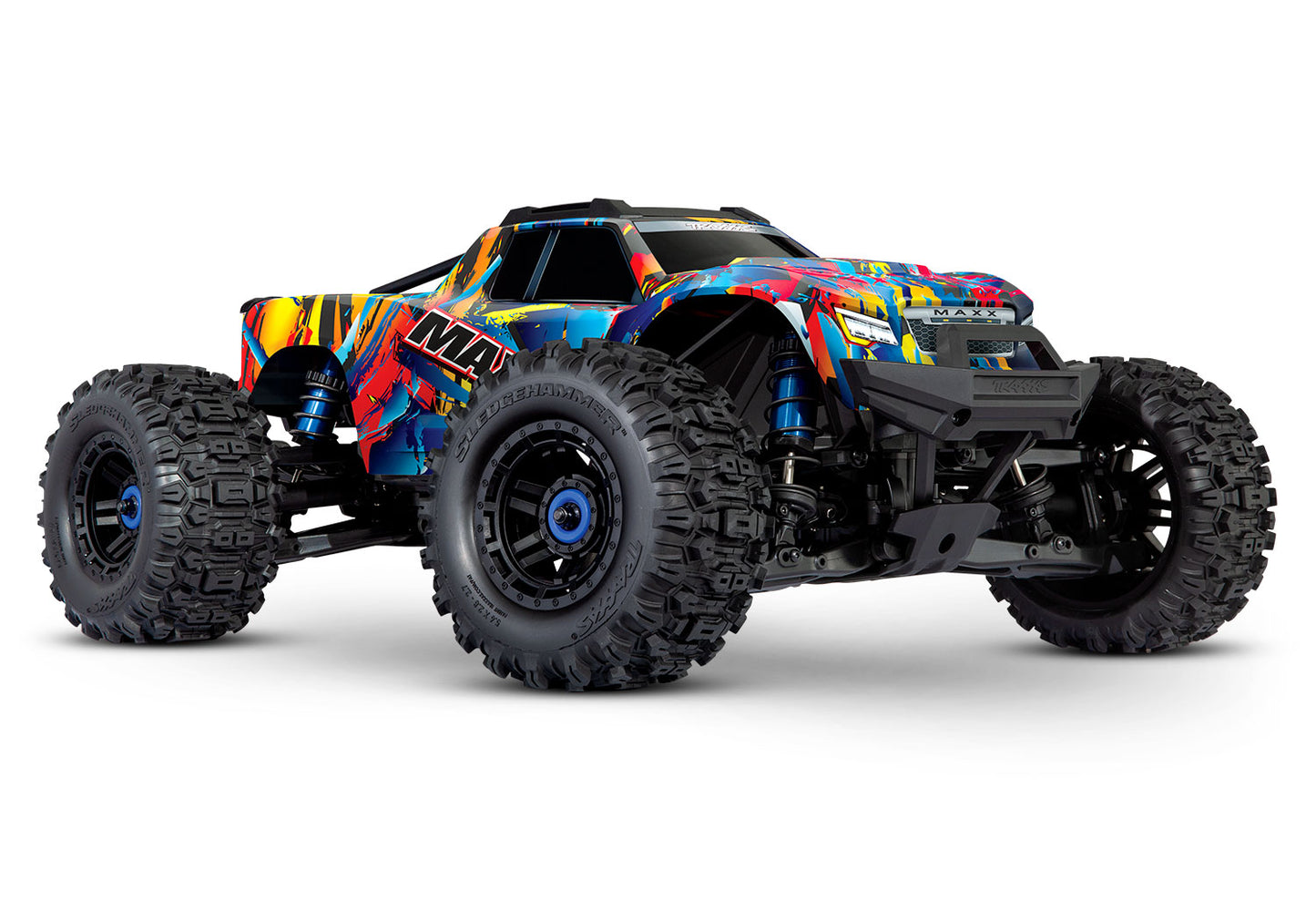

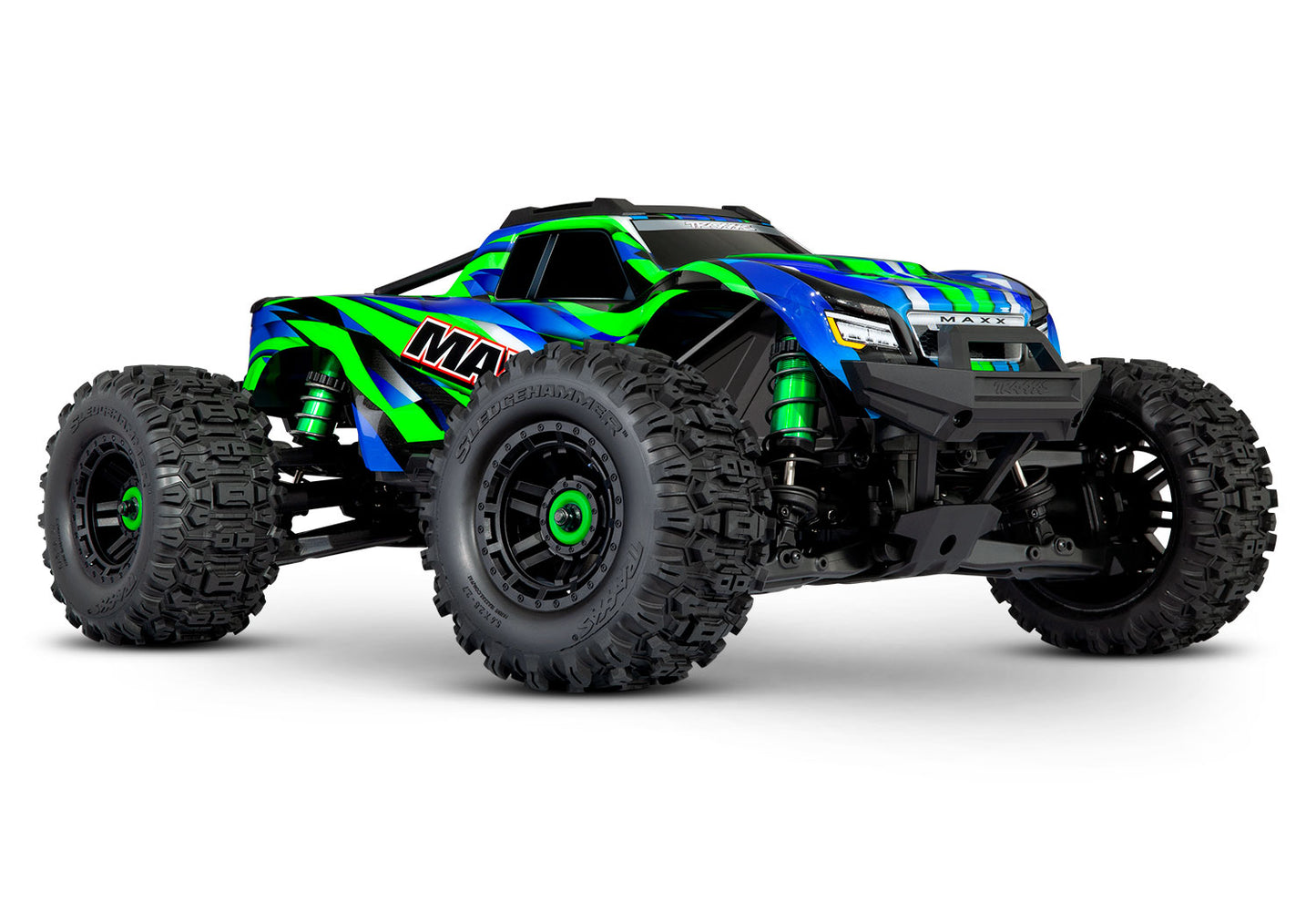

Traxxas Maxx 4S V2 Brushless Monster Truck w/ WideMaxx
Traxxas Maxx 4S V2 Brushless Monster Truck w/ WideMaxx
Item No. TRA89086-4BLUE/GREEN/RED/RNR
Needed to Complete:
- (1) 3-4S LiPo Battery with Traxxas ID connector
- (1) Compatible Traxxas LiPo Balance Charger
- (4) AA Batteries
MEET THE NEW MAXX
The Traxxas X-Maxx forever changed the face of RC monster trucks. Its radical new design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. There is really nothing else like it... until now. Meet the all-new 1/10 Traxxas Maxx. Maxx expertly packages X-Maxx's innovative design elements into a lighter, more compact, more ferocious beast that is ready to take speed and strength to new levels of extreme intensity. Let the fun begin!
THE MAXX EXPERIENCE
Extreme power. Extreme durability. Extreme fun! This is the foundation that the Maxx Experience is built upon. With a new Maxx platform that is smaller and lighter, Traxxas engineers took the speed to 60+ mph, tuned it for even higher performance, and doubled-down on strength and durability. Maxx is once again reshaping monster truck fun and excitement.
60+ MPH MAXX MUSCLE
Traxxas Velineon brushless power hits hard with massive 4s punch and effortless wheelies on demand. Maxx feels like an unstoppable force of nature as top speeds reach an awe-inspiring 60+ mph. Advanced 32-bit microprocessor-control constantly monitors the output for efficient, long-running performance. The high-output 540XL motor features a beefy, 5mm shaft, aluminum heat sink, and a powerful fan. Of course it's all fully protected with Traxxas' innovative waterproofing.
TRAXXAS TOUGH
Maxx is engineered to withstand extreme punishment and intense driving action. Impact absorbing suspension arms soak up the hits with ease. The heavy-duty driveline components have been proven in vehicles larger and heavier than Maxx, so there is plenty of strength to spare. The Maxx chassis absorbs and dissipates impact energy across the entire structure. Huge threaded-aluminum GT-Maxx shocks with large diameter shafts manage suspension damping. Maxx invites you to explore new ways to drive hard and have fun!
INNOVATION
Traxxas engineering and innovation makes all the difference to separate the amazing from the ordinary.
DETAILS
Look anywhere on the Maxx truck and it becomes clear that no detail was overlooked to provide the best possible performance.
Vehicle Specs | |
---|---|
Length: | 21.60 inches (549mm) |
Front Track: | 14.50 inches (368mm) |
Rear Track: | 14.50 inches (368mm) |
Ground Clearance: | 1.92 inches (49mm) |
Weight: | 9.7 lbs (4.4kg) |
Height (ride): | 9.12 inches (232mm) |
Wheelbase: | 12.96 inches (329mm) |
Shock Length: | 4.89 inches (129.2mm) |
Tire Diameter: | 5.51 inches (140mm) |
Wheels Diameter: | 2.8 / 3.6 inches (71 / 91mm) |
Speed Control: | Velineon VXL-4s |
Motor (electric): | 540XL (2400 kV) |
Transmission: | Single-Speed |
Overall Drive Ratio: | 11.86 (24 / 50) |
Differential Type: | Sealed, hardened steel bevel, limited slip |
Gear Pitch: | Module 1.0 |
Chassis Structure/Material: | Composite Modular Tub |
Brake Type: | Electronic |
Drive System: | Shaft-driven 4WD |
Steering: | Double-shear bellcrank |
Radio System: | TQi 2.4GHz Transmitter with TSM receiver |
Servo: | Torque: 285oz-in. |
Top Speed: | 60+ MPH with 4S LiPo battery and optional gearing (sold separately) |
Skill Level: | 4 |
Battery Tray: | 162mm L x 45mm W x 43mm H |
Required Batteries: | 4 "AA" (transmitter) |
Motor Specs | |
Type: | 2400 kv sensorless brushless |
Weight: | 317g (11.18oz) |
Length: | 3.58 inches (91mm) |
Diameter: | 1.41 inches (36mm) |
Connector Type: | Traxxas 6.5mm |
ESC Specs | |
Input Voltage: | 3S-4S LiPo (11.1V - 16.8V) |
Case Size: | 2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm) |
Weight: | 201g (7.09oz) |
BEC Voltage: | 6.0 V |
BEC Current Continuous: | 10 A |
BEC Current Peak: | 20 A |
Motor Connectors: | Traxxas 6.5mm bullet connectors |
Battery Connectors: | Traxxas High-Current Connectors |
Power Wire: | 10-gauge Maxx Cable |
Ports: | RX input, auxiliary fan, Traxxas accessory port |
