Slash 4X4's Traxxas Velineon Brushless Power system defines a whole new generation of outrageous electric power. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precise throttle control. For the uninitiated, prepare yourself... the sheer brutal power combined with the Slash 4X4's four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s components work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. It delivers the ultimate in efficiency, speed, and run-time along with refined control. It's brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required!
Slash 4X4 comes fully-assembled and Ready-To-Race® with the TQi 2.4GHz radio system, Velineon brushless power system, and clipless pre-painted body. Simply add the battery or completer pack of your choice to start the full-throttle action! With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun
MODEL 68286-4: Fully assembled, Ready-To-Race® with Traxxas Stability Management (TSM)®,
TQi™ 2.4 GHz radio system, Velineon® brushless power system,
and clipless race replica painted body.
* With optional gearing and 3s LiPo battery (items sold separately)

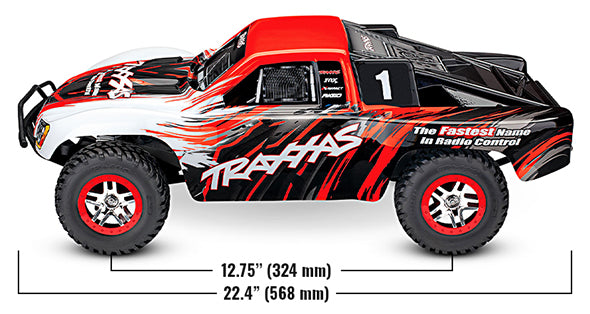

| Length: |
|
23.36 inches (568 mm) |
| Front Track: |
|
11.65 inches (296 mm) |
| Rear Track: |
|
11.65 inches (296 mm) |
| Center Ground Clearance: |
|
2.83 inches (72 mm) |
| Weight: |
|
93.1 ounces (2.64 kg) |

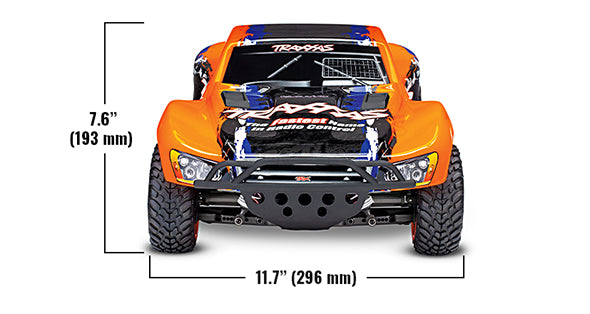

| Height (overall): |
|
7.60 inches (193 mm) |
| Wheelbase: |
|
12.75 inches (324 mm) |
| Shock Length: |
|
Long (front), XXLong (rear) |
| Tires: |
|
Traxxas 2.2 inch pre-glued with foam inserts |
| Tire Diameter: |
|
4.31 inches (109.5 mm) (front and rear) |
| Wheels (front/rear): |
|
2.2 inch Split-Spoke, black or red beadlock |
| Wheel Diameter: |
|
2.2 inches (56 mm) outer
3.0 inches (76 mm) inner |
| Speed Control Type: |
|
VXL-3s™ Electronic Speed Control |
| Motor (electric): |
|
Velineon® 3500 brushless |
| Overall Drive Ratio: |
|
11.82 (stock, out-of-box) |
| Differential Type: |
|
Hardened steel bevel, sealed, limited slip |
| Gear Pitch: |
|
32 |
| Chassis Structure/Material: |
|
Molded tub / Nylon composite |
| Drive System: |
|
Shaft-driven, direct drive 4WD |
| Steering: |
|
Dual-bellcrank with integrated servo saver |
| Radio System (transmitter) |
|
TQi™ 2.4GHz (2-channel) |
| Radio System (receiver) |
|
Traxxas Stability Management |
| Top Speed: |
|
60+mph* |
| Skill Level: |
|
1 |
| Battery Tray Dimensions:** |
|
165 mm x 49.5 mm x 23 mm, 25 mm |
| Required Items: |
|
NiMH or LiPo battery, charger, 4 "AA" batteries (for transmitter) |
*With optional gearing and 3s LiPo battery (items sold separately)
**Battery expansion kit available |
|
| Speed: |
35+mph |
40+mph |
40+mph |
45+mph |
60+mph |
| Pinion/Spur: |
13/54* |
18/54** |
19/54 |
13/54* |
19/54 |
| Battery: |
7-Cell NiMH |
7-Cell NiMH |
2S LiPo |
3S LiPo |
3S LiPo |
| Nominal Voltage: |
8.4V |
8.4V |
7.4V |
11.1V |
11.1V |
| mAh: |
4000+ mAh |
4000+ mAh |
4000+ mAh |
5000+ mAh |
5000+ mAh |
| Skill Level: |
1 |
2 |
4 |
4 |
5 |
| *Stock Gearing **Included Optional Pinion |
|
| Input Voltage: |
|
NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC) |
| Case Size: |
|
39 mm x 55 mm x 33 mm |
| Weight: |
|
90 grams |
| Motor Limit (Brushless): |
|
No motor limit |
| On Resistance Forward: |
|
0.00075 Ohms |
| On Resistance Reverse: |
|
0.00075 Ohms |
| BEC Voltage: |
|
6.0 V |
| BEC Current: |
|
2.5A |
| Power Wire: |
|
12-Gauge Maxx® Cable |
| Input Harness Wire: |
|
26 Gauge / 100 mm |
| Low Voltage Detection: |
|
2-stage indicators, switchable (on or off) |
| Thermal Protection: |
|
2-stage thermal shutdown |
| Profile selection: |
|
Sport Mode:
100% FWD, 100% BRAKES, 100% REV
Race Mode:
100% FWD, 100% BRAKES, NO REV
Training Mode:*
50% FWD, 100% BRAKES, 50% REV |
| Single-Button Setup: |
|
Yes, Traxxas EZ-Set®
|
| Battery Input Connector : |
|
Traxxas High-Current Connector |
| Motor Types : |
|
Brushless |
| Ports: |
|
RX input, auxiliary fan |
|
