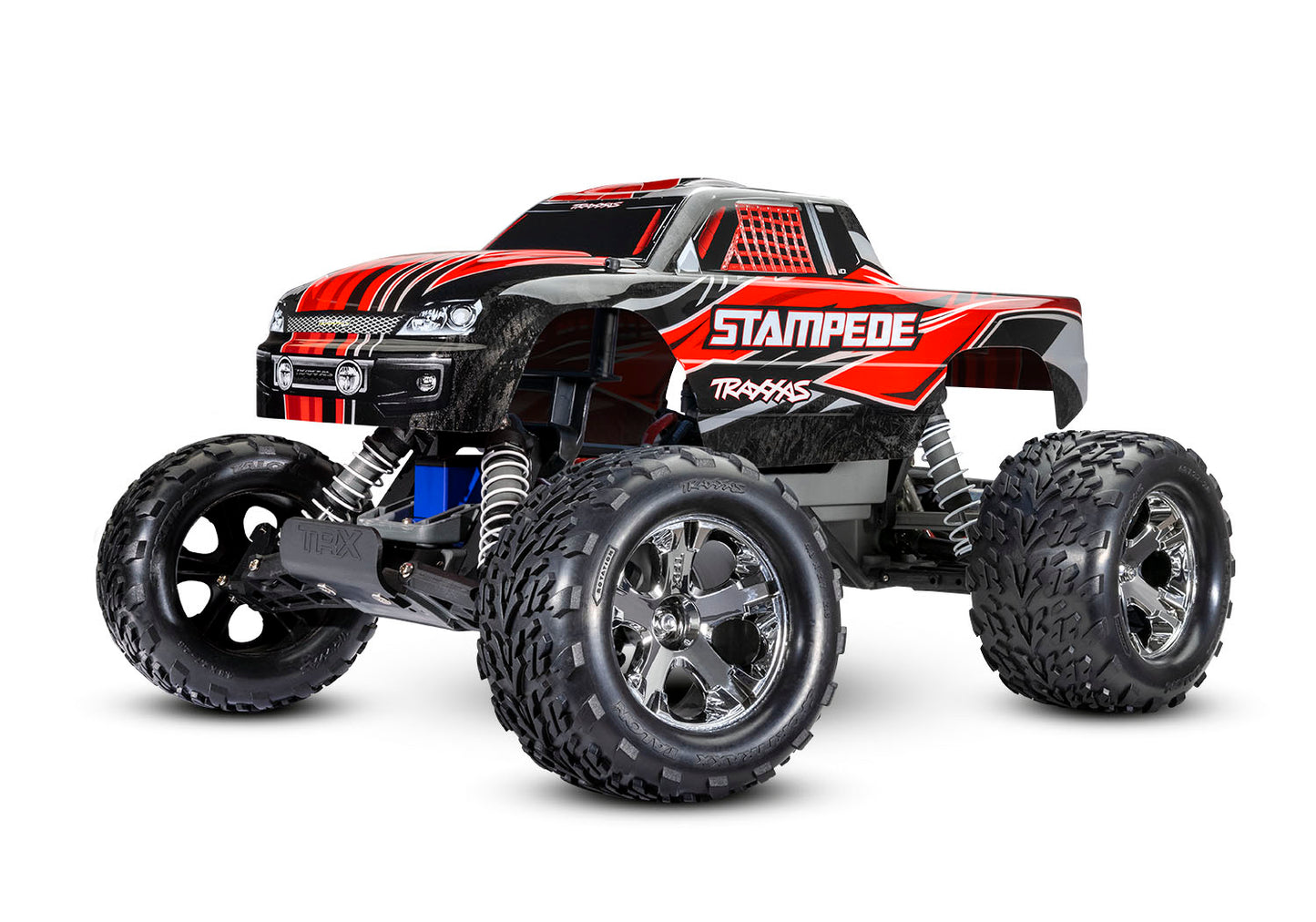

Traxxas Stampede 1/10 Monster Truck RTR

Traxxas Stampede^® XL-5^™
Rock-Crushing Torque—And Waterproof!

Stampede’s legendary ruggedness has made its name synonymous with off-road fun. With a top speed of 30+ mph* and drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Pour on the throttle and the Titan^® motor’s massive torque raises the front wheels skyward for dirt-roosting wheelies and high-power jumps. Mud, puddles, and snow don’t stand a chance against this high-octane monster truck thanks to Traxxas’ waterproof electronics. Add more excitement to your RC adventures with the quality and performance of the Traxxas Stampede.

Model Highlights

Modified Muscle
The Titan^® 12T 550 motor pumps out incredible power with an integrated cooling fan to keep temperatures down. The XL-5 electronic speed control provides smooth, reliable power delivery with EZ-Set^® one-button setup and three different drive profiles

Battery and Charger Included!
Stampede includes a powerful 8.4 volt 3000 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach its 30+ mph top speed. Fast 4-amp charging is available virtually anywhere thanks to the included 45+ watt USB-C battery charger with iD^® technology. Power adapter and cable sold separately. For maximum charge rate use Traxxas 45-watt power adapter and 100-watt power cable. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. There’s no guesswork involved, just fast, reliable charging every time.

100% Assembled and Ready-To-Race^®

Stampede comes Ready-To-Race^® out of the box with the TQ 2.4 GHz 2-channel radio system, waterproof XL-5 ESC, and included 8.4 V battery and charger. With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun.

MODEL 36054-8: Fully assembled, waterproof, Ready-To-Race^®, with TQ^™ 2.4 GHz radio system,
XL-5^™ electronic speed control, 8.4 V NiMH 3000 mAh Power Cell^™ battery, 4-amp USB-C fast charger, and ProGraphix^® painted body.

• With 7-cell battery and included optional 21-tooth pinion gear.

Titan^® 12-Turn 550 Motor

Stampede's powerful Titan 12T 550 motor is made for rock-crushing torque, lightning-quick acceleration, hardcore wheelies, explosive jumping, and just about any other 4-wheel fun that demands real horsepower. The Titan's oversize armature features 12 turns of pure copper wire for big torque and increased power-handling. The integrated cooling fan pulls cool air through the motor to keep temperatures down for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run.

XL-5^™ Waterproof Electronic Speed Control
The waterproof XL-5 electronic speed control handles the elements while smoothly supplying power to the motor. The XL-5 features three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode^™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

• Innovative watersealed design
• Three drive profiles
  • Sport Mode - forward / brake / reverse
  • Race Mode - forward / brake
  • Training Mode™ - 50% forward / brake / 50% reverse (patented)
• 12-turn motor limit for 550 size motors
• 15-turn motor limit for 540 size motors
• Traxxas EZ-Set^® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• High-efficiency MOSFET transistors

Traxxas 4-amp USB-C Fast Charger
Fast 4-amp charging is available virtually anywhere thanks to the included 45+ watt USB-C battery charger with iD^® technology. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. There’s no guesswork involved, just fast, reliable charging every time.

Traxxas Power Cell NiMH Battery with iD^®
The included iD-equipped 3000 mAh, 8.4 V, Power Cell NiMH battery delivers all the performance that's been engineered into your Traxxas model. Power Cell batteries deliver free-flowing power and maximum punch with premium quality construction. Optional Traxxas iD chargers (sold separately) auto-detect Traxxas iD Power Cell batteries and automatically set and optimize charge settings for unmatched charging safety and simplicity. For even greater speed and runtime, a full line of optional NiMH and LiPo batteries are available.

Traxxas High-Current Connector
The patented Traxxas High-Current Connectors funnel maximum power to your vehicle’s electronics. Traxxas High-Current Connectors let you get the quickest, safest charge for your battery so you can unleash the maximum power and runtime for your Traxxas vehicle.

Precision 2.4 GHz Control
Switch on the power and drive! That's all there is to it with the TQ^™ 2.4 GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

Waterproof Receiver Box
Stampede's patented sealed receiver box gives you the freedom to drive where you want, when you want. The antenna and servo wires route neatly through a special water-tight seal. A blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box.

3-Channel Micro Receiver with Fail-Safe Security
The TQ 2.4 GHz micro receiver uses an integrated LINK button for fast and easy binding. A two-color LED indicates power-on and bind status for fool-proof control and convenience. In the event of signal loss, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The fail safe programming is conveniently built-in and does not need to be set or activated.

High-Torque Waterproof Steering Servo
A monster truck needs a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the 2056 provides 80 oz-in of steering muscle.

Talon^™ 2.8” Pre-Glued Tires with Foam Inserts
The advanced Talon tire tread pattern provides excellent traction on almost any surface. The soft compound rubber hooks up for maximum acceleration and great grip on dirt, grass, pavement, and rocks.

The mirror-chrome All-Star™ wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.

Included Optional Pinion Gear
Stampede reaches its blistering 30+ mph top speed on-road using the optional 21-tooth pinion gear (included) and the 7-cell 8.4 V battery pack. Out of the box, the installed 16-tooth pinion gear is just right for all-around, wheelie-popping, off-road action.

ProGraphix^® Bodies
Stampede's fully trimmed and painted ProGraphix bodies turn heads everywhere they go with an aggressive look and bold paint designs. Decals come pre-applied to save you time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the hottest looking bodies around and are only available on Traxxas Ready-to-Race^® models.

Torque-Control^™ Slipper Clutch
The Torque-Control slipper clutch uses special semi-metallic friction pads and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, run after run. Spur gears remove and replace easily without altering the slipper adjustment.

Telescoping Driveshafts
Stampede's telescoping slider driveshafts are extremely durable and allow greater articulation for increased suspension travel.

Oil-Filled Ultra Shocks^™
Stampede's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and silky-smooth performance. They are easy to customize with a wide range of high-performance oils, springs, and pistons available. Features include pressure bladders for air/oil separation and spring clips to change precisely the ride height and spring pre-load tension. If their performance ever fades, refresh them in minutes with our inexpensive rebuild kits.

Powder Coated White Springs
Stampede's springs feature a new spring rate for more responsive handling and the long-lasting white powder coated finish sets it apart from the pack.

Motor Mount with Cooling Channels
The sealed gearbox protects the transmission components from dirt and rocks. The molded motor plate includes finned cooling channels where the motor mounts to the motor plate. The cooling channels work in conjunction with the internal Titan 12T motor fan to pull air through the motor for superior cooling.

Brushless Ready Magnum 272^™ Transmission
Stampede's Magnum 272 transmission features metal gears riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power transfers quietly to the durable telescoping U-joint driveshafts. The sealed gearbox protects the transmission components from dirt and rocks. Best of all, the Magnum 272 is built Traxxas Tough™ to handle massive brushless power without the need for costly upgrades

Brushless-Ready Planetary Gear Differential
The planetary gear differential uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance and its efficient design puts maximum tire-shredding power to the wheels.

Monster 4” Ground Clearance
With 4-inches of center ground clearance, Stampede goes places other trucks can't! Stampede easily tackles real world obstacles such as tall grass, curbs, and rocks.
