Traxxas TRX-4 Ford F-150 Ranger XLT High Trail Edition
Traxxas TRX-4 Ford F-150 Ranger XLT High Trail Edition
Item No. TRA92046-4BLUE/BROWN/BLACK
REQUIRES BATTERY AND CHARGER

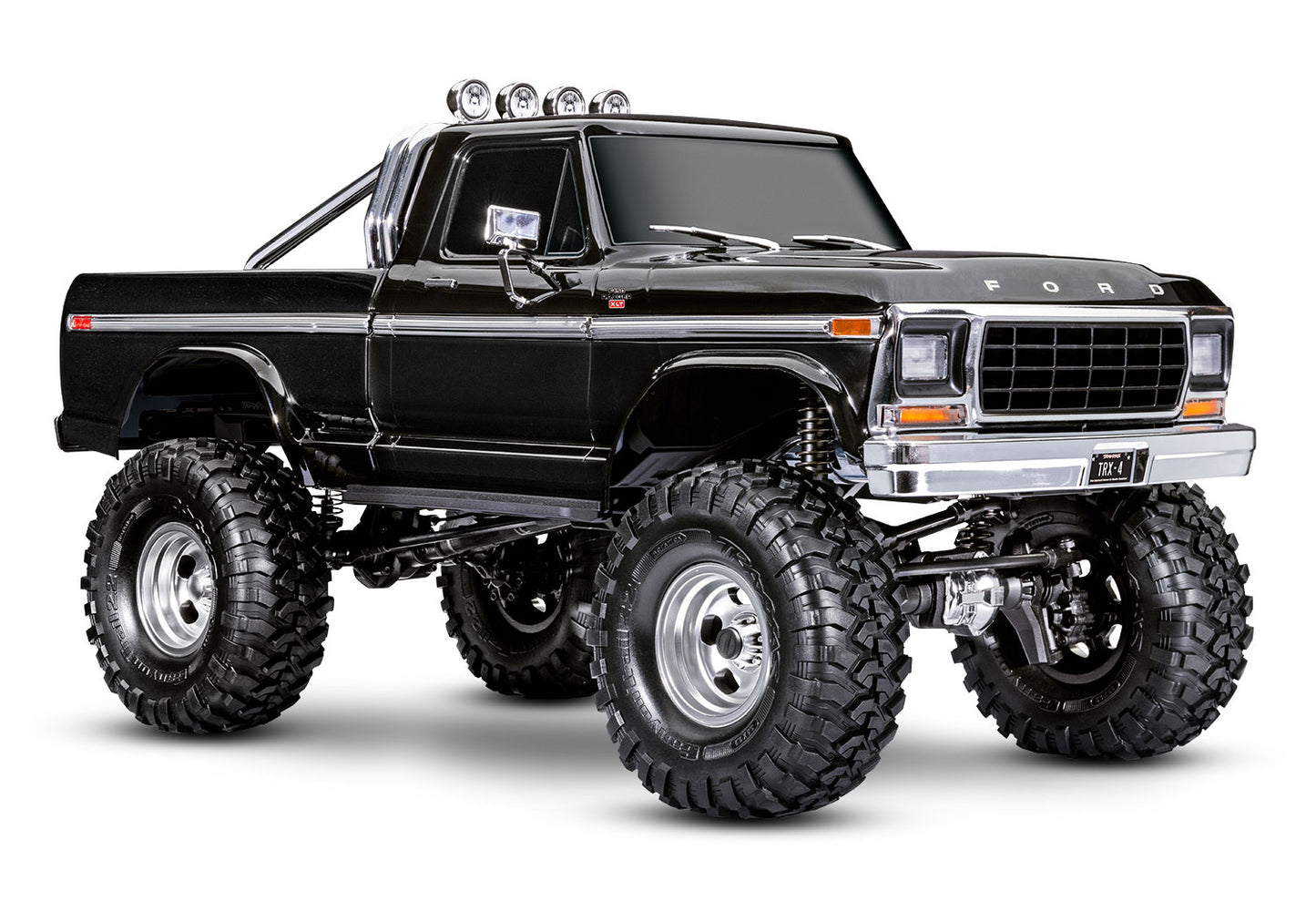

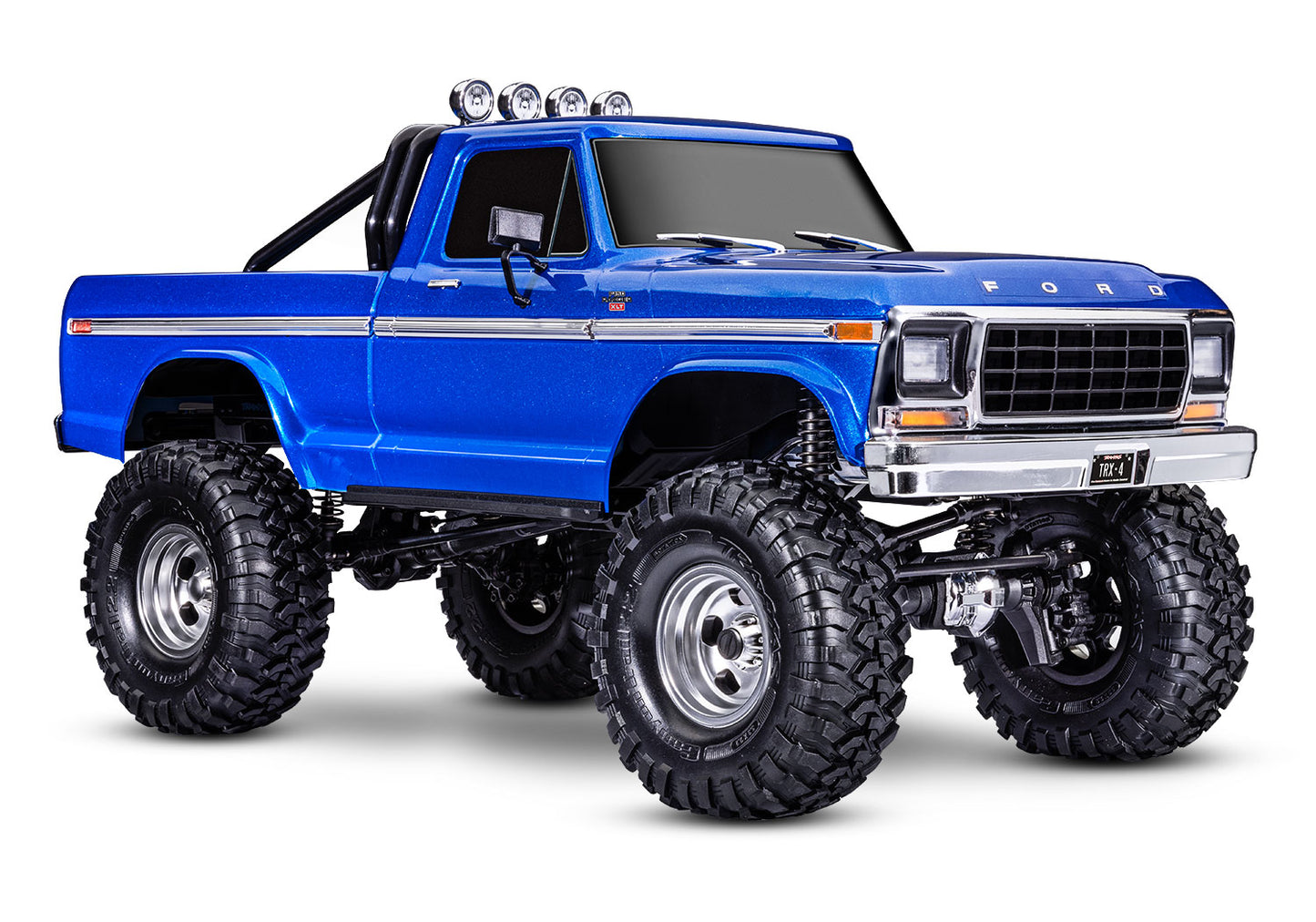

The Traxxas lineup of exciting and capable High Trail TRX-4® models is expanding with the all-new 1979 Ford® F-150® truck. Sporting top-of-the-line Ranger XLT trim, the Ford F-150 High Trail is equipped with a factory-installed Long Arm Lift Kit and stands over an inch taller than our standard height TRX-4. The exceptional all-terrain capability, smooth running drivetrain, and Traxxas Tough® durability drivers expect from TRX-4 are all there. Black roll bar, chrome light housings, longer wheelbase, and slotted aluminum-finish mags complete the authentic, period correct look.
High Trail Edition
Large 2.2″ slotted mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before. The factory-installed Long Arm Lift Kit raises F-150 High Trail™ Edition over an inch taller for superior ground clearance.
Extended 336mm Wheelbase

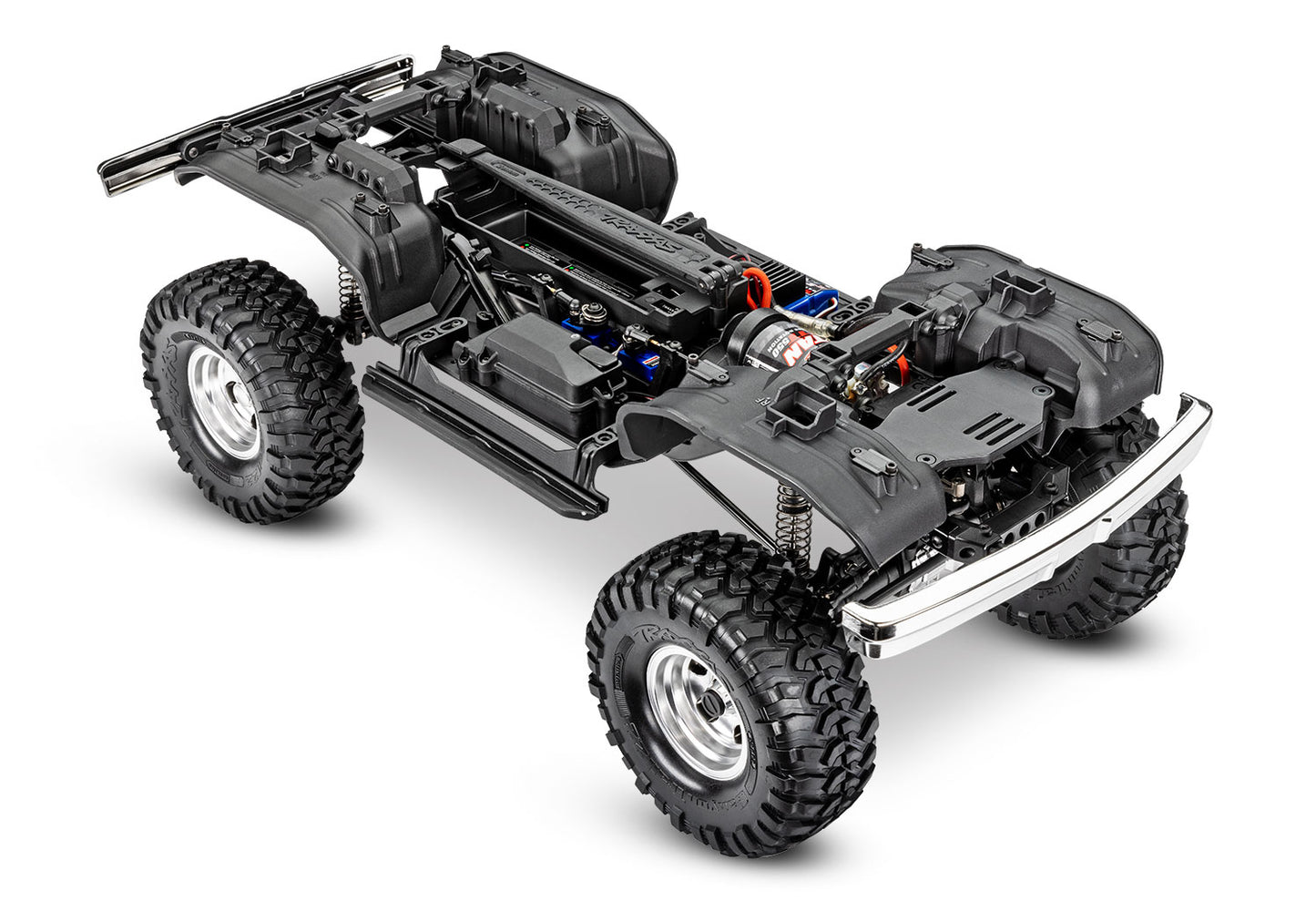

F-150’s extended steel ladder frame lengthens the wheelbase to 336 mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
Clipless Body Mounting
The clipless body’s hidden latching system gives F-150 High Trail Edition clean, flowing lines for new level of scale realism and convenience. On the trail, F-150’s clipless body holds tight when you need it, but releases in just seconds to access the chassis.
Length: | 22.30 inches (566 mm) |
---|---|
Front Track: | 10.60 inches (270 mm) |
Rear Track: | 10.60 inches (270 mm) |
Center Ground Clearance: | 4 inches (99 mm) |
Weight (w/o battery): | 7.34 pounds (3.33 kg) |
Height (overall): | 10.82 inches (275 mm) |
Wheelbase: | 13.23 inches (336 mm) |
Approach Angle: | 73.5° |
Departure Angle: | 49.67° |
Breakover Angle: | 67° |
Front Shock Length: | 4.33 inches (110 mm) |
Rear Shock Length: | 4.33 inches (110 mm) |
Front Wheels: | 2.2″ x 1.34″ (56 x 34 mm) |
Rear Wheels: | 2.2″ x 1.34″ (56 x 34 mm) |
Front Tires: | 5.3″ x 2.14″ (135 x 54 mm) |
Rear Tires: | 5.3″ x 2.14″ (135 x 54 mm) |
Hex Size: | 12 mm |
---|---|
Speed Control: | XL-5 HV |
Motor (electric): | 21T Reverse rotation |
Transmission: | 2-speed high/low, remote shifting |
Gear Pitch: | 32 pitch |
Differential Type: | 4 gear, remote locking |
Chassis Structure / Material: | Steel ladder frame with Nylon composite crossmembers |
Brake Type: | Electronic “Hill Hold” |
Drive System: | Shaft driven 4WD |
Steering: | Chassis mounted servo |
Servo: | 2075X metal gear |
Transmitter: | TQi™ 2.4 GHz 4-channel transmitter |
Receiver: | 6533 |
Skill Level: | 1 |
Battery Tray: | 159 L x 47 W x 23/2 6mm H |
