Traxxas X-Maxx VXL-8s Brushless Monster Truck Ready To Run
Traxxas X-Maxx VXL-8s Brushless Monster Truck Ready To Run
Item No. TRA77096-4BLUE/GREEN/ORANGE/RED
BATTERIES AND CHARGER REQUIRED
Size Wins
At the end of the day, size always wins. X-Maxx plows over obstacles and muscles through extreme terrain that leaves lesser trucks stranded. Mammoth 8-inch-tall tires, long-arm suspension, and huge ground clearance dwarf the surroundings for virtually unstoppable monster truck fun.
Extreme Power
At Traxxas, too much power is never enough! The durability of the VXL-8s™ is matched only by the sheer ferocity of its 8s 30+ volt LiPo muscle. The speed-tuned 1200XL Big Block motor propels X-Maxx with brutal authority and exacting quickness that warps your senses. No matter what you have driven in the past, nothing will prepare you for X-Maxx.
All-Metal Drivetrain
X-Maxx puts its massive power to the ground through an all-metal 8s driveline backed by the revolutionary Cush Drive® system, high-strength extruded aluminum center shaft, and our strongest steel driveshafts ever. The Torque-Biasing Center Drive improves driveline durability and drives huge steel 4-gear differentials.
Belted Tires
X-Maxx’s belted Sledgehammer tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

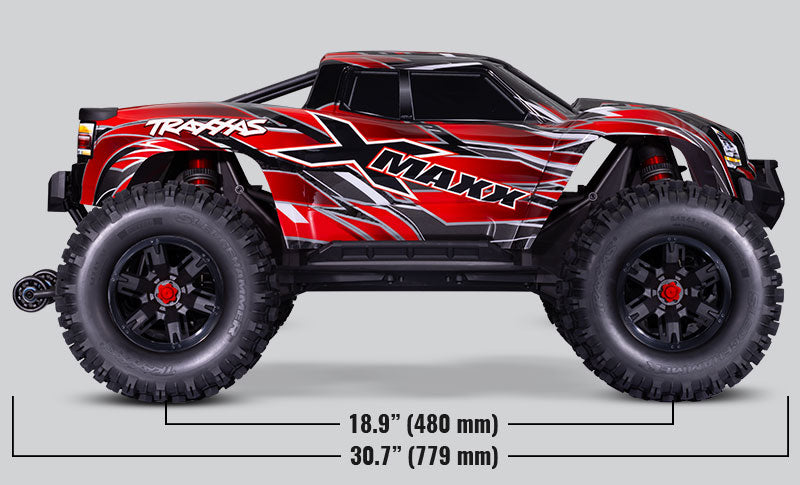

Length: | 30.67 inches (779 mm) |
---|---|

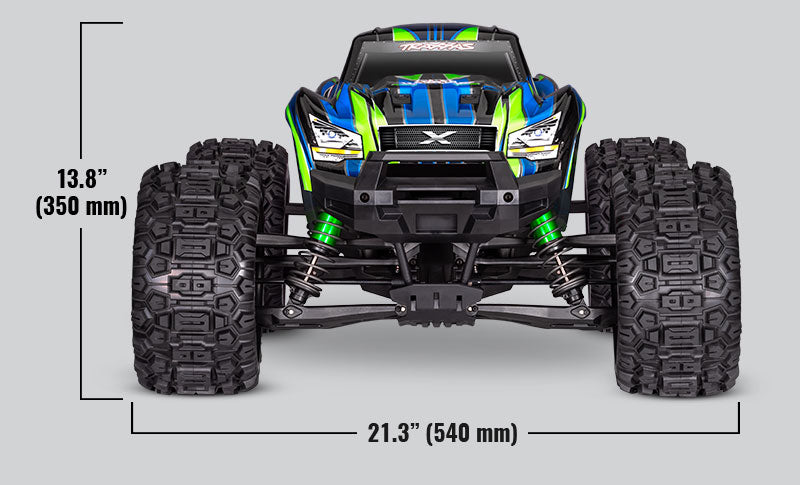

Front Track: | 21.3 inches (540 mm) |
Rear Track: | 21.3 inches (540 mm) |
Ground Clearance: | 4 inches (102 mm) |
Weight: | 19.1 pounds (8.66 kg) |
Height (ride): | 13.79 inches (350 mm) |
Wheelbase: | 18.92 inches (480 mm) |
Shock Length: | 7.4 inches (187 mm) |
Tires (pre-glued): | 8.0x4.0 inches (203 mm) |
Wheels: | 4.3x5.7 inches (110x145 mm) |
Wheel Hex Size: | 24 mm splined hex |
Speed Control: | Velineon® VXL-8s |
Motor (electric): | Velineon 1200XL |
Transmission: | Single-speed |
Overall Drive Ratio: | 8.11 (stock, out-of-box) |
---|---|
Differential Type: | Sealed, hardened steel bevel, limited slip |
Gear Pitch: | 1.0 pitch |
Chassis Structure/Material: | Composite Nylon tub |
Brake Type: | Electronic |
Drive System: | Shaft-driven 4WD |
Steering: | Bellcrank |
Radio System: | TQi™ 2.4 GHz Transmitter with TSM® receiver |
Servo: | Torque: 365 oz/in Speed: 0.17 sec/ 60° (6.0 V) |
Top Speed: | 50+ MPH with two 4s LiPo batteries and optional gearing |
Skill Level: | 6 |
Battery Tray: | 197 mm x 51.5 mm x 44 mm |
Required Batteries: |
4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2) |
What’s In The Box:
-
X-Maxx , Ready-To-Race model with Traxxas Big Block brushless motor - VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
IMPORTANT:
X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance. - 4s LiPo Completer Pack with iD®
The Traxxas Dual 4s Completer Pack is the perfect choice to extract maximum power from your X-Maxx. Two 6700 mAh 4-cell batteries and the Traxxas EZ-Peak® Live Dual charger are included for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
