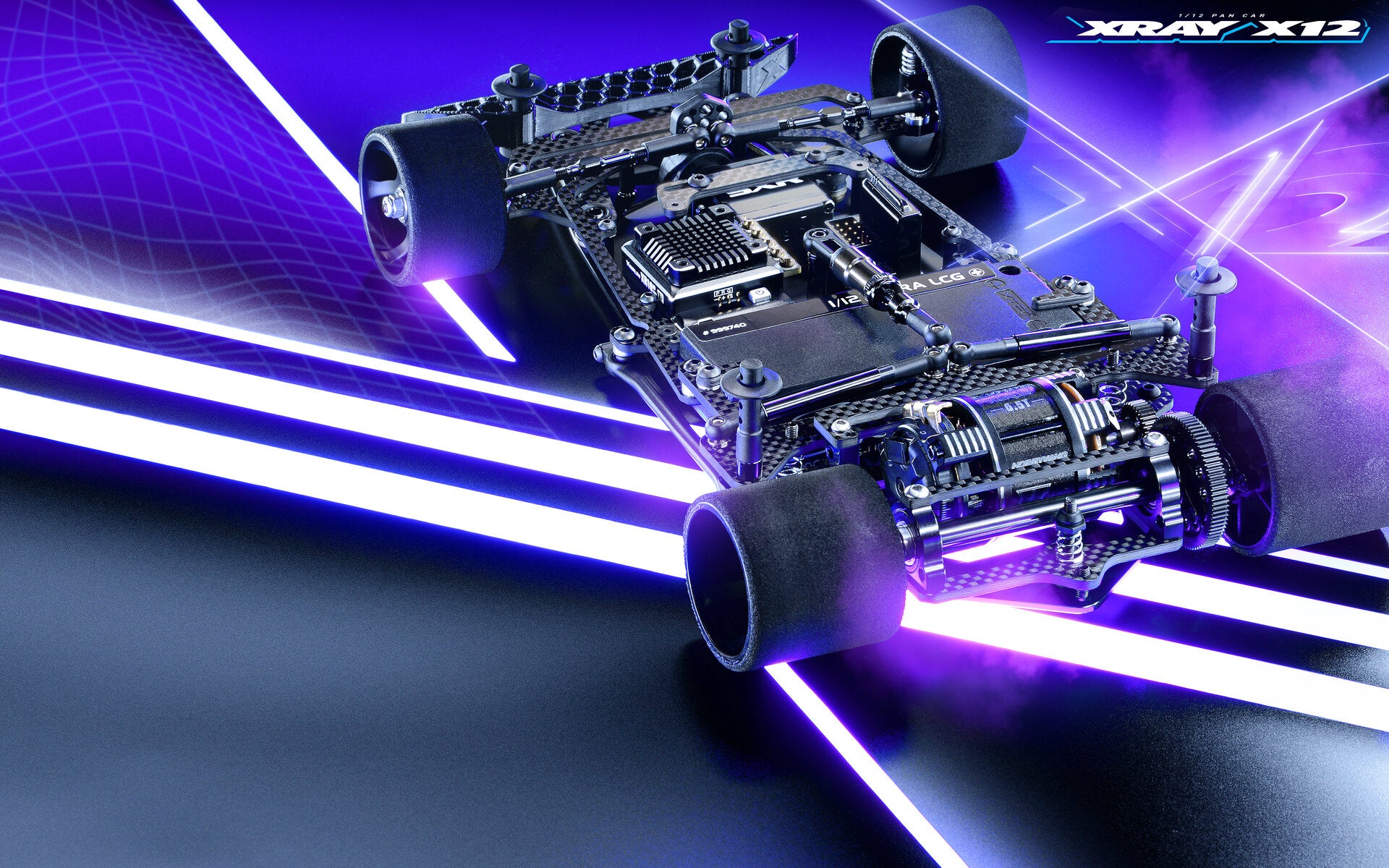

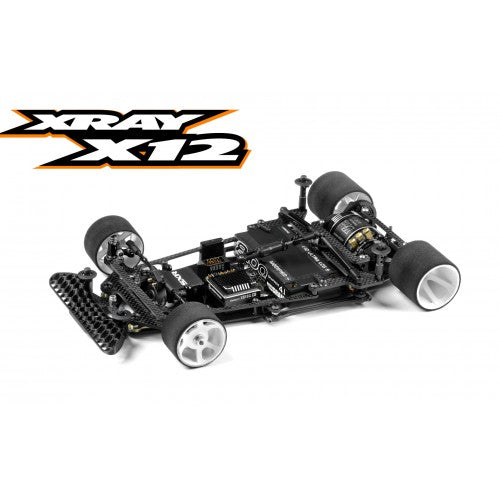

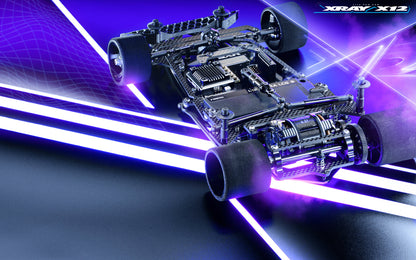

XRAY X12 2026 1/12 Electric On-Road Competition Pan Car Kit

Redefining precision and performance, the XRAY X12 2026 is a championship-ready 1/12 pan car engineered for ultimate balance, traction, and control. With a redesigned chassis, refined suspension, and advanced aerodynamics, it delivers razor-sharp handling and podium-worthy speed on any track.

About the X12'26

Redesigned Chassis

The XRAY X12 2026 features a completely redesigned chassis that reduces rear flex for improved stability and traction. Crafted from premium 2.0mm Swiss 7075 T6 aluminum, it integrates perfectly with the Tweak-Free Suspension and Pod System for maximum performance. Additional mounting holes allow for a floating servo setup and easier access to pod hardware, while beveled edges minimize drag and enhance cornering efficiency.

Refined Pod and Suspension

The updated rear pod assembly delivers superior handling balance and traction, featuring updated pod front plates and carbon side link plates with three precise alignment positions. This setup keeps the side link pivots perfectly in-line across all center pivot options, reducing suspension bind. The aluminum pivot holders allow for a lower roll center, enhancing grip and control on every surface.

Advanced Servo and Dampening

Offering both fixed and floating servo options, the X12 2026 enhances steering consistency and crash resistance. The updated floating servo holder minimizes steering drift while improving forgiveness in handling. An improved center damper eliminates oil leakage and smooths bump absorption, while the updated rear POD spring system replaces the center spring for increased adjustability and a lower center of gravity.

Optimized Drivetrain Efficiency

A redesigned front carbon bumper and thinner 1.6mm front brace boost both durability and steering response. The bumper’s IFMAR/EFRA-legal design maximizes body shell support and aerodynamic performance. Combined with a wider front lower arm—1mm per side—the X12 2026 delivers sharper cornering, enhanced stability, and consistent grip across a range of track conditions.

Lightweight Precision Engineering

Every component of the X12 2026 is optimized for performance and weight reduction. From hollow front kingpins and Teflon-lined aluminum steering blocks to the narrower rear wheel hubs and shorter steel solid axle, each update contributes to lower rotating mass and better throttle response. The result is a meticulously balanced pan car built for precision, speed, and championship-level control.

Features:

• Redesigned 2.0mm Swiss 7075 T6 aluminum chassis for improved stability
• Reduced rear flex for better traction and cornering control
• Updated rear pod assembly with enhanced balance and grip
• Adjustable carbon side link plates with three alignment positions
• Floating or fixed servo options for precise steering response
• Upgraded center damper for smoother, leak-free performance
• Updated rear POD spring system for better adjustability and lower CG
• IFMAR/EFRA-legal carbon front bumper for durability and aerodynamics
• Wider front lower arms and thinner front brace for sharper handling
• Lightweight components for reduced rotating mass and faster response

Includes:

• (1) X12 2026 1/12 Electric On-Road Competition Pan Car Kit
• Manual

Needed To Complete:

• (1) 540 Brushless Motor
• (1) Electronic Speed Control
• (1) Micro Servo
• (1) Shorty Battery & Compatible Battery Charger
• (1) 1/12 Pan Car Body
• (4) Tires and Wheels
• Tools For Assembly
